INSTALLATION AND STARTUP
1MANUL220 Belanger, Inc.® * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 14-9
Chapter 14 HydroBlade® Assembly Option
HydroBlade® Rinse / Sealer Wax Assembly
Installation

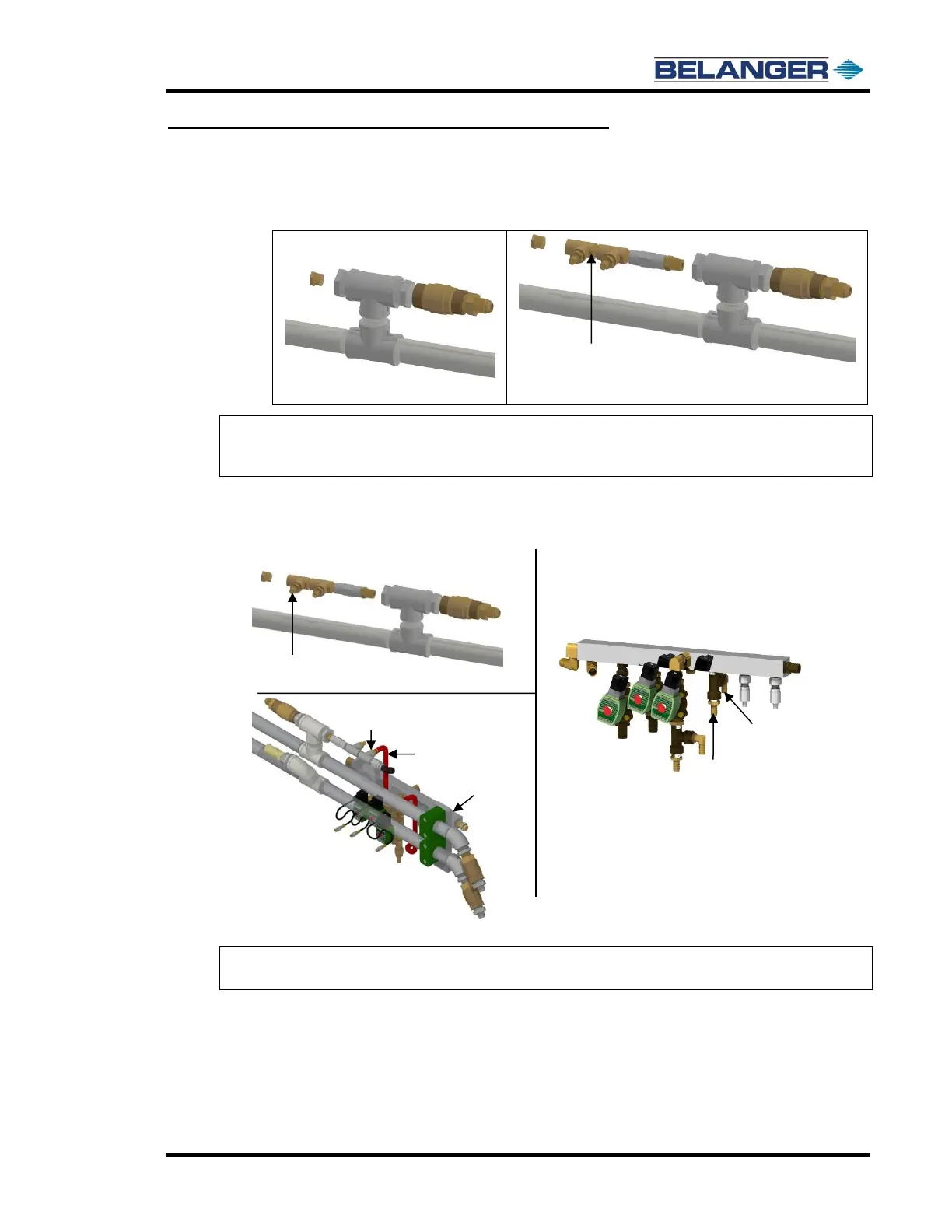

7) In the Accessory Box locate the HydroBlade® Low Pressure Feed Kit and install it as shown below.
Install the HydroBlade® Low Pressure Feed Kit as shown and
place the previously removed Brass Plug in the end
Note: The HydroBlade® Low Pressure Feed Kit Assembly and the HydroBlade® Feed Assembly
are both located near the center of the carriage just above the Universal Manifold. Step 8
involves the upper manifold, the HydroBlade® Low Pressure Feed Assembly.
8) Place two field supplied 1/2” ear clamps on a length of blue water hose
Run the hose from the outer most brass fitting in the HydroBlade® Low Pressure Feed Kit to the straight
fitting that is in the tee on the Universal Manifold. See the images below.
9) Crimp both clamps once the hose has been cut to the proper length and secured into place.
Note: Be sure that the hose is not positioned in a way that it will be cut or crimped by the machines
operating motion.
10) Remove the brass elbow from the brass tee on the Universal Manifold and replace it with a field supplied 1/2”
plug. See the image above in Step 8.
11) Shut the exit Utility Cover.
Power up the machine.
Run a test wash to verify that there are no leaks and that all connections are tight.
See Nozzle Chart later in this chapter for more details.
