Chapter 4 Frame and Carriage Assembly
Installing the Optional Freestanding Boom Mount Leg

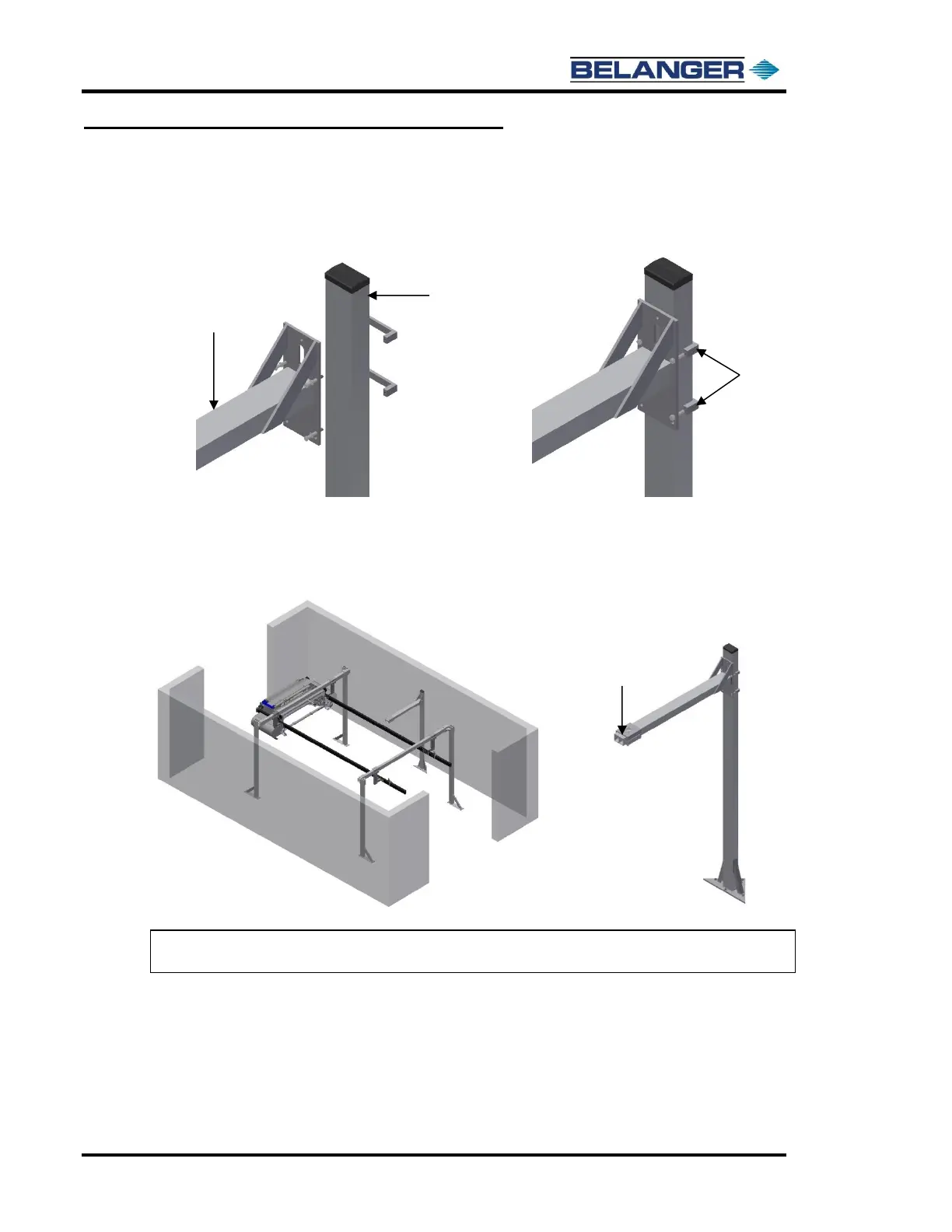

5) Clamp the Boom Mount Assembly to the fork-lift and raise it into position. Line up the bottom
of the detail plate with the height mark and center the Boom Mount Assembly on the
Freestanding Mount Leg, as shown below.
6) Secure the Boom Mount Assembly into position on the Freestanding Mount Leg using the
supplied Clamp Mount Brackets and fasteners as shown in the above images.
7) Take the Boom Mount Clamp and secure it 2” from the outer edge of the Boom Mount as
shown below.
Note: From the outer edge of the rail to the edge of the Boom Mount Clamp should measure 2”.
If the distance is not 2”, adjust the Clamp as necessary.
