Chapter 11 Bug Spray Applicator Option
Bug Spray Applicator Option
Note: The E-1063 programming procedure can be found at the end of this section.
Overview
The new Bug Spray Applicator was designed for the FreeStyler® product line. When a vehicle
enters the wash and stops, the Bug Spray Applicator will spray an even coat of chemical on the
front of the vehicle and windshield. The amount of chemical and length of application time is user
selectable. This option can be applied to any or all packages. The bug spray is programmed as
one of the three entrance operations in the E-1063. See the entrance operation section in the
Programming Manual for details.
Note: This application uses city water pressure.

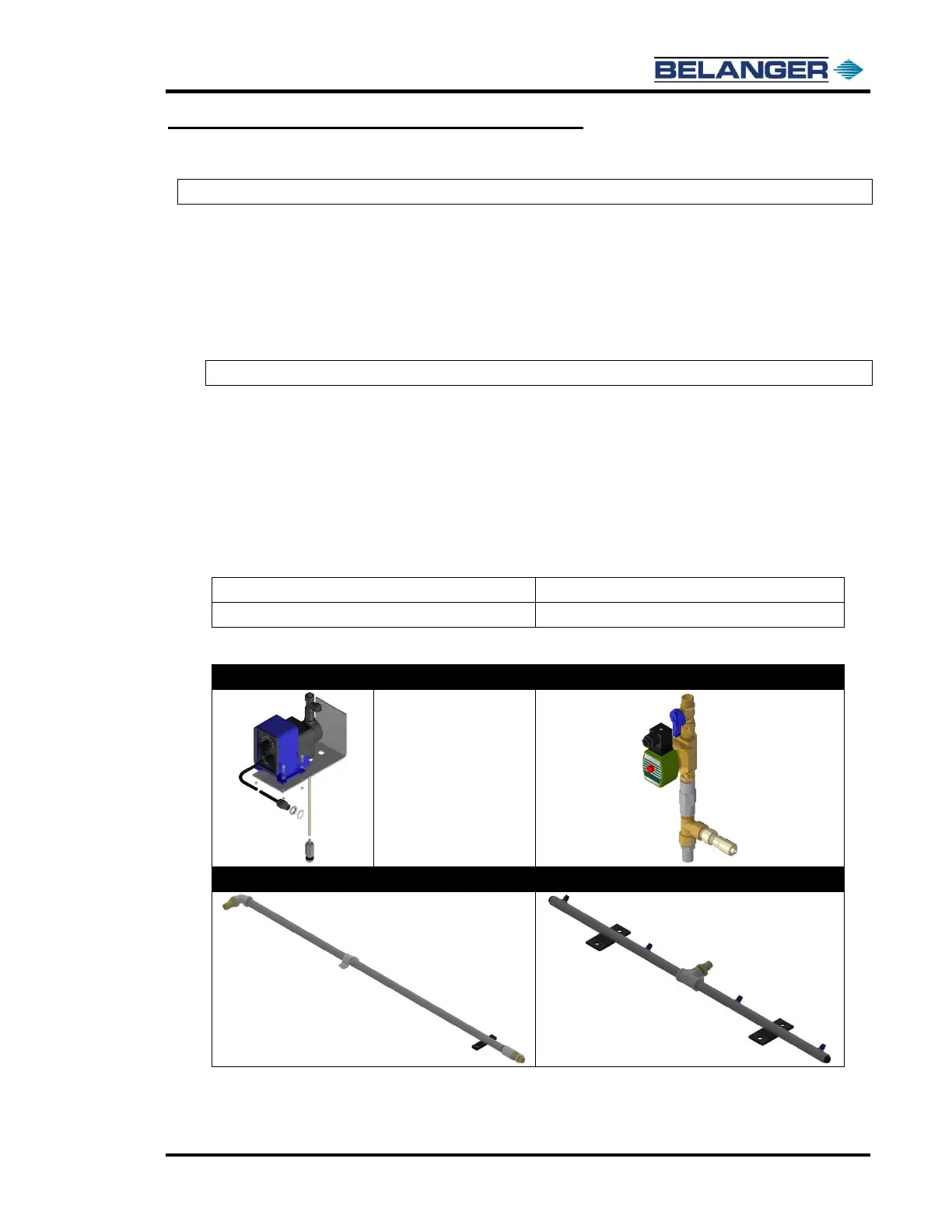

The wall mounted chemical pump is the same type (Pulsatron™, shown below) as the ones used
in the chemical delivery system for drying agent, wax and triple foam. Supply water is connected
to the ball valve assembly and the chemical pump connected to the injector. The discharge line
from the ball valve then has a mix of water and bug spray chemical. The discharge line is
connected with a 3/4” water hose to the cross-over tube. The cross-over tube is then connected
to the spray manifold in front of the vehicle. The supplied stainless-steel tube is to be mounted
onto the bay floor either in a trough cut into the cement or on the surface of the cement in the area
where the vehicle will drive.
Utility Requirements
