Belanger FreeStyler - Model 213 S OD; WA and WB Connections

INSTALLATION AND STARTUP
13-4 Belanger, Inc. ®* PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL220
Chapter 13 Water Softener Option
Water Softener Installation CP 213
Bypass Valve System: At the minimum, a 2” floor drain is required. The Inlet/Outlet header
system should remain the same size as the existing line(s).

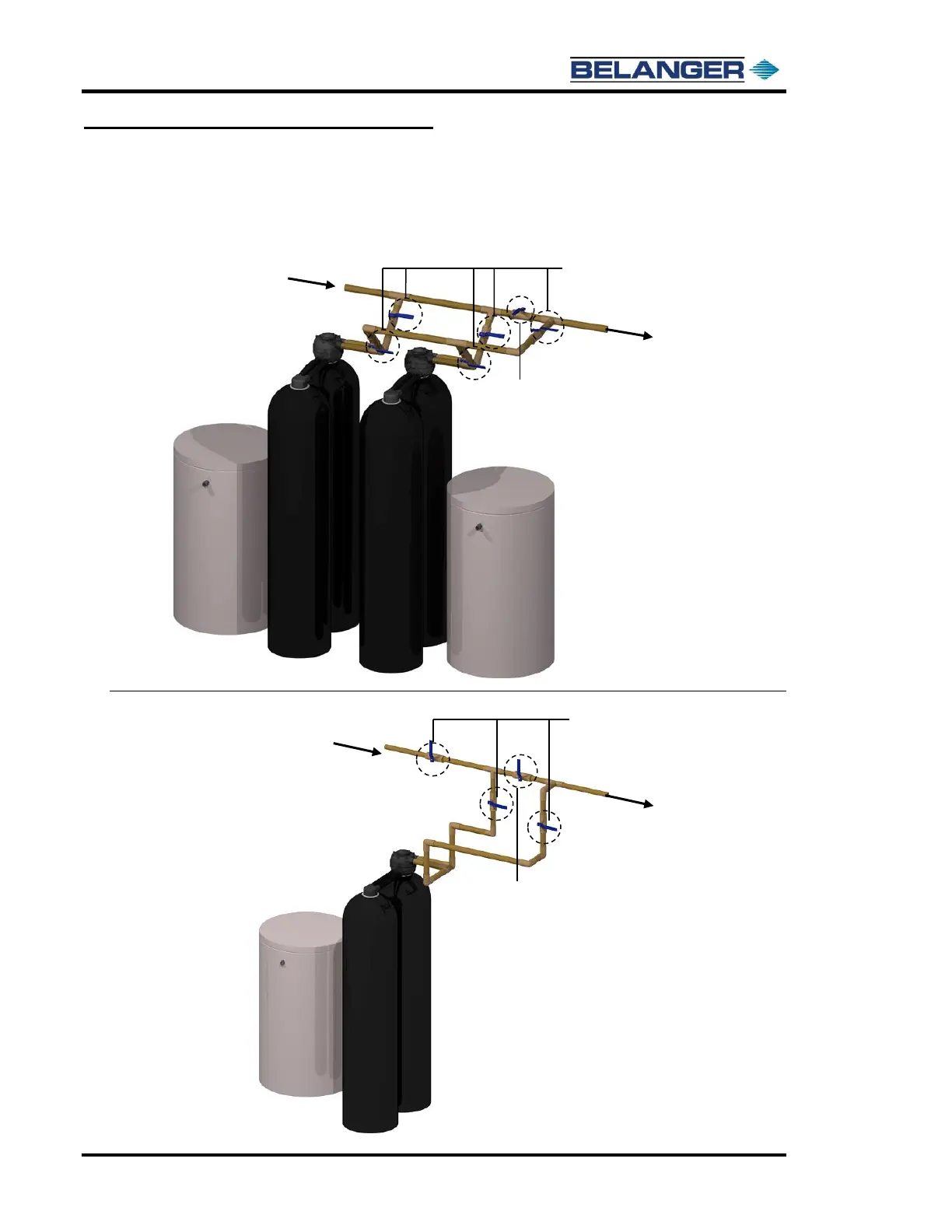

Model 213S OD / WB
Model 213S OD / WA
Non-softened water in
These lines are to be 1-1/4” or 1-1/2”.
All copper tubing.
Non-softened water in
This line MUST be 2” @ 40PSI or less.
It can be 1-1/2” @ 40PSI or greater.
The other lines are as follows:
• WB, 1-1/4” or 1-1/2” copper tubing.
Softened water
out
Five field supplied Shutoff Valves
(normally open, close to bypass system)
One field supplied Shutoff Valve
(normally closed
, open to
bypass system)
One field supplied Shutoff Valve
(normally closed, open to
bypass system)
Three field supplied Shutoff
Valves (normally open,
close to bypass system)
Softened water
out
