INSTALLATION AND STARTUP

1MANUL220 Belanger, Inc.® * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 14-17

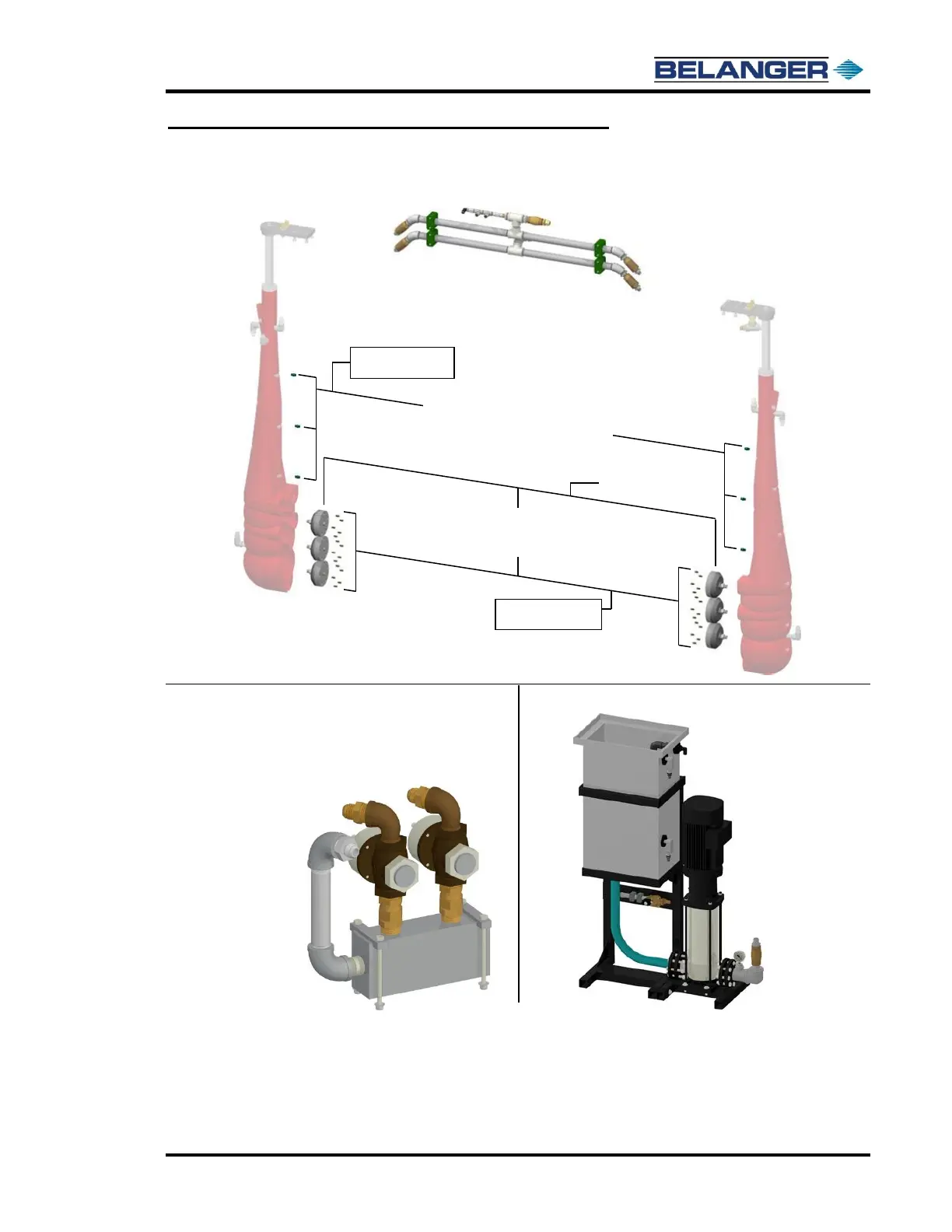

Chapter 14 HydroBlade® Assembly Option

Nozzle Kits / Nozzle Chart

Wheel Stinger® / HydroBlade® for 10HP Medium-Pressure

Wheel Stinger® /

HydroBlade® Lexair™

Assembly: 108479

10HP Wheel Cleaner

Pumping Platform

Assembly

Nozzle kit Number: NOZZL105980 for 10HP

Medium-Pressure Wheel Stinger® Nozzle Kit

and six Hockey Pucks Assemblies

Nozzle kit Number: NOZZL105983 for

10HP Medium-Pressure HydroBlade®

1NOZZL-MG349 (6)

TIP: MEG 4015

1NOZZL-MG200 (30)

TIP: MEG 0505

HP Puck Assembly:

108502 (6)
