INSTALLATION AND STARTUP

22-2 Belanger, Inc.® * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL220

Chapter 22 Initial Startup

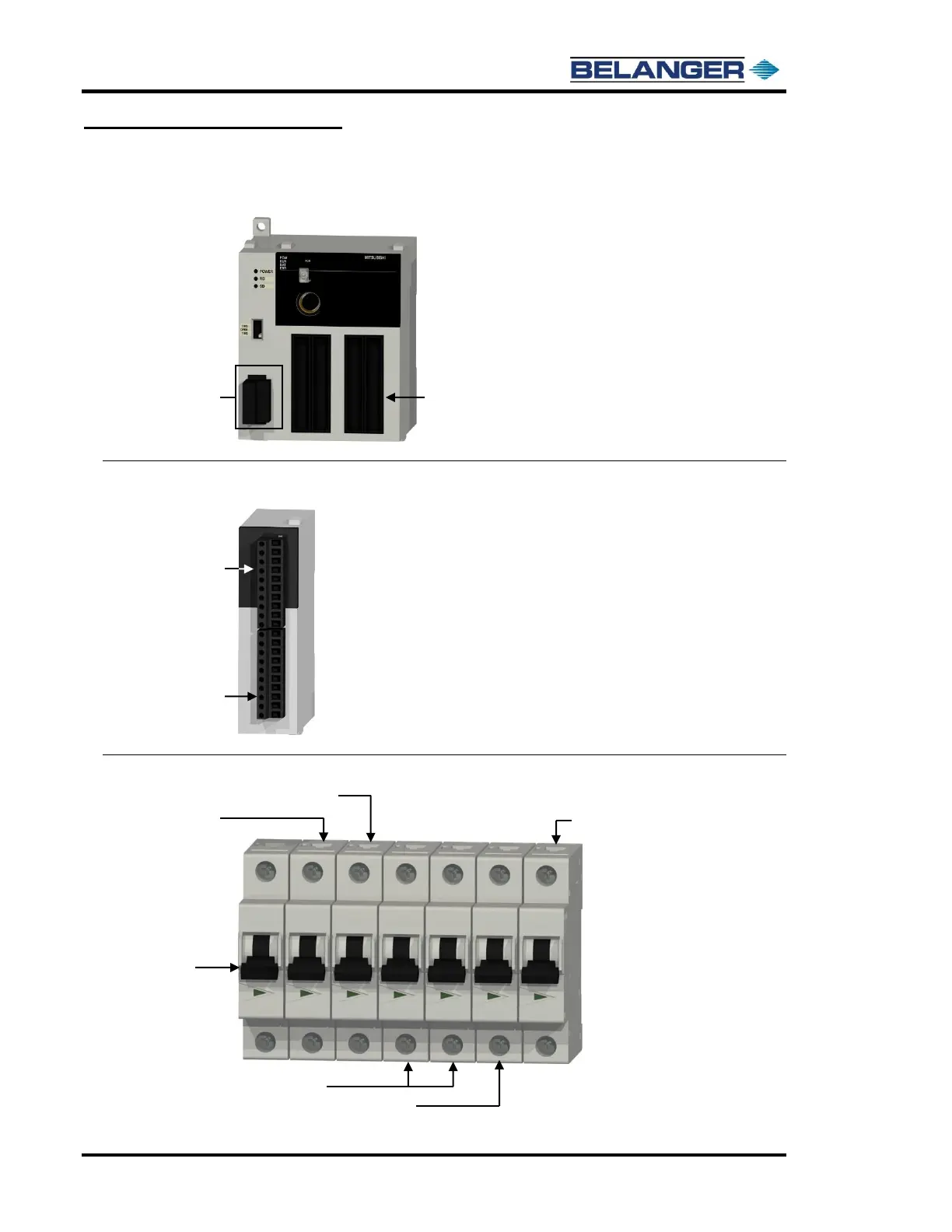

Overview of SCC Components

PLC (Programmable Logic Computer)

Expansion Module

Circuit Breakers

Drive Communication

Module

Expansion Input

24VDC Output: 3A

24VDC Power Supply Module: 2A

Modem Transformer (Primary): 1A

PLC: 0.5A

Modem Transformer (Secondary): 1A

Main 120 VAC Power Supply: 20A

Expansion Output

Door Control
