INSTALLATION AND STARTUP
1MANUL220 Belanger, Inc.® * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 3-9
Chapter 3 Getting Started
Installation Overview
Length Considerations

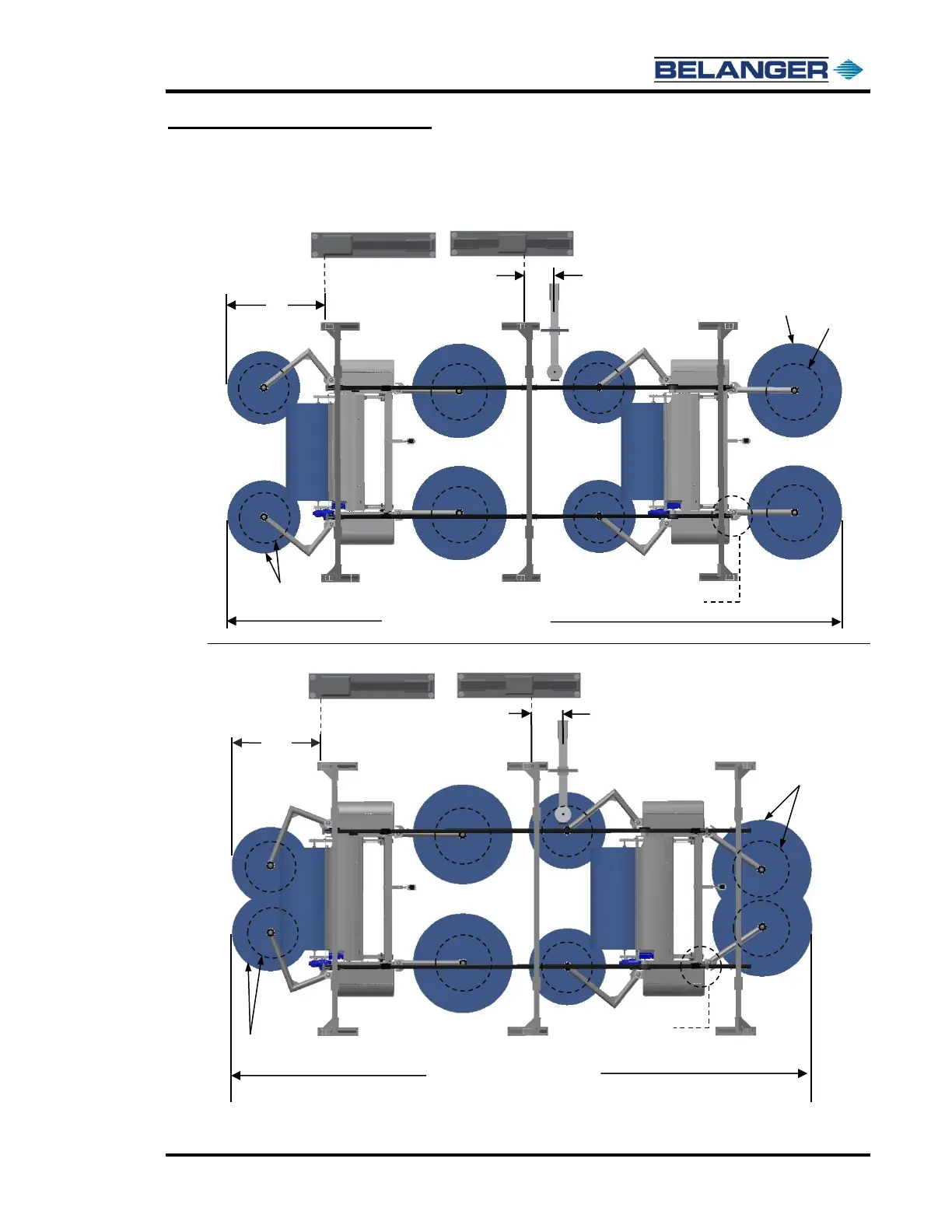

Square 6-Legged Frame: Configuration #1 Standard Bay Length (37’-0” bay)
Square 6-Legged Frame: Configuration #1 Small Bay Length (34’-6” bay)
See Second Configuration on the Next Page
22-1/8”
19’ – 3 Vehicle Conditions:
Small Bay Software (34’-6”)
66”
Position of Positive Stop
Clamps will be determined
by the bay length
The 66” dimension is taken
from the exit edge of the leg
The 22-1/8” dimension is
taken from center of Boom
Mount to the entrance edge
of the center leg
Machine
Entrance
Position
Machine
Exit
Position
19’ – 3” Vehicle Conditions:
Small Bay Software (32’-0”)
Wheels begin spinning in this position
Machine
Entrance
Position
Machine
Exit
Position
The 52” dimension is taken
from the exit edge of the leg
22-1/8”
The 22-1/8” dimension is
taken from the same location
as the above image
70” Diameter
when Spinning
45” Diameter
when Spinning
52”
Positive Stop Clamps
Moved In 30”
54” & 39” Diameter
when Spinning
See top image for diameter of
wheels when spinning
See top image for diameter of
wheels when spinning
