BONFIGLIOLI Agile User Manual

Commissioning

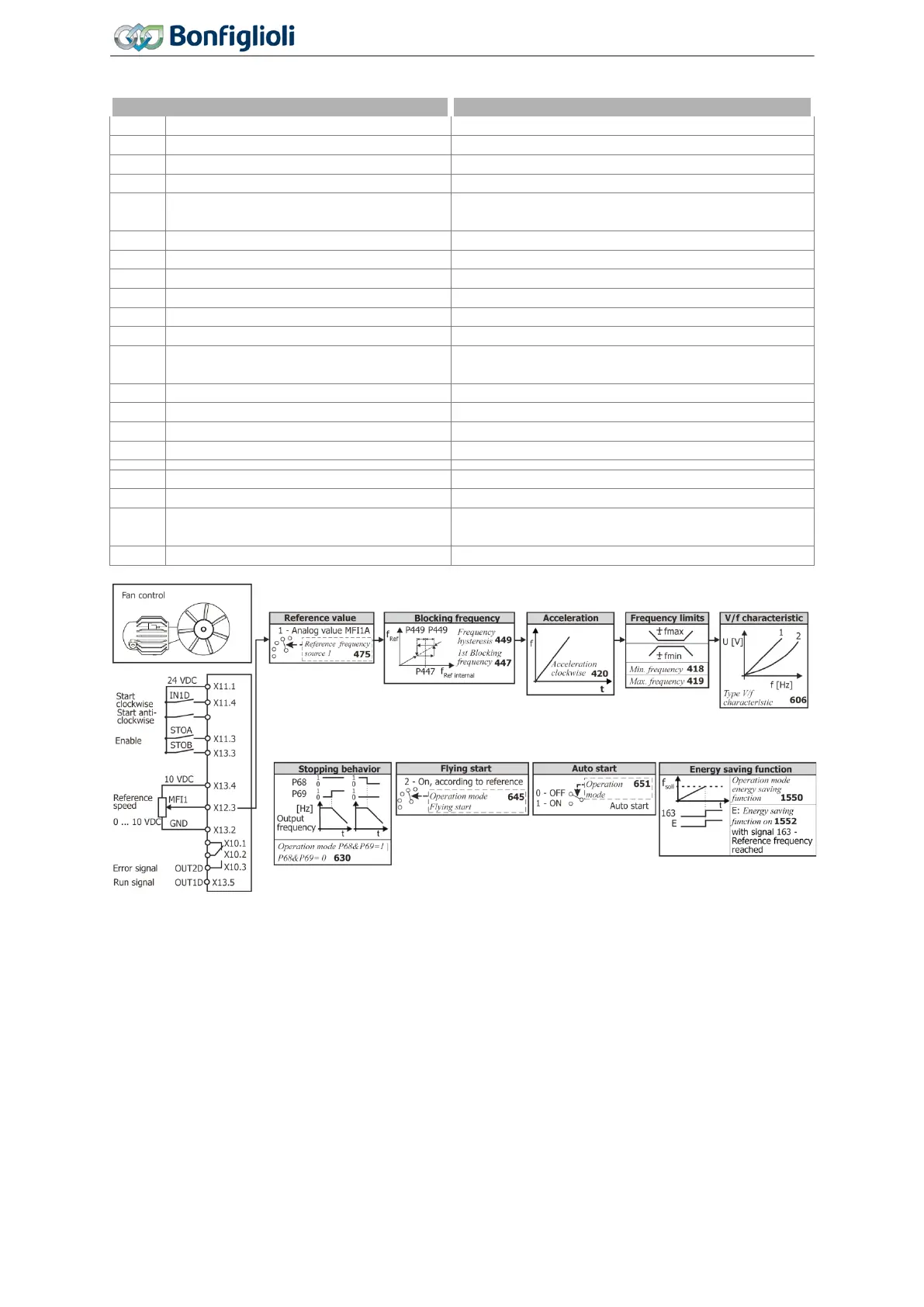

6.7.2 Fan
Parameters
Recommenced setting
30
Configuration
110 IM: sensorless control (V/f characteristic)
68
Start Clockwise
71 - IN1D
421
Deceleration (clockwise)
-0.01 Hz
492
Reference frequency source 2
0 - Zero
493
Operation mode (reference frequency
source)
1 - (+/- reference)
418
Minimum frequency
10 Hz
419
Maximum frequency
53 Hz
420
Acceleration (clockwise)
50 Hz/s
447
1st Blocking frequency
0 Hz
475
Reference frequency source 1
1 - Analog Value MFI1A
606
Type V/f characteristic
2 - quadratic
630
Operation mode (P68&P69=1
|P68&P69=0) (stopping behavior)
0 - (Coast to Stop | Coast to Stop)
645
Operation mode Flying Start
2 - On, according to reference
651
Operation mode (auto start)
0 - Off
1550
Operation mode energy saving function
2 - Automatic
1552
Energy saving function on
163 - Reference Frequency reached
68
Start Clockwise
71 - IN1D
69
Start Anticlockwise
7 - Off
531
Operation mode OUT1D (X13.5) (digital
output)
2 - Run signal
532
Operation mode OUT2D (X10/relay)
103 - Inv. error signal
100
Operating Instructions
Agile 06/2013 Applications
