Options
12.6 Communication module
Further communications modules are listed in chapter 3.1 “Inverter type and warning signs on the
device”. The VABus protocol is used for communication with the PC software VPlus for parameter
settings, monitoring and diagnosis.
Installation and commissioning of a communication module are described in the separate instruction
manuals of the communication protocols.
12.7 USB adaptor
Via an optional USB adaptor the communication interface X21 can be connected to the USB interface
of a PC. It enables parameter settings, monitoring and diagnosis via PC software VPlus.
12.8 Resource pack
The frequency inverter can be extended by an optional resource pack (memory card).
Resource pack
− Capacity = 2 GB
− SPI protocol
− Parameter copy function
− Integrated documentation
Parameter values of a frequency inverter can be saved on standard digital memory cards and upload-
ed on another frequency inverter. Refer to chapter 7.10.11 “Copy parameters”.
Note:
To use the copy function, use the Resource pack offered by Bonfiglioli Vectron.
Bonfiglioli Vectron doesn’t take any responsibility for the malfunctioning of the memory cards of other
manufacturers.

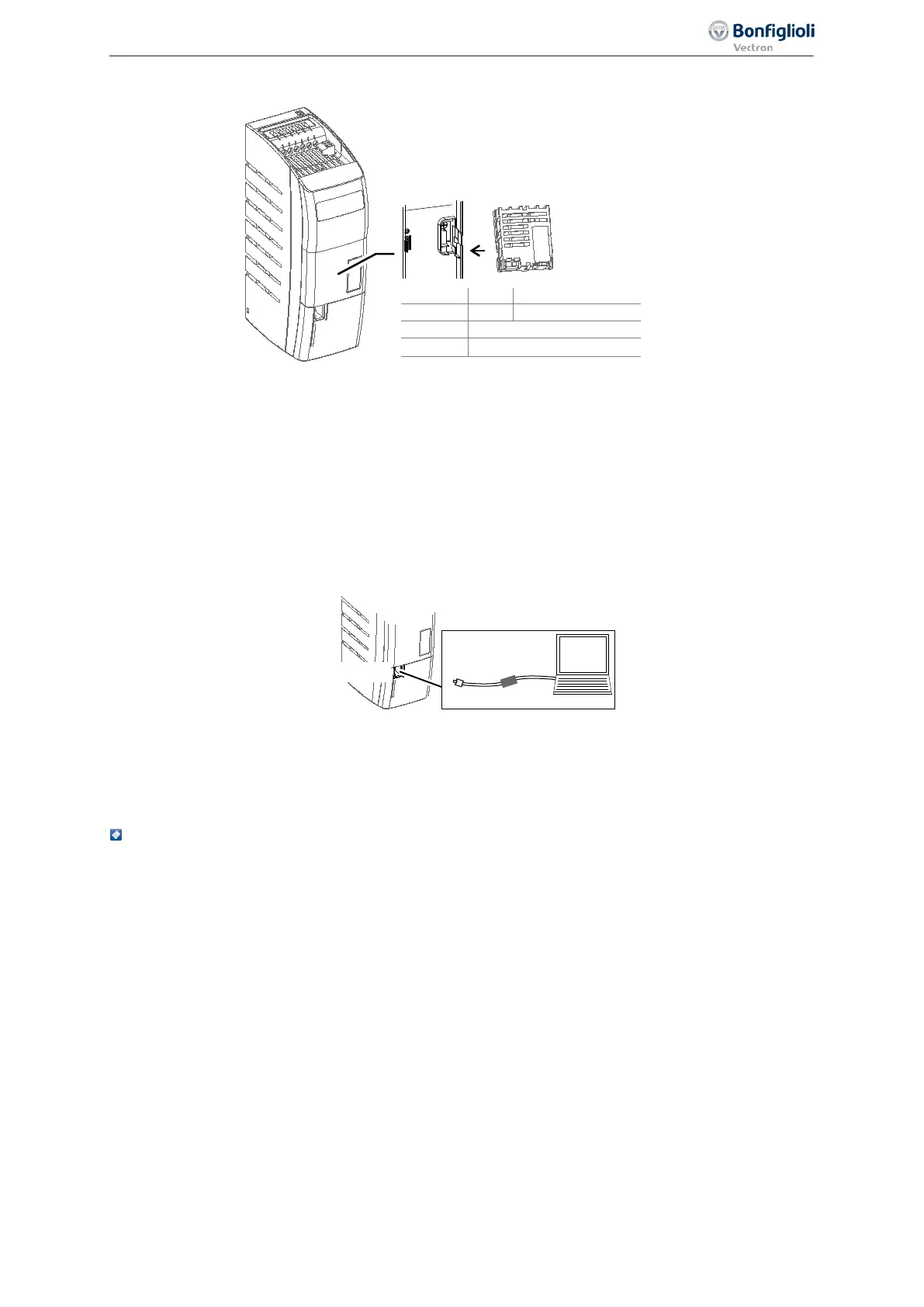

Option slot for communication module (CM)
CM-232
CM-485
CM-PDPV1
CM-CAN
RS232 VABus or Modbus
RS485
Profibus DP-V1
CANopen
VABus or Modbus
or system bus
X21 (RJ45)
VPlus
USB
RJ45
Adaptor
307
Communication module 06/2013 Operating Instructions
