BONFIGLIOLI Agile User Manual

Parameter descriptions

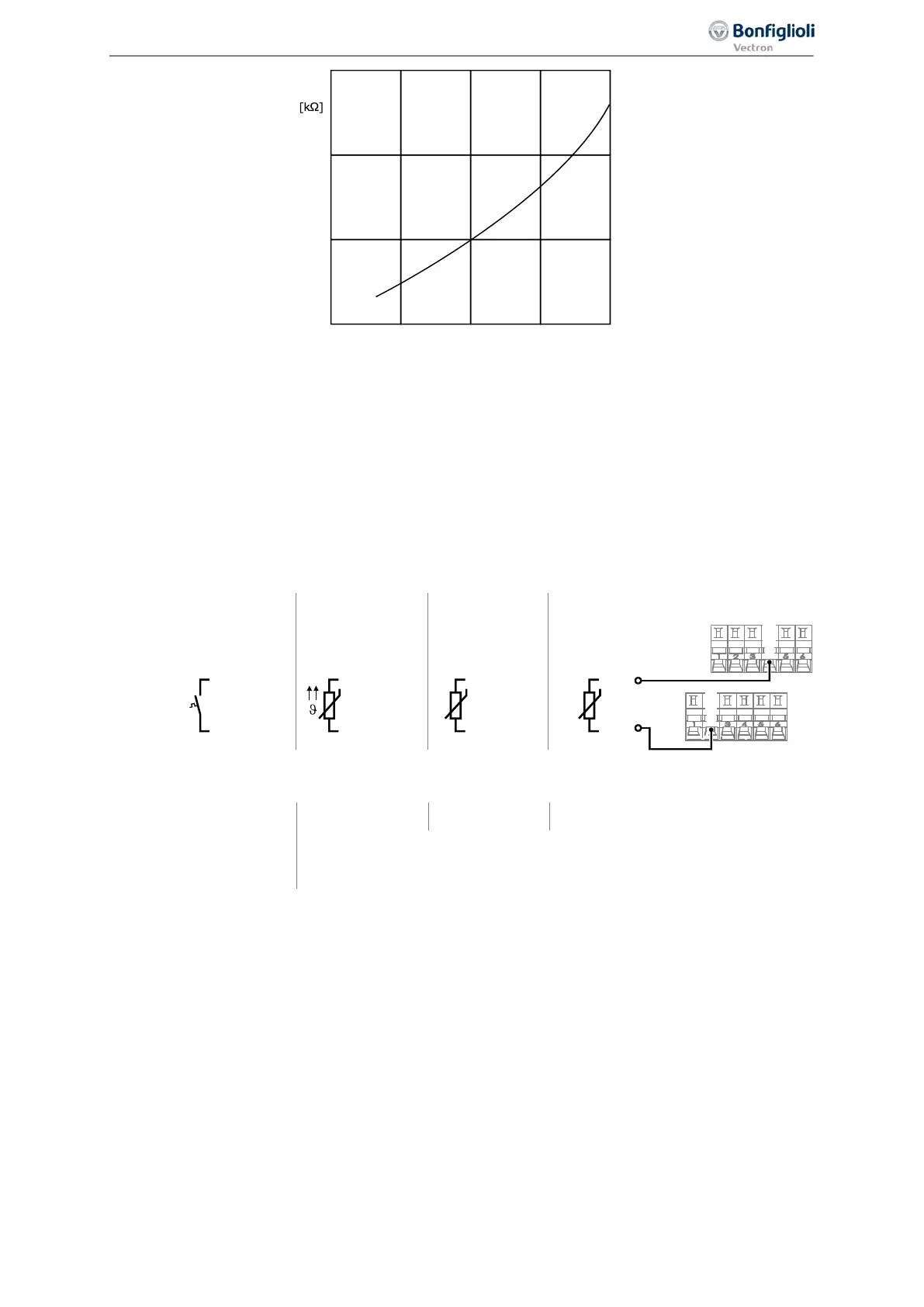

KTY resistance R depending on ambient temperature T
amb
Measuring resistor PT1000
Multifunction input 2 is designed for connection of a PT 1000 measuring resistor with the following
specifications:
Resistance:
1 kΩ at 0 °C ambient temperature
Measuring range:
-40 … 550 °C
Connection
Thermal contact
PTC
KTY
PT1000
Operation mode motor temp. 570 =
1, 2 or 3
11, 12 or 13
21, 22 or 23
31, 32 or 33
Thermal contact for
P570 204,=
532 - MFI2D (Hardware)
7.4.7 Phase failure
576 Phase Supervision
If a failure of one of the three motor or mains phases is not noticed, the frequency inverter, the motor
and the mechanical drive components may be damaged. In order to prevent these components from
being damaged, the phases are monitored for failure. Via parameter
Phase Supervision 576, the be-
havior in case of a phase failure can be set.
3
2
1
R
0
-100 0 100
200 300
T
amb
[°C]
4
2
MFI2
GND
X11
X12
T
T
141
Error and warning behavior 06/2013 Operating Instructions
