BONFIGLIOLI Agile User Manual

Options
12.4 Line choke

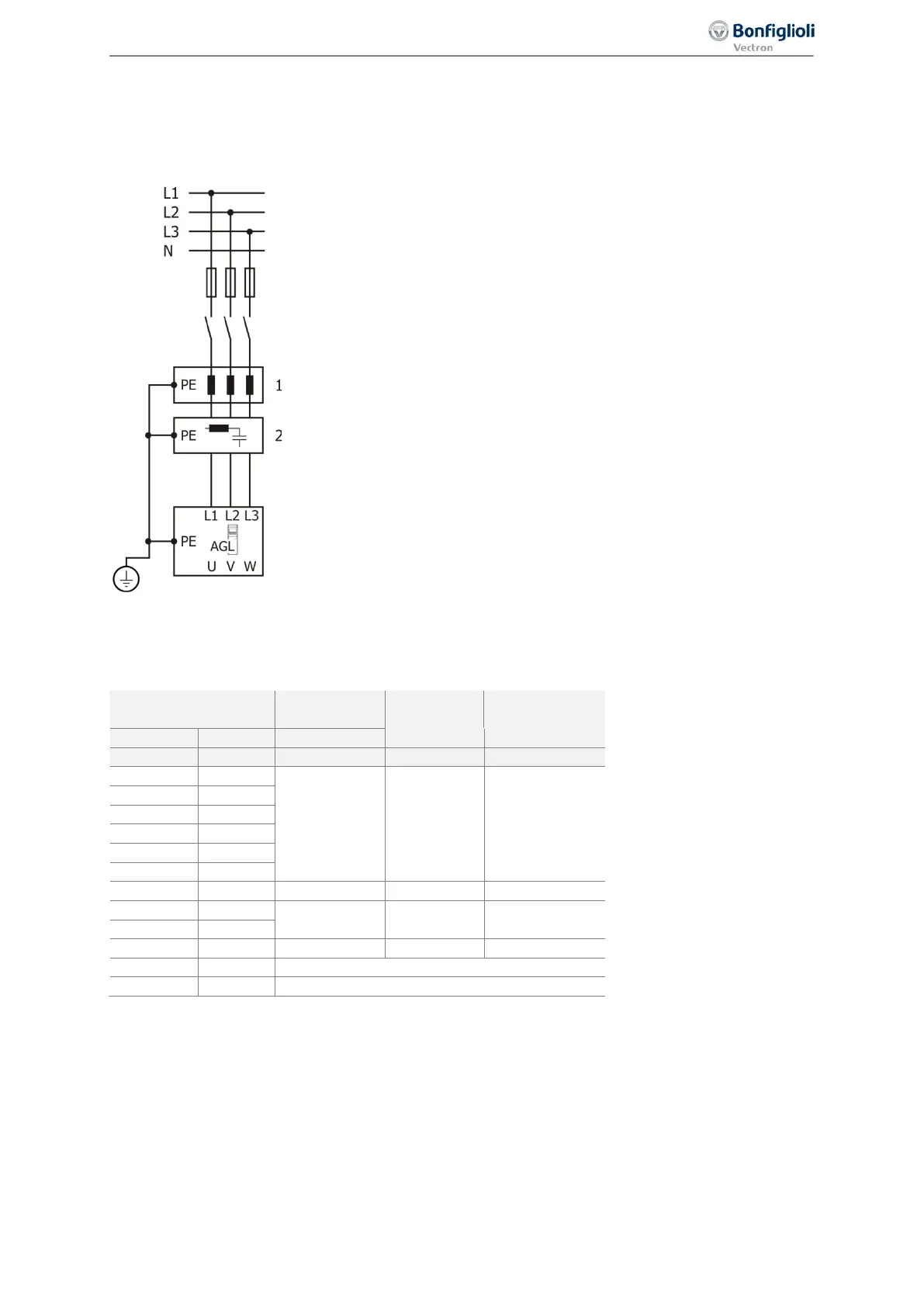

Line chokes reduce mains harmonics and reactive power.
The line choke must be installed between mains connection and input filter.
In chapter 11.2 “Device data” the devices, that require a line choke, are marked.
1: Line choke
2: Input filter
12.4.1 1x230 V connection
Frequency inverter
1phase operation
Recommend-
ed line choke
Rated cur-
rent
Power dissipa-
tion
Type
Type
Agile 202
kW
A
W
-01
0.09
LCVS006 6 8
-02
0.12
-03
0.18
-05
0.25
-07
0.37
-09
0.55
-11
0.75
LCVS008
8
8
-13
1.1
LCVS015 15 12
-15
1.5
-18
2.2
LCVS018 (*)
18
15
-19
3.0
On request
-21
3.0
On request
(*) Usage allowed using the maximum continous line current of 18 A.
