Parameter descriptions
7.6.5.2 Setting frequency
510 Setting Frequency
517 Setting Frequency Switch Off Delta

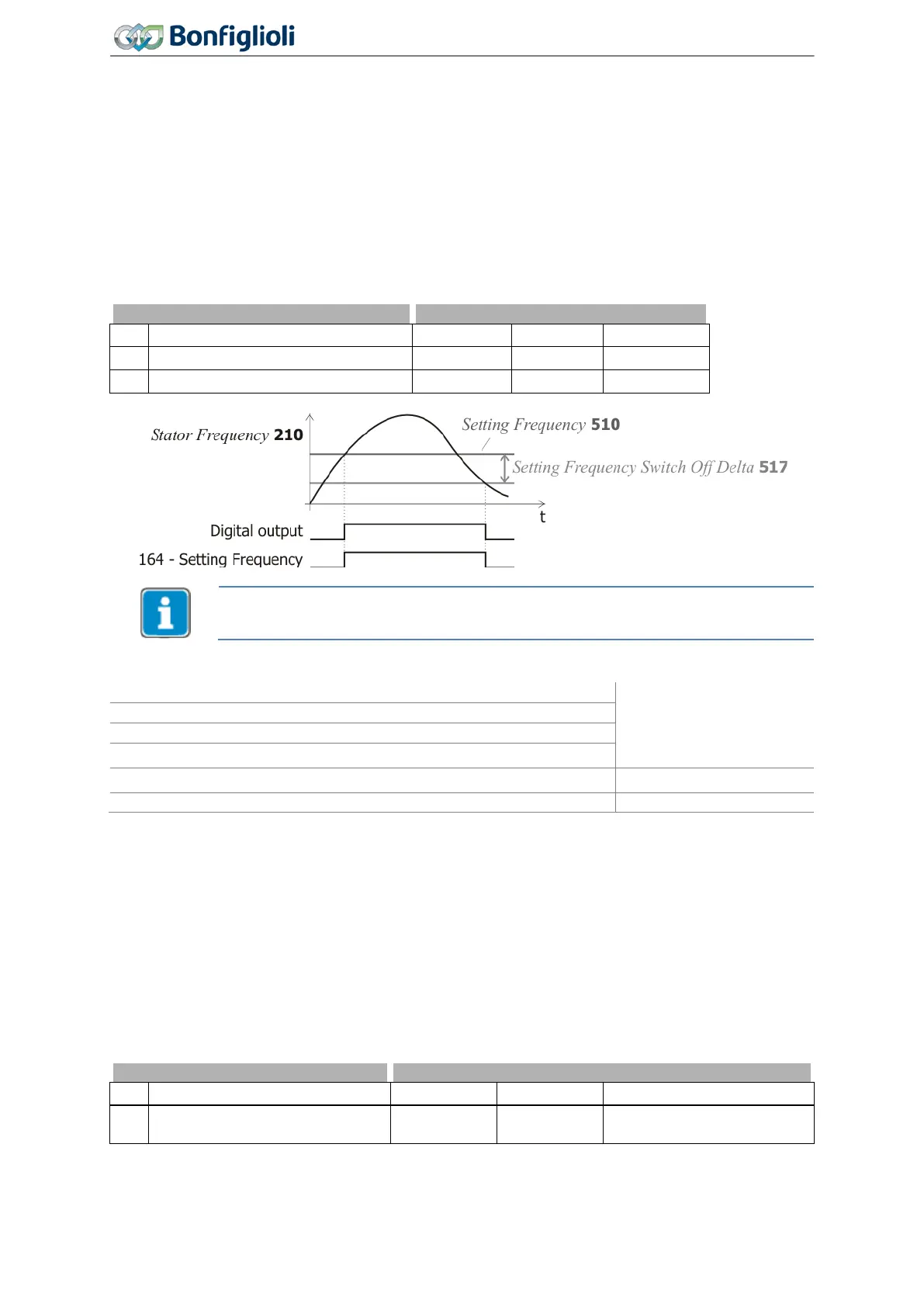

If operation mode 4 - "Setting frequency" is selected for a digital output, the corresponding output will
be active if the actual value
Stator frequency 210 is greater than the value of Setting Frequency 510.
The relevant output is switched over again once the
Stator frequency 210 drops below the value "Set-
ting frequency
510 minus Setting Frequency Switch Off Delta 517".
Signal source 164 - "Setting frequency" can be linked to the functions of the frequency inverter.
No. Description Min. Max. Fact. sett.
Setting Frequency Switch Off Delta
If Setting Frequency Switch Off Delta 517 > Setting Frequency 510 the output is
never reset after the first switching on. Set up fitting values during commissioning.
Operation mode OUT1D (X13.5) 531(digital output)
4 - Setting frequency
Operation mode OUT2D (X10/relay) 532
Operation mode OUT3D (X11.6) 533 (digital input/output)
Digital: Source MFO1D 554 (multifunction output)
7.6.5.3 Reference value reached
549 Reference Value Reached: Tolerance Band
In operation mode 5 - "Reference frequency reached" for a digital output, a message is generated via
the corresponding output when the actual frequency has reached the reference value.
In operation mode 6 - "Reference percentage reached" for a digital output, a message is generated
via the corresponding output when the actual percentage has reached the reference value.
Signal source 163 - "Reference frequency reached" or 178 - "Reference percentage reached" can be
linked to the functions of the frequency inverter.
The hysteresis can be defined as a percentage of the adjustable range (Max - Min) via parameter
Reference Value Reached: Tolerance Band 549.
549
Reference Value Reached: Toler-
ance Band
0.01% 20.00% 5.00%
190
Operating Instructions
Agile
06/2013 Control inputs and outputs
