BONFIGLIOLI Agile User Manual

Electrical Installation

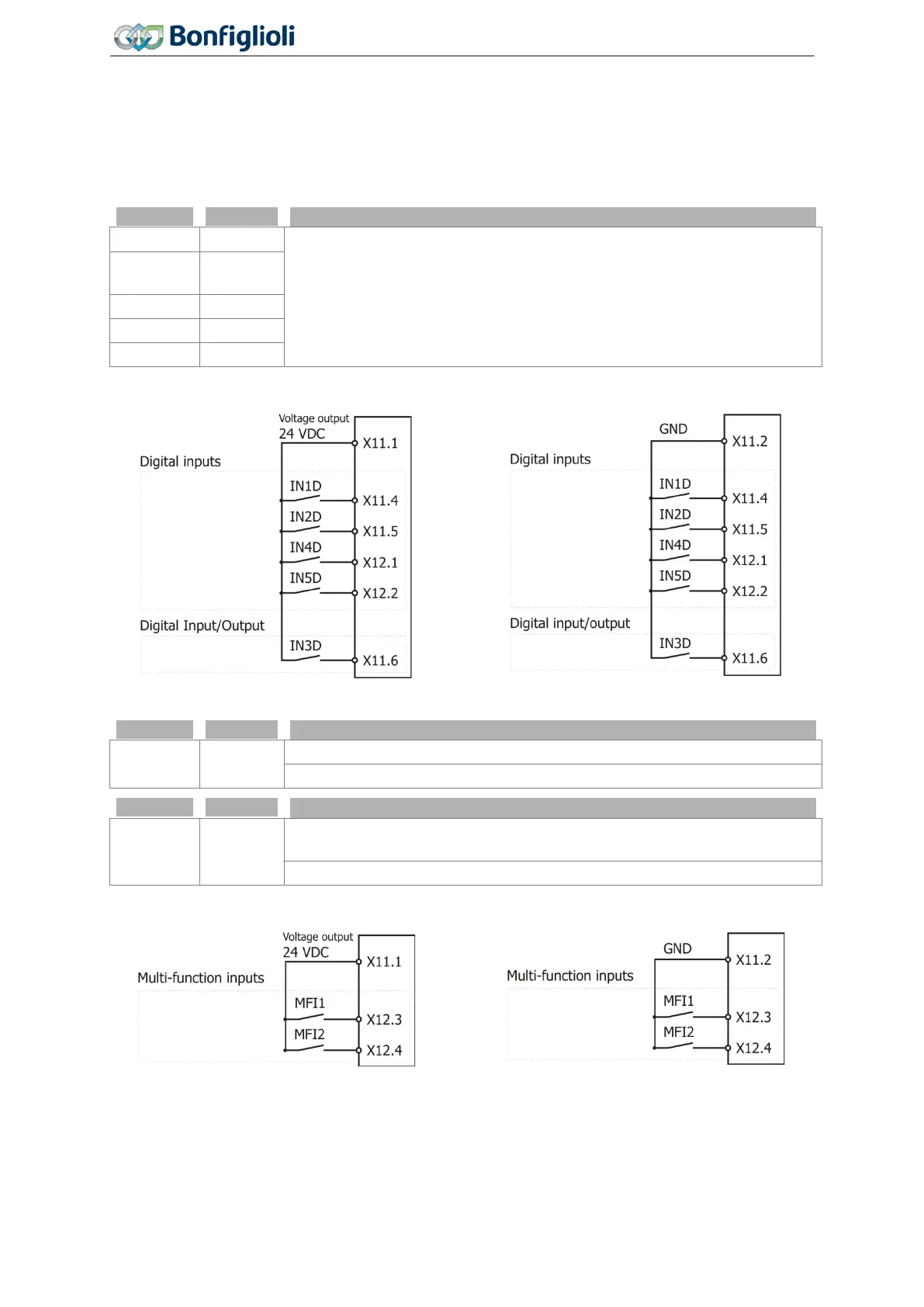

5.7.4 Evaluation logic of digital inputs
The evaluation logic of the digital inputs and multifunction inputs - in digital operation mode - can be
changed over via parameter settings.
• Select “0 - NPN (active: 0 V)” or “1 - PNP (active: 24 V)” for parameter
Digital inputs
PNP/NPN
559.
Digital inputs
Terminal
Input
Digital inputs PNP/NPN 559
X11.4 IN1D 0 - NPN (active: 0 V)
Low-switching (with negative signal).
X11.5 IN2D 1 - PNP (active: 24 V)
High-switching (with positive signal). Factory
setting.
X11.6 IN3D
X12.1 IN4D
X12.2 IN5D
PNP
NPN
Multifunction inputs
Terminal
Input
Operation Mode MFI1 452
X12.3 MFI1
3 digital NPN (active: 0 V)
Low-switching (with negative signal).
4 digital PNP (active: 24 V)
High-switching (with positive signal).
Terminal
Input
Operation Mode MFI2 562
X12.4 MFI2
3 digital NPN (active: 0 V)
Low-switching (with negative sig-
nal).Factory setting.
4 digital PNP (active: 24 V)
High-switching (with positive signal).
PNP
NPN
48
Operating Instructions
Agile 06/2013 Control terminals Standard connection
