Parameter descriptions
Signals via physical contacts (IN1D…IN5D, MFI1, MFI2) are only evaluated if an oper-
ation mode
Local/Remote 412 with “Control via Contact” or “Control 3-
Wire” (0, 4 or
5) is selected.
In all other operation modes
Local/Remote 412
(1, 2, 3) physical contacts are only
evaluated, if the corresponding signals in the digital inputs with the suffix (Hardware)
are selected.
Signals not referring to a physical input are evaluated independent of the operation
mode Local/Remote 412.
7.6.6.2 Start command
68 Start Clockwise
69 Start Anticlockwise
The parameters Start Clockwise 68 and Start Anticlockwise 69 can be linked to the available digital
control inputs or the internal logic signals. The drive is only accelerated according to the control
method after a start command.
The logic functions are used for the specification of the direction of rotation, but also for using the
parameterized
Operation Mode 620 for the starting behavior and Operation Mode 630 for the stop-
ping behavior.
Parameter
Factory setting
Start Clockwise 68
71 – IN1D
Start Anticlockwise 69
72 – IN2D

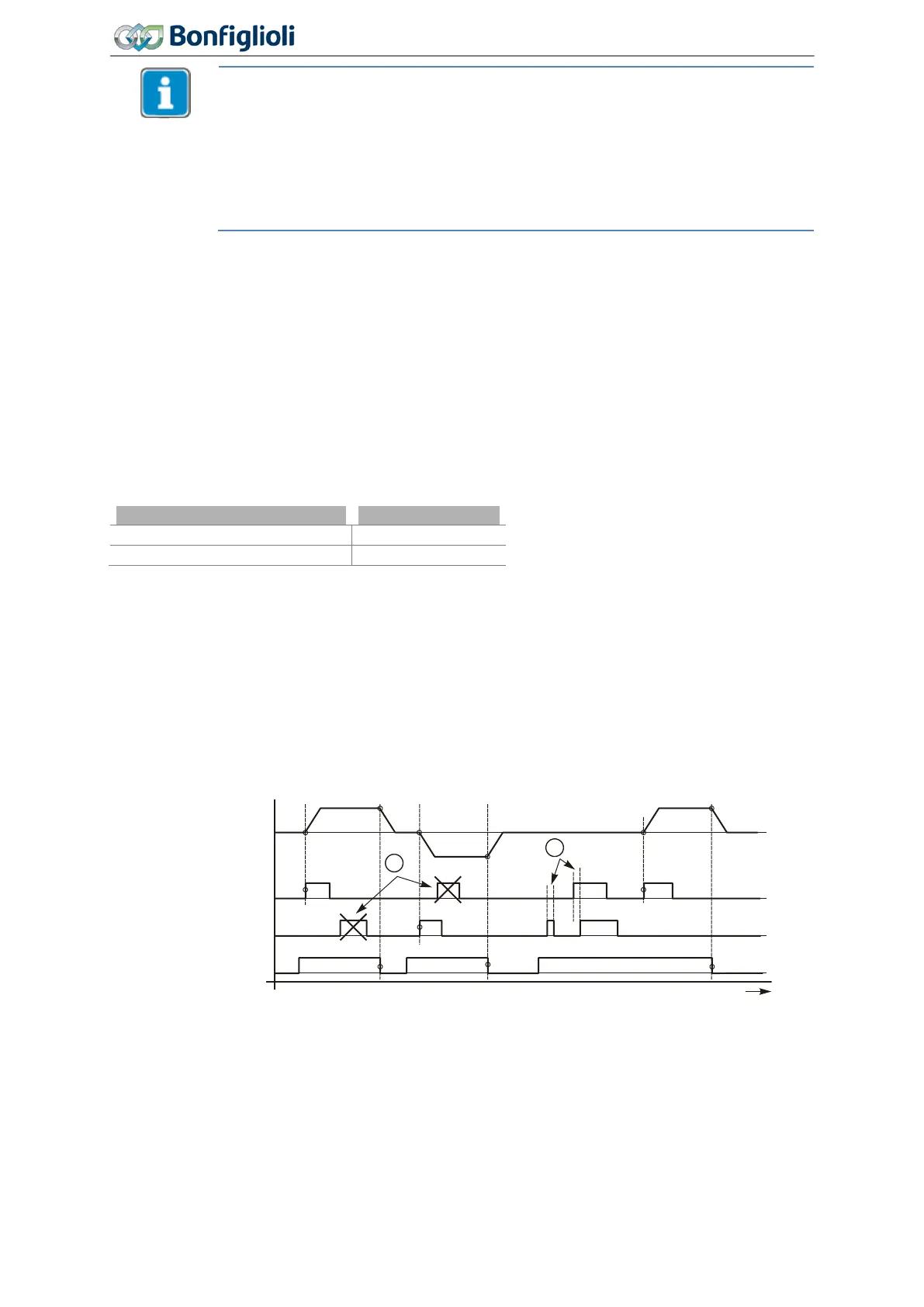

7.6.6.3 3-Wire Control
87 Start 3-Wire Ctrl
In the case of 3-wire control, the drive is controlled using digital pulses. The drive is prepared for
starting via the logic state of the signal
Start 3-Wire Ctrl 87 and started by a Start clockwise pulse
(Parameter
Start Clockwise 68) or a start anticlockwise pulse (parameter Start Anticlockwise 69). By
switching off the signal
Start 3-Wire Ctrl 87, the drive is stopped.
The control signals for Start clockwise and Start anticlockwise are pulses. The functions Start clock-
wise and Start anticlockwise for the drive are latching-type functions when signal
Start 3-Wire Ctrl 87
is switched on. Latching is cancelled when the latching signal is switched off.
(C)
Clockwise
(1)
Signals are ignored
(A)
Anticlockwise
(2)
Time t < 32 ms
The drive is started according to the configured starting behavior if the signal
Start 3-Wire Ctrl 87 is
switched on and a positive signal edge for Start clockwise or Start anticlockwise is detected.
Once the drive has started, new edges (1) on the start signals will be ignored.
If the start signal is shorter than 32 ms (2) or if both start signals were switched on within 32 ms (2),
the drive will be switched off according to the configured stopping behavior.
Start 3-Wire-
Ctrl
Drive
Start Anticlockwise
Start Clockwise
1
2
t
C
C
A
200
Operating Instructions
Agile 06/2013 Control inputs and outputs
