BONFIGLIOLI Agile User Manual

Electrical Installation

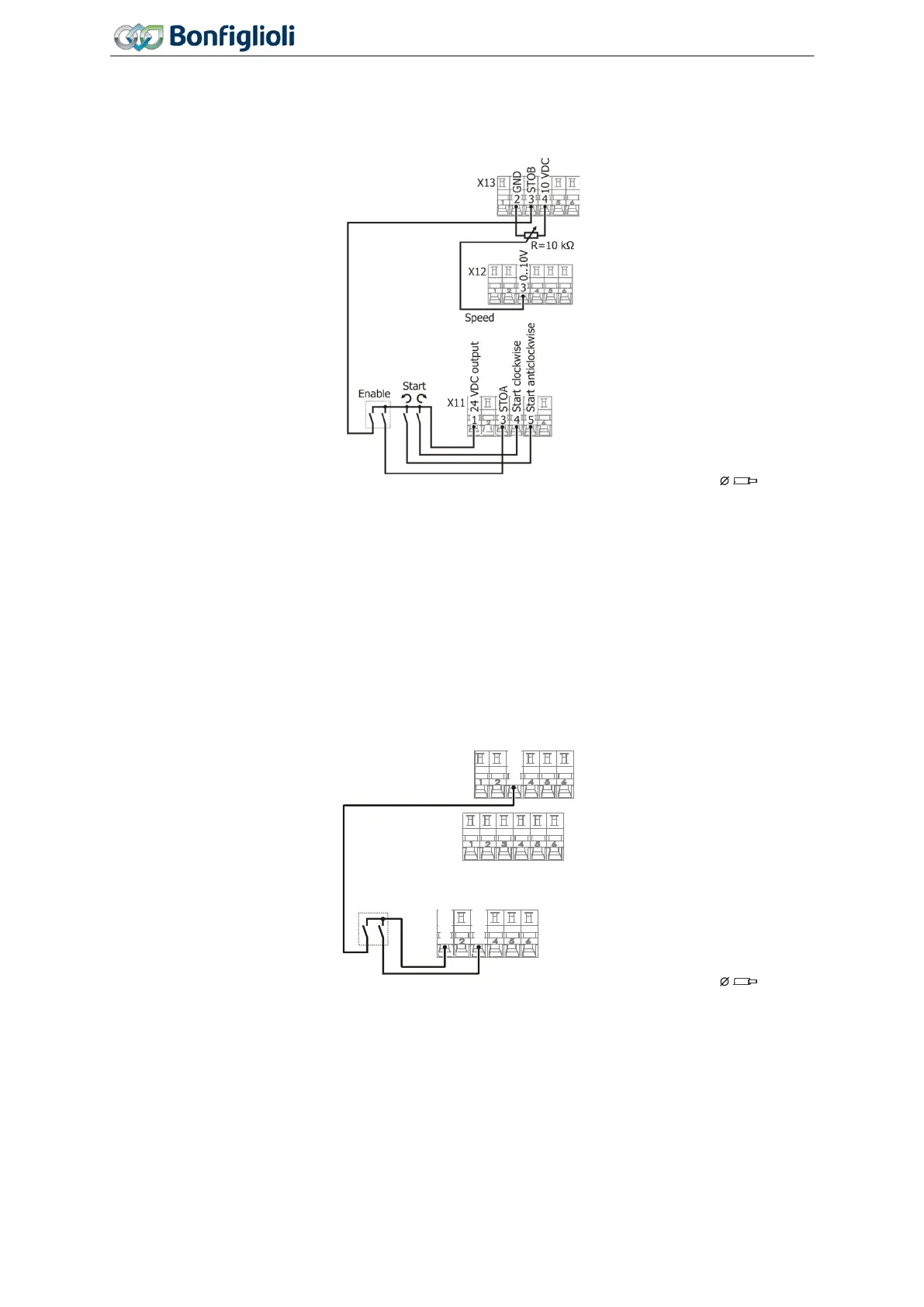

5.7.1 Circuit for control via control terminals
The motor is started via start signals on the control terminals. The circuit shows the input signals re-
quired as a minimum and the control terminals in factory settings.
Start cw:
Start clockwise operation
Start ccw:
Start anticlockwise operation
VDC out:
Voltage output
n:
Speed
E:
Enable
5.7.2 Circuit for control via operator panel
The motor is started via the operator panel. The circuit shows the input signals required as a mini-
mum and the control terminals in factory settings.
VDC out:
Voltage output
E:
Enable
1.5 mm
2
max. 2.5 mm
2
X12
X13
3
E
1 3
X11
24 VDC out
STOA
STOB
1.5 mm
2
max. 2.5 mm
2
46
Operating Instructions
Agile 06/2013 Control terminals Standard connection
