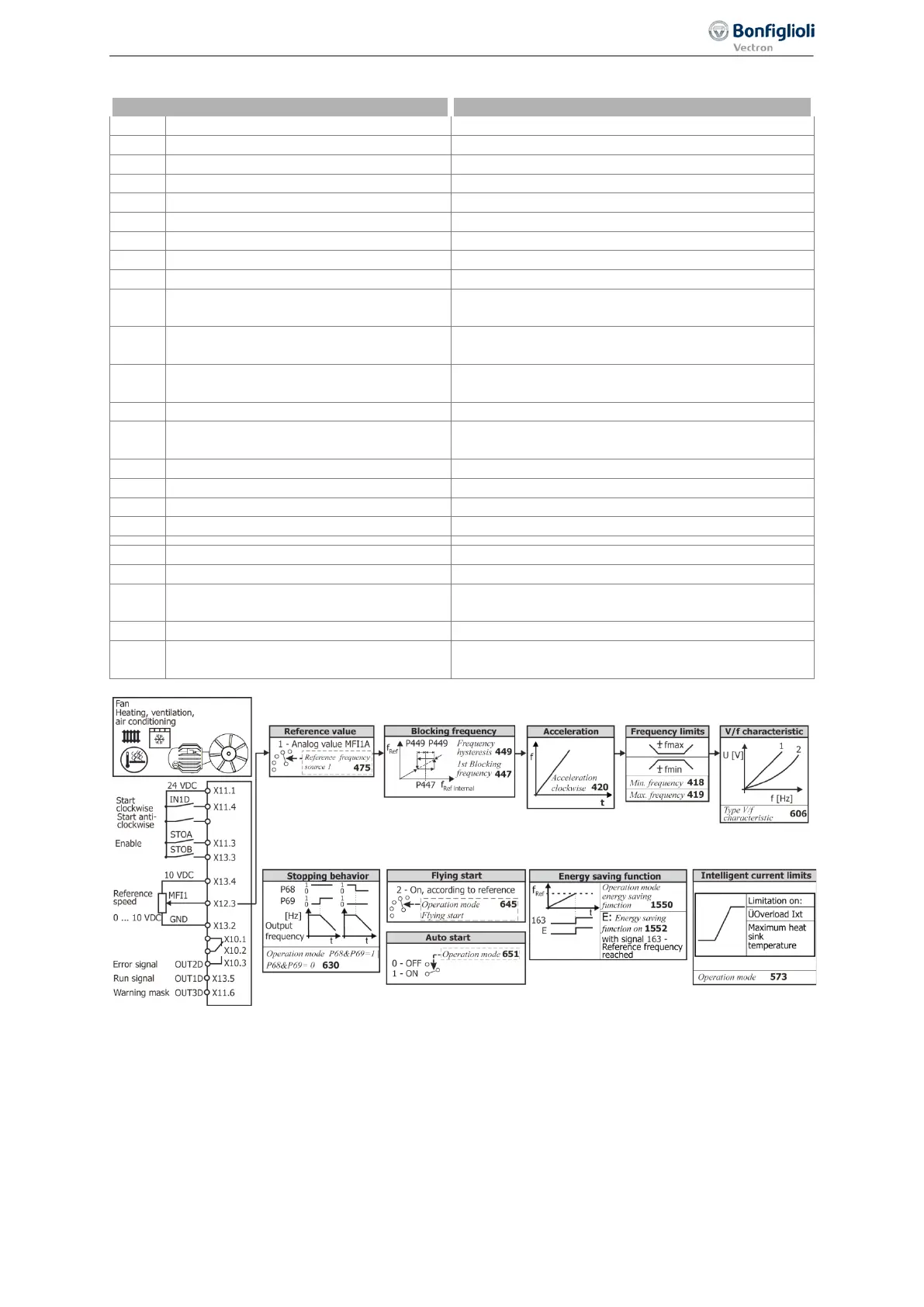

BONFIGLIOLI Agile User Manual

Commissioning
6.7.4 Fan for heating, ventilation, air conditioning system
Parameters
Recommenced setting
30
Configuration
110 IM: sensorless control (V/f characteristic)
418
Minimum frequency
10 Hz
419
Maximum frequency
50 Hz
420
Acceleration (clockwise)
10 Hz/s
421
Deceleration (clockwise)
-0.01 Hz
447
1st Blocking frequency
0 Hz
449
Frequency Hysteresis
0 Hz
475
Reference frequency source 1
1 - analog value MFI1A
492
Reference frequency source 2
0 - zero
493
Operation mode (reference frequency
source)
1 - (+/- reference)
558
Operation mode terminal X11.6 (digital
input/output)
1 - Output OUT3D
573
Operation mode (intelligent current
limits)
11 - Ixt + Tc (limitation to overload and max. heat
sink temperature)
606
Type V/f characteristic
2 - quadratic
630
Operation mode (P68&P69=1
|P68&P69=0) (stopping behavior)
0 - (Coast to Stop | Coast to Stop)
645
Operation Mode Flying Start
2 - On, according to reference
651
Operation mode (auto start)
1 - On
1550
Operation mode energy saving function
Automatic
1552
Energy saving function on
163 - Reference Frequency reached
68
Start Clockwise
71 - IN1D
69
Start Anticlockwise
7 - Off
531
Operation mode OUT1D (X13.5) (digital
output)
2 - Run signal
532
Operation mode OUT2D (X10/relay)
103 - Inv. error signal
533
Operation mode OUT3D (X11.6) (digital
input/output)
25 - Warning Mask
