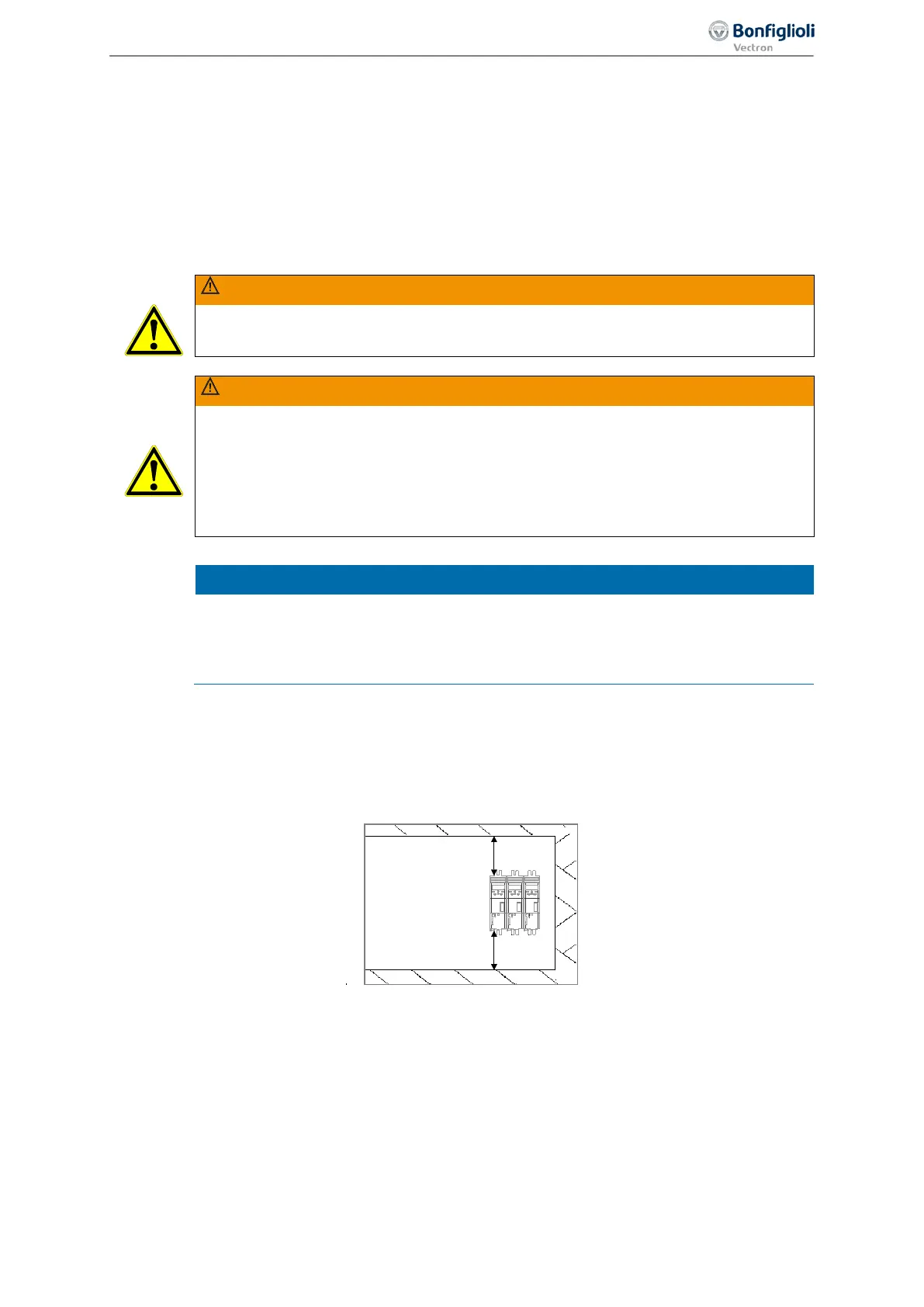

Mechanical Installation
4 Mechanical Installation
The frequency inverters of degree of protection IP20 are designed, as a standard, for installation in
electrical cabinets.
During installation, both the installation and the safety instructions as well as the device specifications
must be complied with.
4.1 Safety
WARNING
To avoid serious
physical injury or considerable damage to property, only qualified staff
may work on the devices.
WARNING
During assembly, make sure that no foreign particles (e.g. chips, dust, wires, screws,
tools) can get inside the
frequency inverter. Otherwise there is the risk of short circuits
and fire.
The frequency inverter complies with protection class IP20 only if the covers, compo-
nents and terminals are mounted properly.
Overhead Installation or installation in horizontal position is not permissible.
Mount the devices with sufficient clearance to other components so that the cooling air
can circulate freely. Avoid soiling by grease and air pollution by dust, aggressive gases,
etc.
Suction intakes of fans may not be covered.
4.2 Installation
Mounting distance
27
