Commissioning

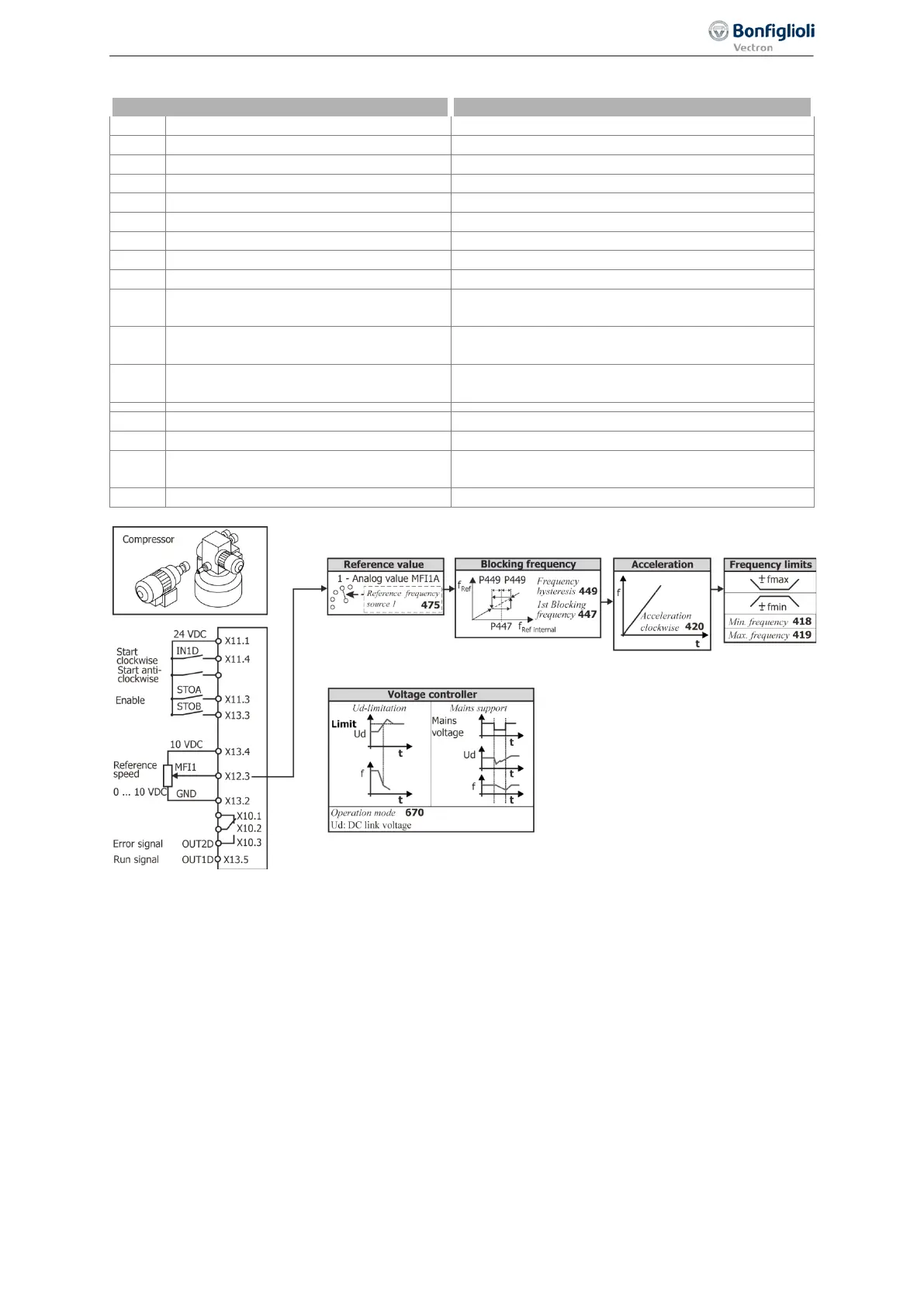

6.7.6 Compressor
Parameters
Recommenced setting
30
Configuration
110 IM: sensorless control (V/f characteristic)
418
Minimum frequency
10 Hz
419
Maximum frequency
50 Hz
420
Acceleration (clockwise)
12.5 Hz/s
421
Deceleration (clockwise)
-0.01 Hz
447
1st Blocking frequency
0 Hz
449
Frequency Hysteresis
0 Hz
475
Reference frequency source 1
1 - Analog Value MFI1A
492
Reference frequency source 2
0 - zero
493
Operation mode (reference frequency
source)
1 - (+/- reference)
630
Operation mode (P68&P69=1
|P68&P69=0) (stopping behavior)
0 - (Coast to Stop | Coast to Stop)
670 Operation mode (voltage controller)
3 - Ud limitation and mains support active
(Ud: DC link voltage)
68
Start Clockwise
71 - IN1D
69
Start Anticlockwise
7 - Off
531
Operation mode OUT1D (X13.5) (digital
output)
2 - Run signal
532
Operation mode OUT2D (X10/relay)
103 - Inv. error signal
105
