BONFIGLIOLI Agile User Manual

Commissioning

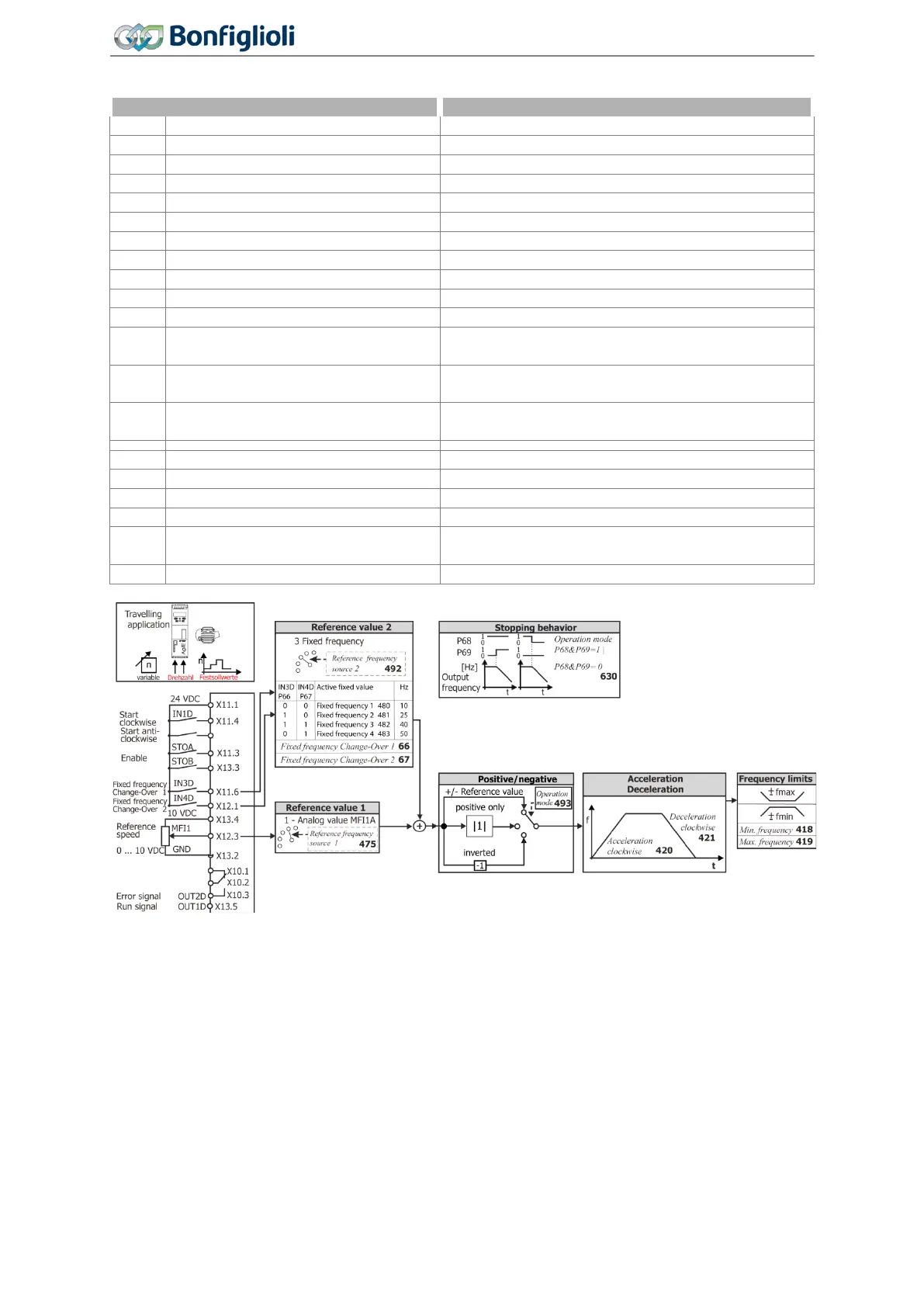

6.7.7 Travel applications
Parameters
Recommenced setting
30
Configuration
110 IM: sensorless control (V/f characteristic)
418
Minimum frequency
10 Hz
419
Maximum frequency
50 Hz
420
Acceleration (clockwise)
15 Hz/s
421
Deceleration (clockwise)
15 Hz/s
475
Reference frequency source 1
1 - Analog Value MFI1A
480
Fixed frequency 1
10 Hz
481
Fixed frequency 2
25 Hz
482
Fixed frequency 3
40 Hz
483
Fixed frequency 4
50 Hz
492
Reference frequency source 2
3 - Fixed frequency
493
Operation mode (reference frequency
source)
1 - (+/- reference)
558
Operation mode terminal X11.6 (digi-
tal input/output)
0 - Input IN3D
630
Operation mode (P68&P69=1
|P68&P69=0) (stopping behavior)
11 - (Stop, Off | Stop, Off)
68
Start Clockwise
71 - IN1D
69
Start Anticlockwise
7 - Off
66
Fixed frequency Change-Over 1
73 - IN3D
67
Fixed frequency Change-Over 2
74 - IN4D
531
Operation mode OUT1D (X13.5) (digi-
tal output)
2 - Run signal
532
Operation mode OUT2D (X10/relay)
103 - Inv. error signal
106
Operating Instructions
Agile 06/2013 Applications
