Parameter descriptions

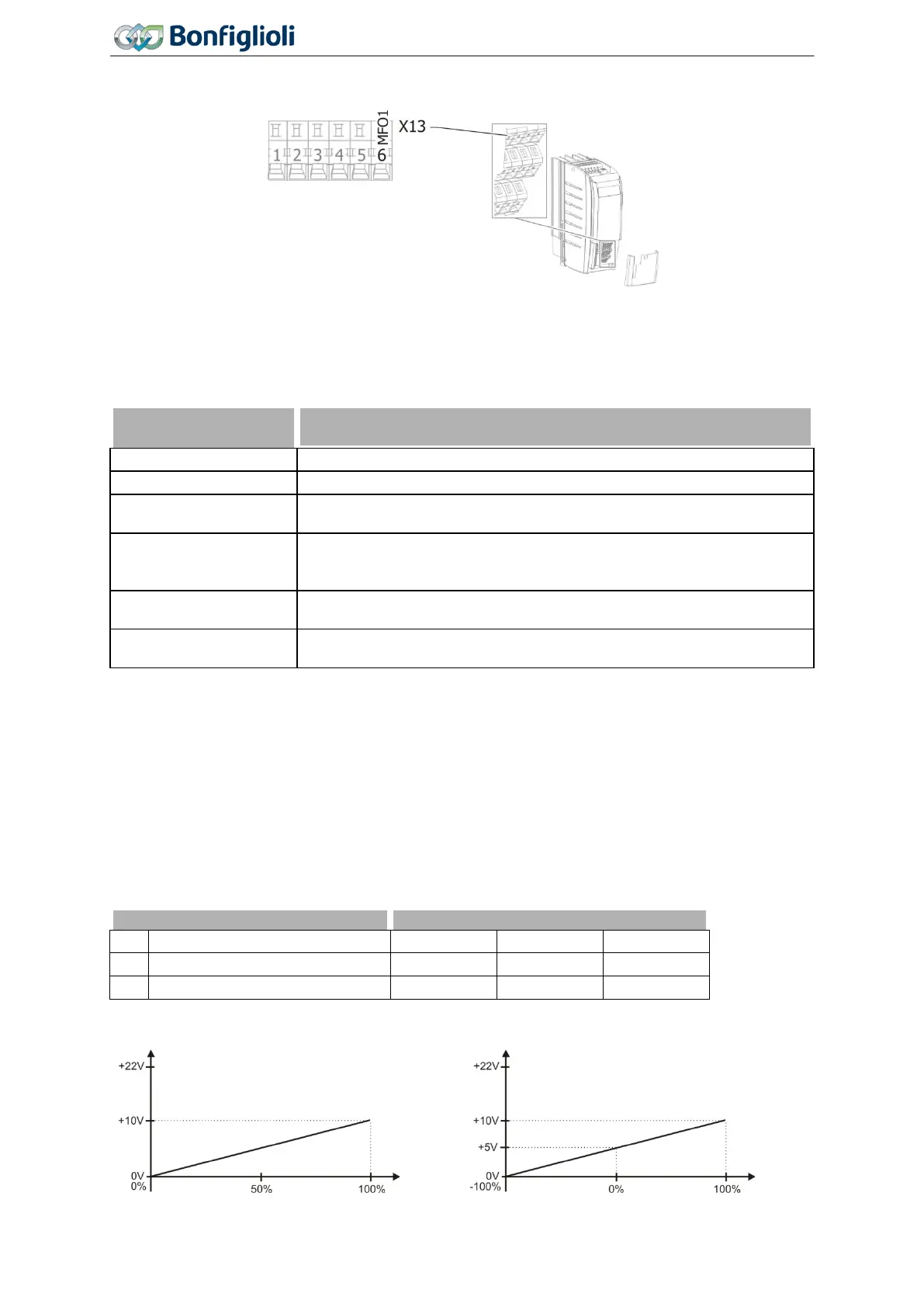

7.6.3 Multifunction output MFO1
550 Operation Mode MFO1 (X13.6) (multifunction output)
Multifunction output MFO1 (terminal X13.6) can either be configured as a digital, analog, repetition
frequency or pulse train output. Depending on the selected
Operation Mode MFO1 (X13.6) 550, a
connection with various functions of the software is possible. The operation modes not used are deac-
tivated internally.
Operation mode MFO1
(X13.6) 550
Multifunction output has logic signal LOW.
Multifunction output is configured as digital output (0 ... 24 V
1)
).
10 -
Multifunction output is configured as analog output (0 ... 24 V). Factory
setting. PWM frequency = 126 Hz.
11 -
Analog (PWM)
MFO1A
Multifunction output is configured as analog output (0 ... 24 V). Factory
setting. PWM frequency = 32 kHz.
Function available in devices marked integrated Functional Safety.
20 -
Repetition frequen-
cy (RF) MFO1F
Multifunction output is configured as repetition frequency output (0 ...
24 V, f
max
= 150 kHz).
30 -
Multifunction output is configured as pulse train output.
1)
Dependent on the voltage supply of the control unit. The maximum guaranteed values is 15 V.
Output characteristic (analog mode)
If the multifunction output is set as an analog output, an output characteristic can be set. Parameter
Operation Mode MFO1 (X13.6) 550 must be set to "10 - Analog (PWM) MFO1A" (factory setting).
551 Analog: Voltage 100%
552 Analog: Voltage 0%
The voltage range of the output signal at the multifunction output can be adjusted. The value range
of the actual value selected via parameter
Analog: Source MFO1A 553 is assigned to the value range
of the output signal which is adjusted via the parameters
Analog: Voltage 100% 551 and Analog:
Voltage 0%
552.
551 Analog: Voltage 100% 0.0 V 22.0 V 10.0 V
Analog: Source MFO1A 553 with actual abso-
lute value:
Analog: Source MFO1A 553 with sign:
182
Operating Instructions
Agile
06/2013 Control inputs and outputs
