BONFIGLIOLI Agile User Manual

Device overview
3 Device overview
This chapter describes the characteristic of the Agile series.
3.1 Inverter type and warning signs on the device
• Determine the type of frequency inverter.
• Verify that the rated input voltage corresponds to the local power supply.
• Verify that the recommended motor shaft power of the frequency inverter corresponds to the
rated power of the motor.

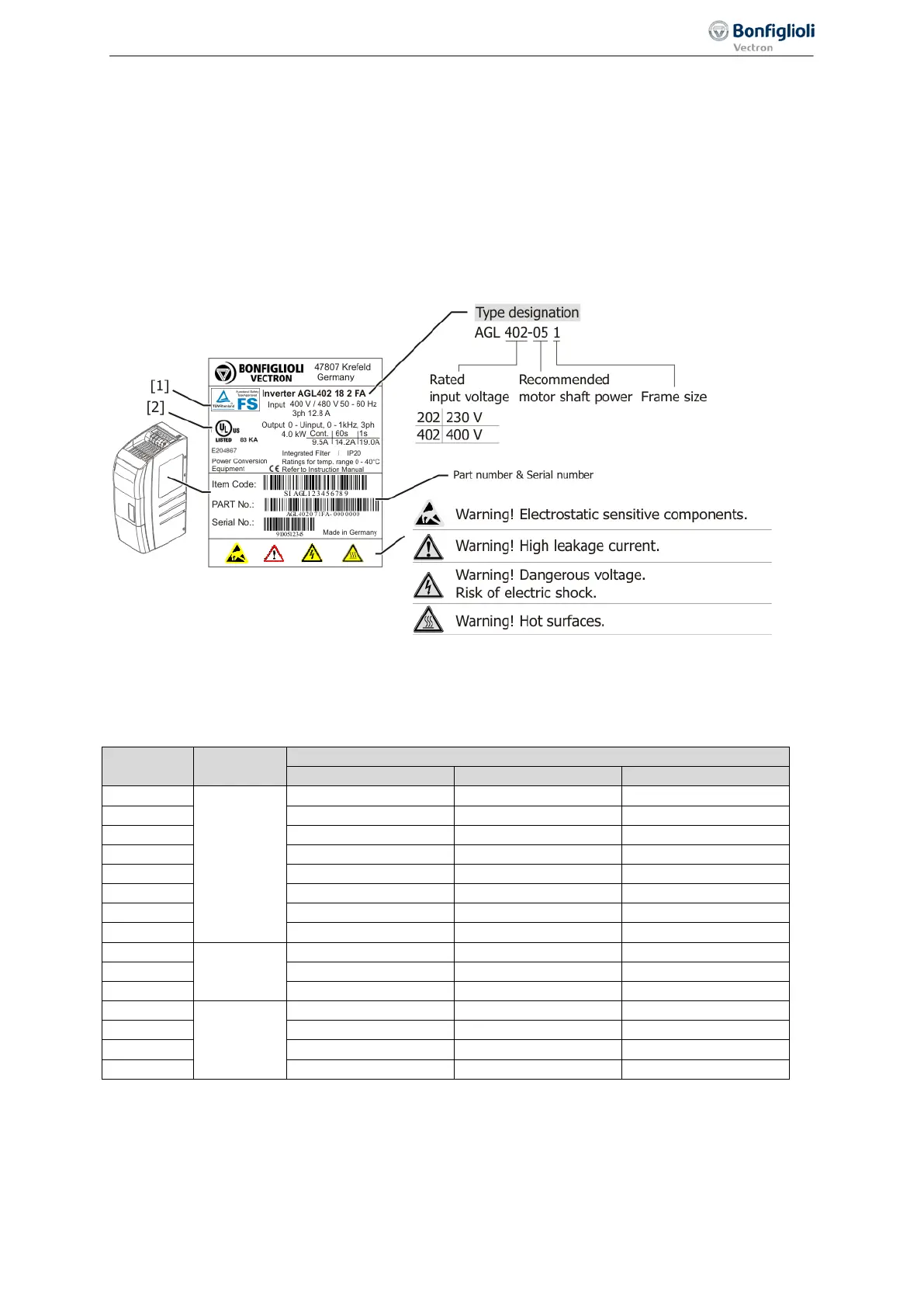

[1] Labeling for Functional Safety (if applicable). Please check the Application manual “Functional
Safety”.
[2] Labeling for UL508c (if applicable)
Recommended motor shaft power at specified power supply
Specifier
Frame size
AGL 402: AC 3x400 V
AGL 202: AC 3x230 V
AGL 202: AC 1x230 V
-01 1
1
--
0,18 kW
0,09 kW
-02 1
0,25 kW
0,25 kW
0,12 kW
-03 1
0,37 kW
0,37 kW
0,18 kW
-05 1
0,55 kW
0,55 kW
0,25 kW
-07 1
0,75 kW
0,75 kW
0,37 kW
-09 1
1,1 kW
1,1 kW
0,55 kW
-11 1
1,5 kW
1,5 kW
0,75 kW
-13 1
2,2 kW
2,2 kW
1,1 kW
-15 2
2
3,0 kW
3,0 kW
1,5 kW
-18 2
4,0 kW
4,0 kW
2,2 kW
-19 2
5,5 kW
--
--
-19 3
3
5,5 kW
5,5 kW
3,0 kW
-21 3
7,5 kW
7,5 kW
3,0 kW
-22 3
9,2 kW
--
--
-23 3
11,0 kW
--
--
23
