BONFIGLIOLI Agile User Manual

Commissioning
6.7 Applications
The parameters required for typical applications are listed. Selecting an application makes commis-
sioning easier. Depending on the application, additional settings may be required.
Note
The PC software VPlus provides application masks for easy commissioning of applications.

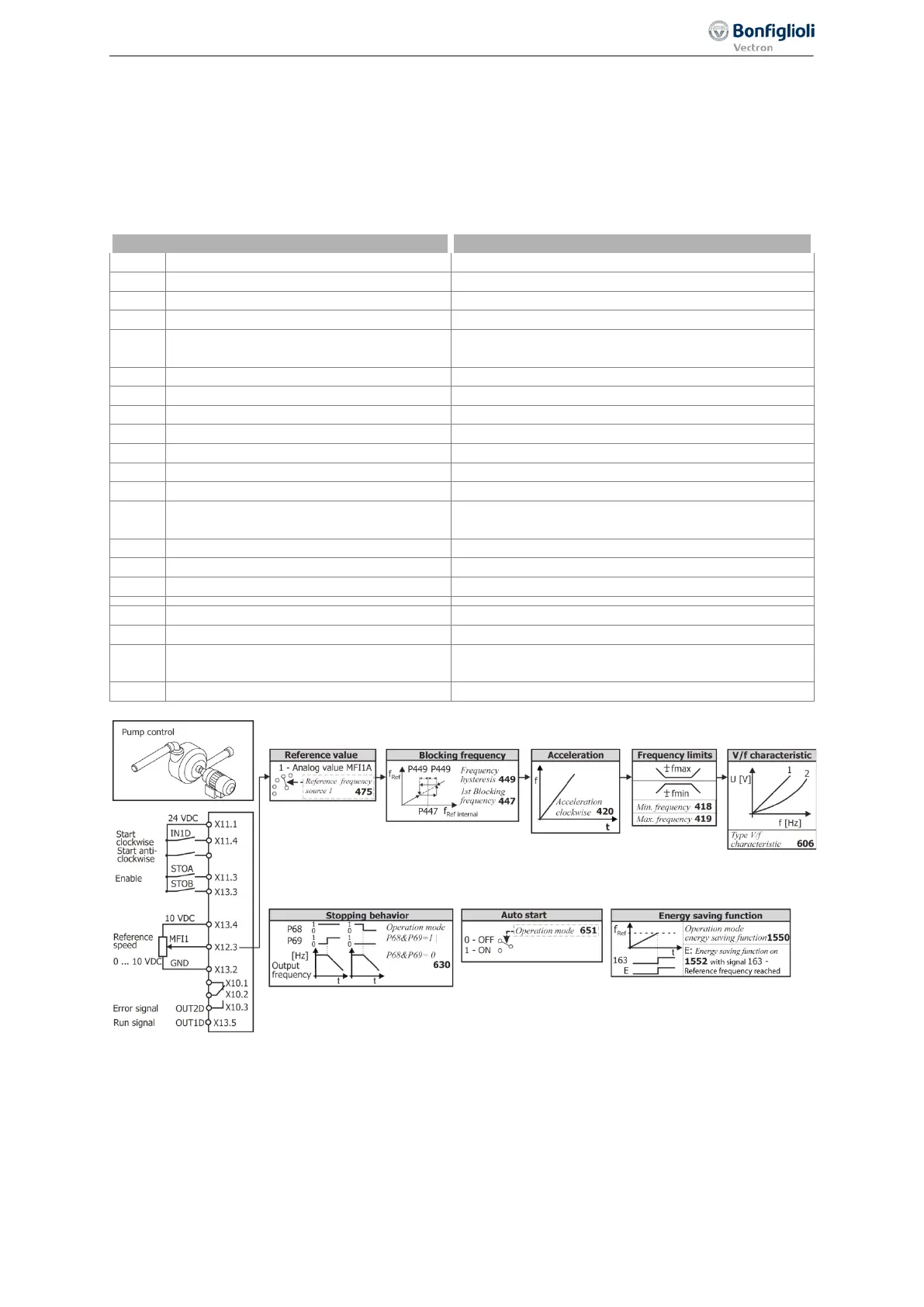

6.7.1 Pump
Parameters
Recommenced setting
30
Configuration
110 IM: sensorless control (V/f characteristic)
420
Acceleration (clockwise)
10 Hz/s
421
Deceleration (clockwise)
-0.01 Hz
492
Reference frequency source 2
0 - Zero
493
Operation mode (reference frequency
source)
1 - (+/- reference)
418
Minimum frequency
10 Hz
419
Maximum frequency
53 Hz
420
Acceleration (clockwise)
10 Hz/s
447
1st Blocking frequency
0 Hz
449
Frequency Hysteresis
0 Hz
475
Reference frequency source 1
1 - Analog Value MFI1A
606
Type V/f characteristic
2 - quadratic
630
Operation mode (P68&P69=1
|P68&P69=0) (stopping behavior)
11 - (Stop, Off | Stop, Off)
651
Operation mode (auto start)
0 - Off
1550
Operation mode energy saving function
2 - Automatic
1552
Energy saving function on
163 - Reference Frequency reached
68
Start Clockwise
71 - IN1D
69
Start Anticlockwise
7 - Off
531
Operation mode OUT1D (X13.5) (digital
output)
2 - Run signal
532
Operation mode OUT2D (X10/relay)
103 - Inv. error signal
99
