Technical data
Relay output (floating changeover contact)
Terminal
X10
Contact load capacity
make
contact:
AC 240 V/5 A, DC 24 V/5 A (ohmic)
break
contact:
AC 240 V/3 A, DC 24 V/1 A (ohmic)
Response time
40 ms

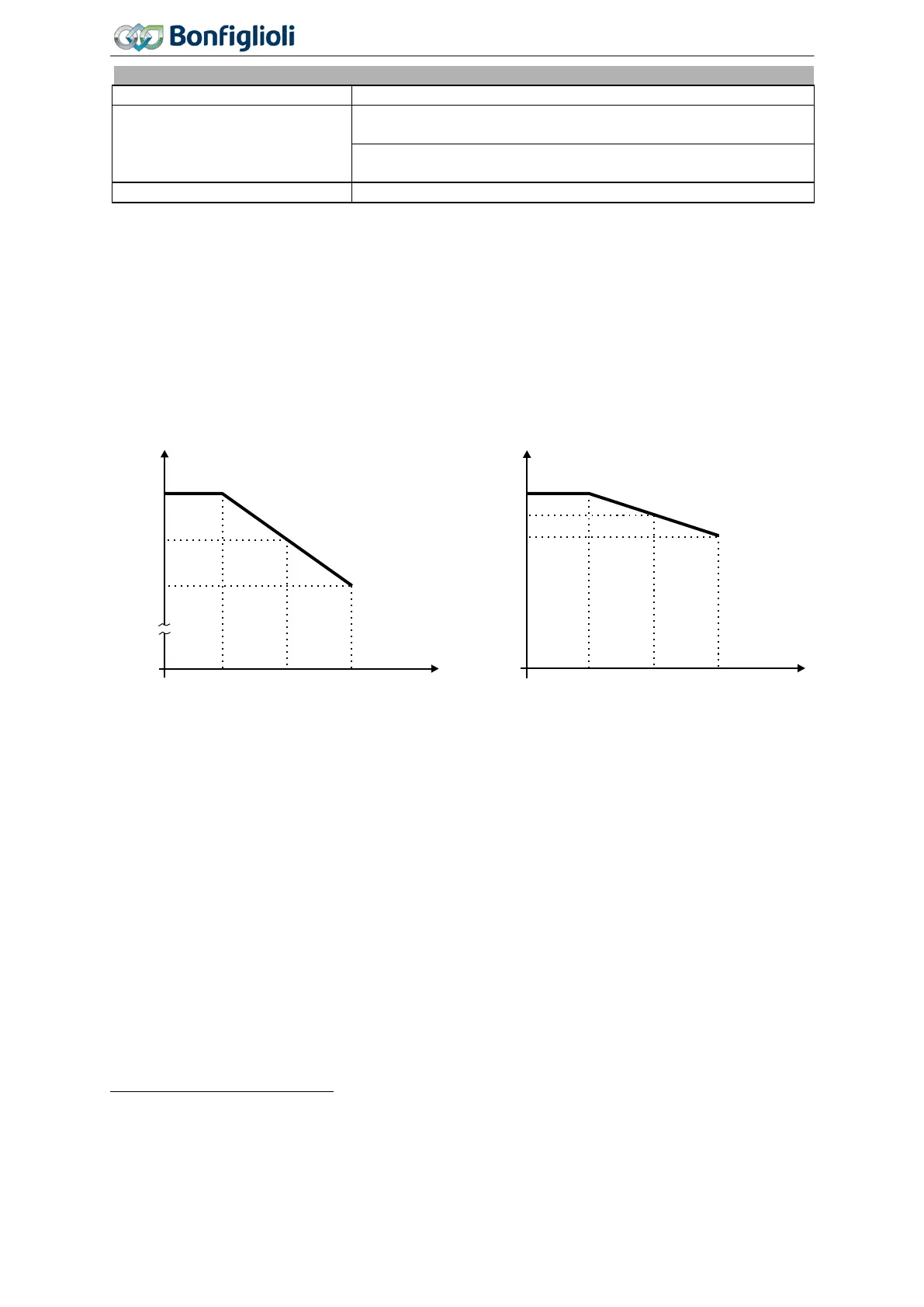

11.4 Operation diagrams
Installation height
The nominal values of the frequency inverter apply to installation altitudes up to 1000 meters above
sea level
1
. If the installation altitude exceeds 1000 meters, the output power and cooling agent tem-
perature (ambient temperature) must be reduced.
Reduction of output current
Reduction of cooling agent temperature
Power reduction (derating).
Above 1000 m: Reduction by 5%/1000 m.
Maximum altitude 3000 m.
Above 1000 m: Reduction by 3.3°C/1000 m.
Maximum cooling agent temperature 55 °C.
Reduction of output current I depending on installa-
tion altitude H.
Reduction of cooling agent temperature T
depending on installation altitude H.
1
NN: sea level
100
90
0
T [°C]
55
48
30001000 2000
30001000 2000
H [m]
I [%]
H [m]
95
52
0
288
Operating Instructions
Agile 06/2013 Operation diagrams
