Technical data
Temperature
The nominal values of the frequency inverter apply to a cooling agent temperature between 0 and
40 °C (ambient temperature).
Reduction of output current
Power reduction (derating).
Above 40 °C: Reduction by 2.5%/K; T
max
= 55 °C

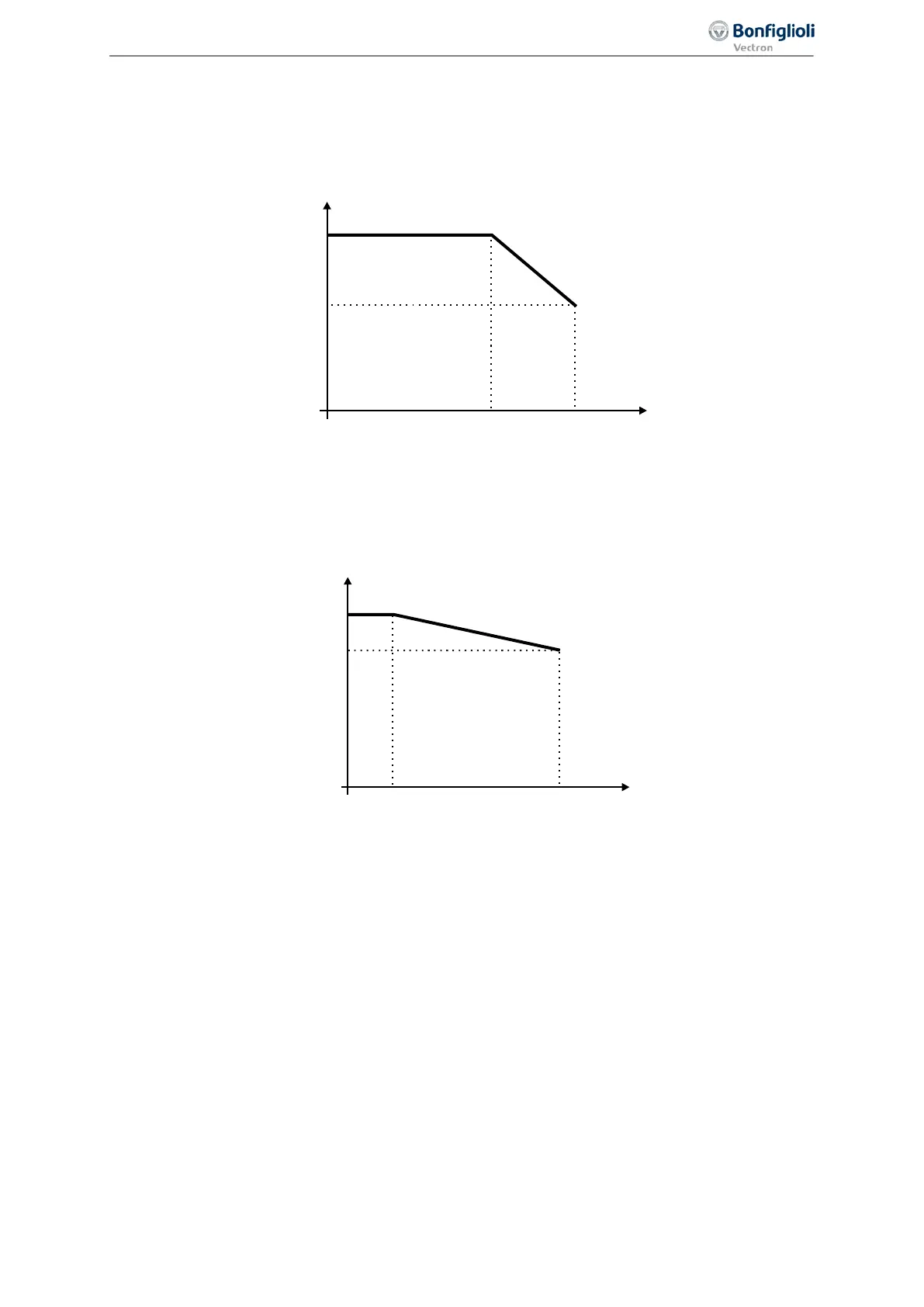

Reduction of output current I depending on cooling agent temperature T.
Mains voltage
Reduction of output current (Derating) at constant output power
Above 400 V: 0.22%/V, U
max
= 480 V
Reduction of output current I depending on output voltage U (= mains voltage).
100
80
63
40
20
T [°C]
I [%]
0 10 20 30 40 50
55
100
82
0
0
400 420 440 460 480
I [%]
U [V]
