Mechanical Installation
4.2.1 Size 1 (3~:0.18 kW to 2.2 kW; 1~: 0.09 kW to 1.1 kW)
Valid for the following devices
Frequency inverter
Type
Agile 202
Agile 402
Mains supply
1ph.
3ph.
3ph.
Power
kW
kW
kW
-01 1
0.09
0.18
---
-02 1
0.12
0.25
0.25
-03 1
0.18
0.37
0.37
-05 1
0.25
0.55
0.55
-07 1
0.37
0.75
0.75
-09 1
0.55
1.1
1.1
-11 1
0.75
1.5
1.5
-13 1
1.1
2.2
2.2

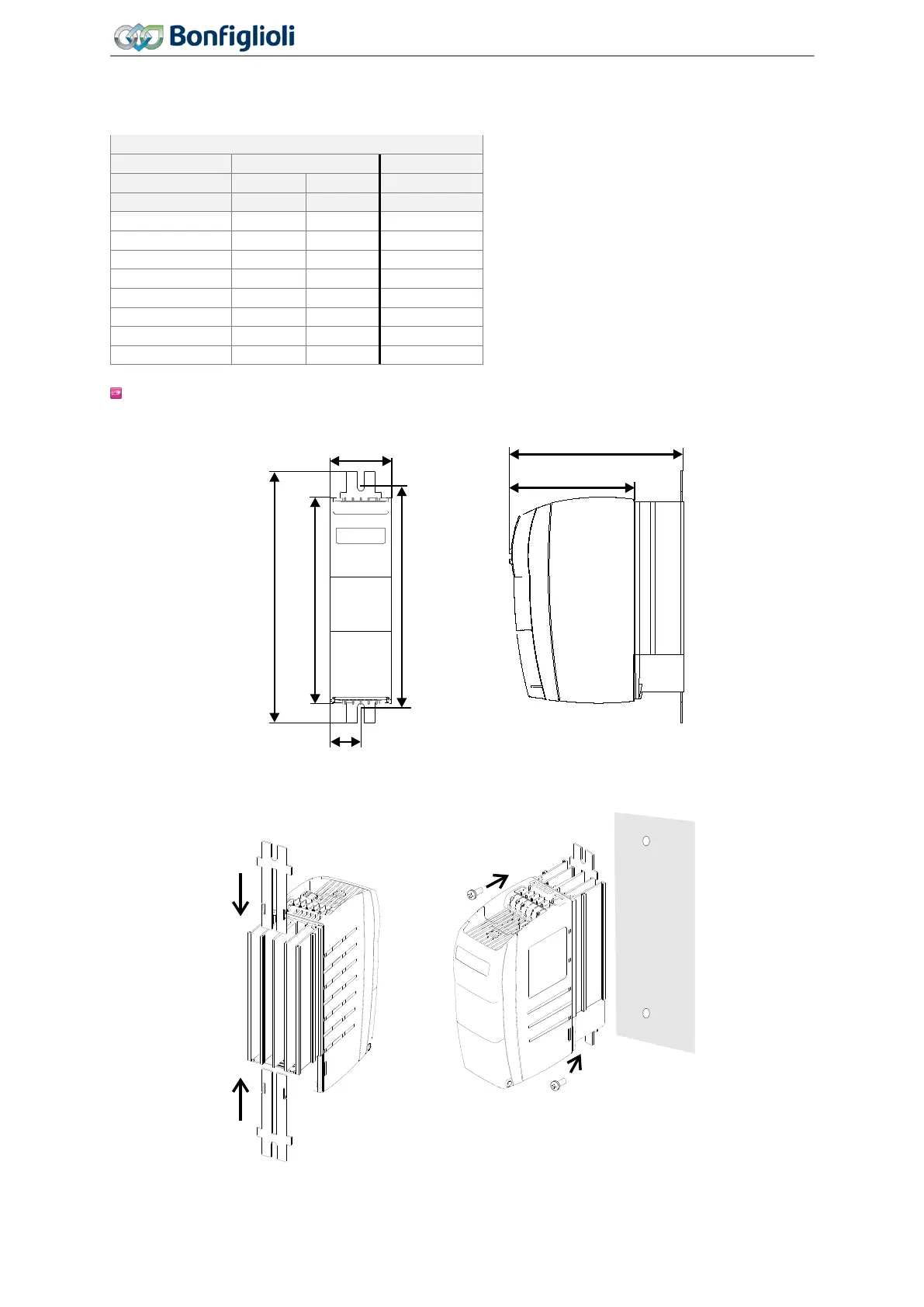

Dimensions
Assembly
Use screws M6.
200
220 (+3)
60
30
170
120
244
28
Operating Instructions
Agile 06/2013 Installation
