BONFIGLIOLI Agile User Manual

Device overview

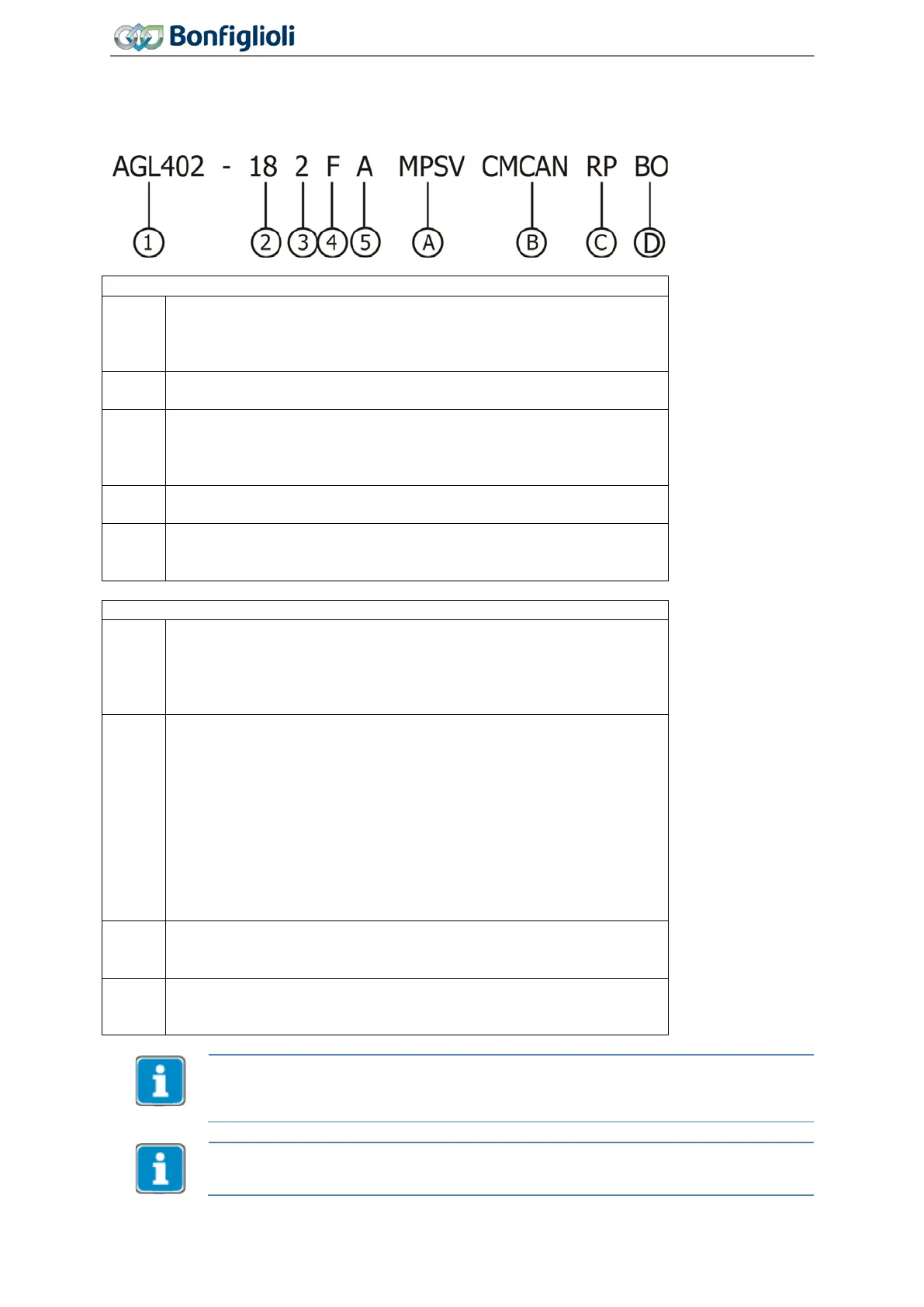

3.2 Type designation
Basic Type designation
1
Series:
AGL 202: inverter Agile 1xAC 200 – 15 %…240 V + 10 %
3xAC 200 – 15 %…240 V + 10 %
AGL 402: inverter Agile 3xAC 360…480 V +/- 10 %
2
Size (Power)
Coding see previous chapter
3
Size (mechanical size)
1 = Size 1
2 = Size 2
3 = Size 3
4
EMC Filter
F = integrated (default)
5
Design Version
A = standard cooling (default)
C = Cold Plate (optional)
Optional-Type designation
A
Mounting:
(blank)
MPSV
MDIN
MNVIB
= panel fixing (default)
= feed-through no fan
= DIN rail (size 1 only)
= vibration proof mounting
B
Communication module
(blank)
CM-CAN
CM-PDPV1
CM-232
CM-485
CM-VABus/TCP
CM-Modbus/TCP
CM-EtherCAT
®
CM-ProfiNet
CM-EtherNet-I/P
= no module (default)
= CANopen interface
= Profibus DP-V1 interface
= RS232 interface
= 2nd RS485 interface (VABus & Modbus)
= Ethernet Protocol VABus/TCP
= Ethernet Protocol Modbus/TCP
= EtherCAT
®
Protocol
= ProfiNet Protocol
= EtherNet-I/P Protocol
C
Memory Extension
(blank)
RP
= no memory card (default)
= Resource Pack (MMC memory card)
D
Software Version
(blank)
= Standard (default)
The name plate shows the options at delivery.
Most of the options (with the exception of the Software Version) can be refitted by the
user. Also the later modification (in example
removing a CM module) is possible.
Devices with Functional Safety are marked accordingly. For information regarding the
marking please comply with the application manual “Functional Safety”.
