BONFIGLIOLI Agile User Manual

Options
FTV003B-AGL

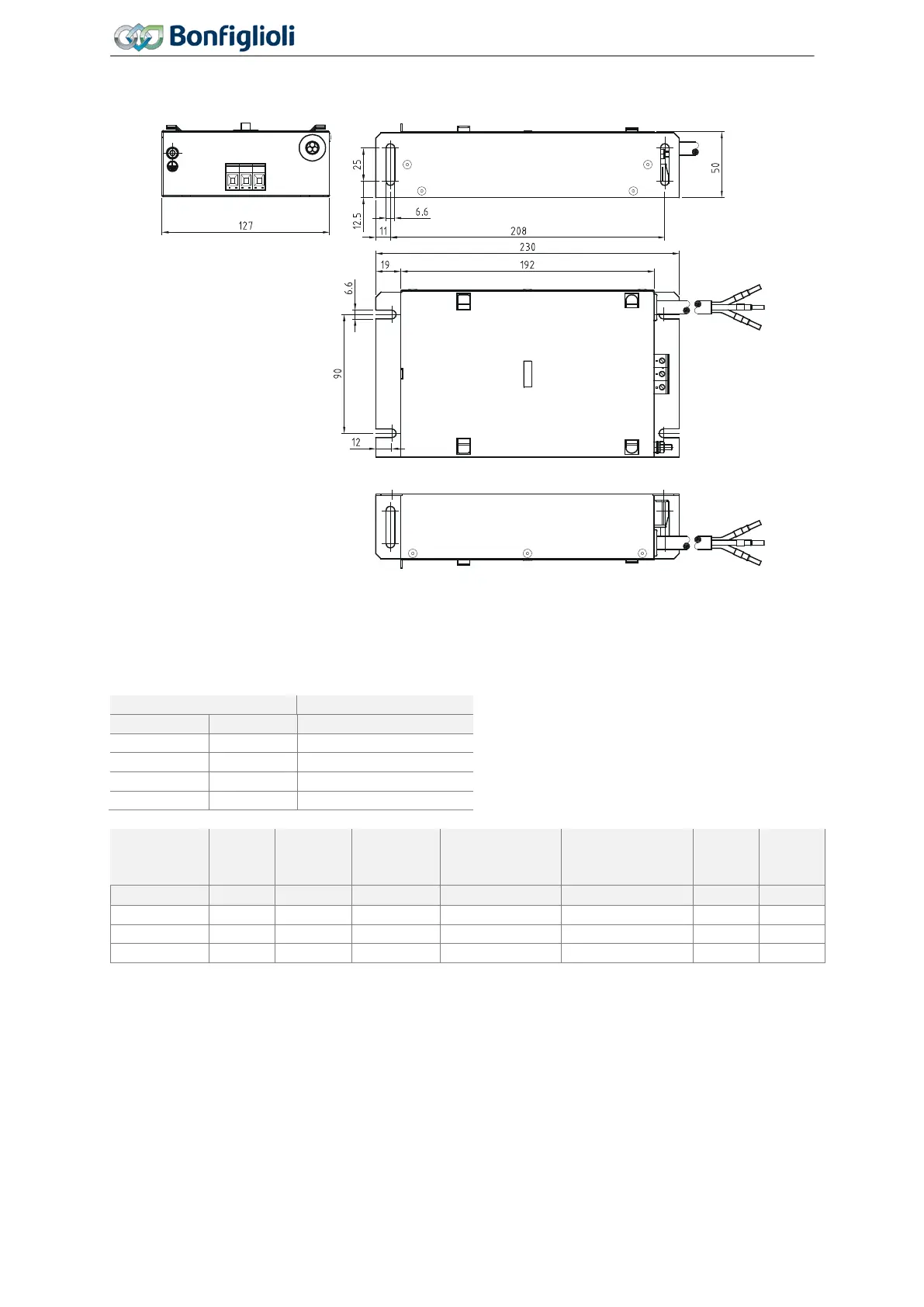

12.5.2 Booktype filter
The filter can be installed next to the frequency inverter onto the mounting plate. The connection
terminal consists of a safety terminal block.
Frequency inverter
Recommended filter
kW
Size
Type
0.25 … 2.2
1
FTV007A
3.0 … 4.0
2
FTV016A
5.5 … 7.5
3
FTV016A
9.2 … 11.0
3
FTV030A
Filter
Rated
current
Rated
voltage
Operating
frequency
Operational
leakage cur-
rent
Operational
temperature
range
Power
loss
1)
Weight
Type
A
V
Hz
mA
°C
W
kg
FTV007A
7
3x480
50/60 Hz
33
-25 … 100
3.8
0.5
FTV016A
16
3x480
50/60 Hz
33
-25 … 100
6.1
0.8
FTV030A
30
3x480
50/60 Hz
33
-25 … 100
11.8
1.2
1)
At 25 °C, 50 Hz.
1L 2L 3L
L2'
L
1
'
L
3
'
L1'
L
3
'
L
2
'
302
Operating Instructions
Agile 06/2013 Input filter
