162/188 Maintenance and repair
Bosch Rexroth AG, MIT: ActiveMover, 3 842 564 874/2021-04

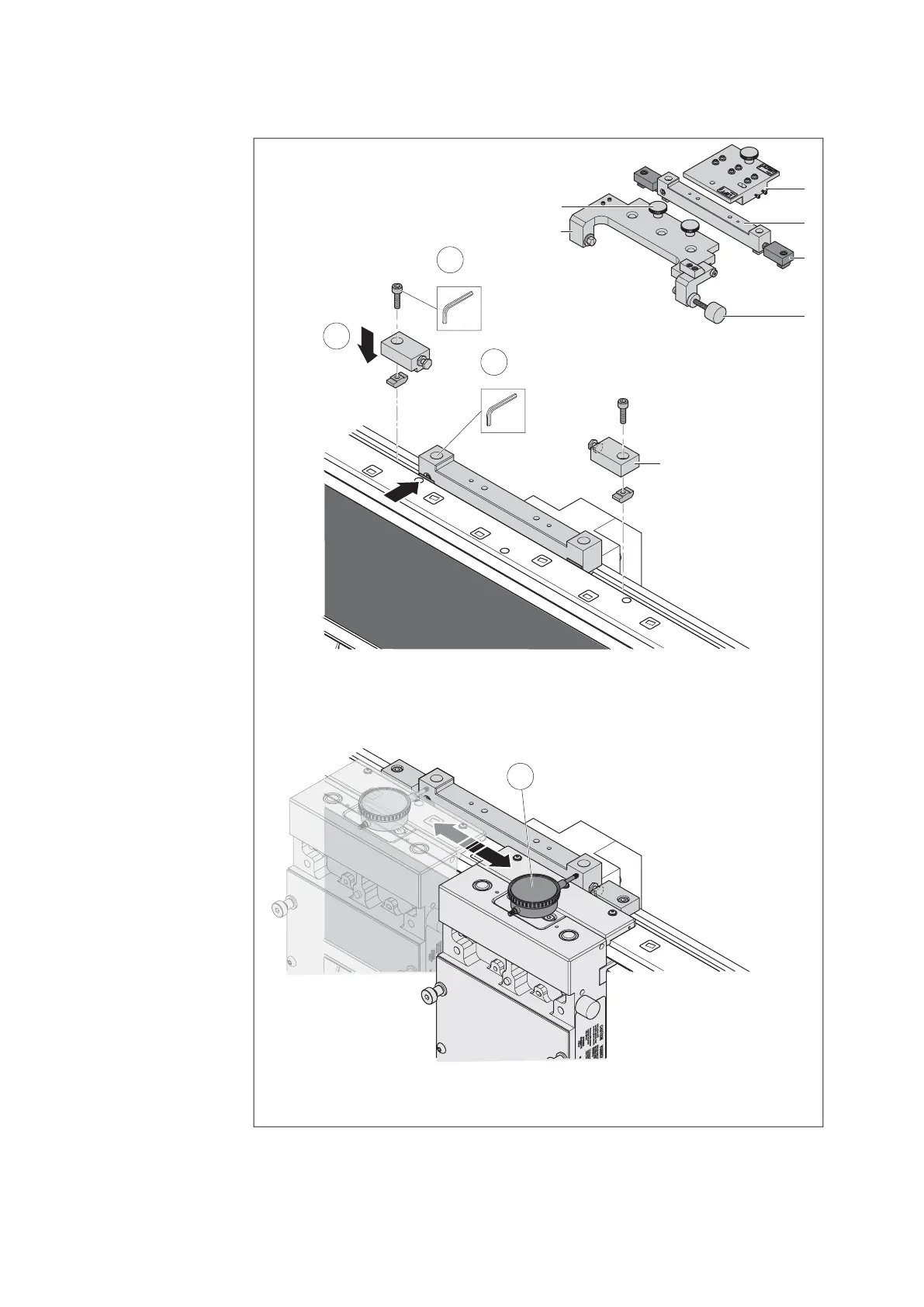

Fig. 120:
SW4
2x
4
SW4
2x
6
5
B
A
C
E
D
F
C
7
557 186-109
Assembling the calibration set (2)
4. Tighten the screws of
the fi xing element.
5. Install the adjustment
blocks on both sides of
the fi xing element.
6. Tighten the locking
screws.
7. For greater precision,
you can also check/set
the parallelism of the
fi xing element to the
upper V-rail using a dial
gage mounted on a WT.
