Fig. 124:
B
A
C
E
D
F
27
25
25
SW4
24
26
SW4
24 26
557 186-113

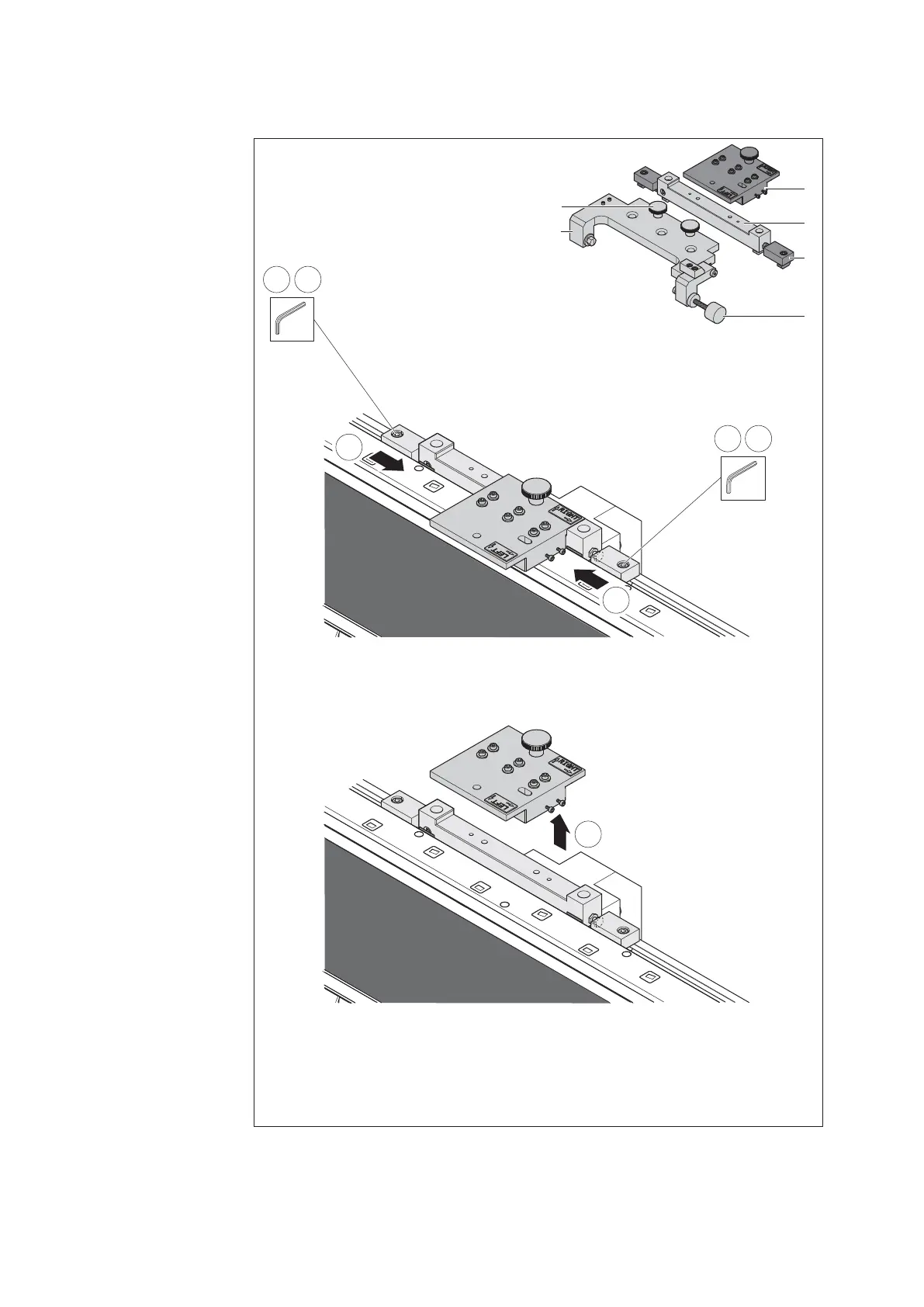

Aligning the fi xing element with an encoder (4)
24. Loosen the locking
screws of both
adjustment blocks.
25. Push the adjustment
blocks against the fi xing
element.
26. Tighten the locking
screw.
27. Disassemble the position
indicator.
