26/188 About this product
Bosch Rexroth AG, MIT: ActiveMover, 3 842 564 874/2021-04

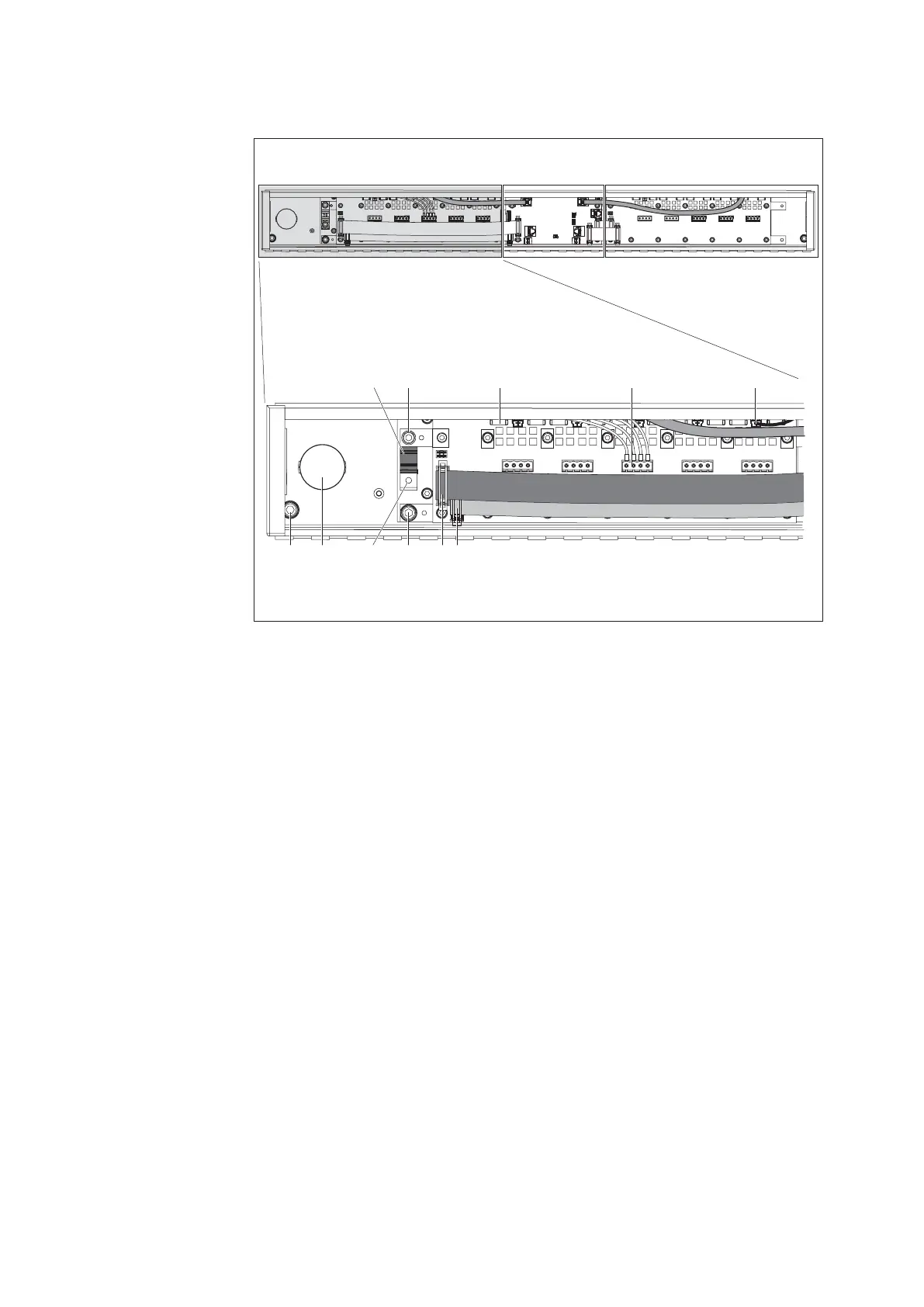

Fig. 10:
50
CBEDA
KJGF
IH
557 186-10
Printed circuit board (coil driver) left (here with connected voltage supply)
A:
50 ampere fuse
B:
Power supply cable
connection (28 V)
C:
Fuse (coil)
D:
Plug connector (coil)
E:
Thermal resistance
F:
Connection for
grounding cable
G:
Motor cable
connection (28 V)
H:
Motor cable
connection (0 V)
I:
Flat ribbon cable
(section module)
top left
J:
Flat ribbon cable
(section module)
bottom left
K:
Cable entry point
