Installation 59/188
3 842 564 874/2021-04, MIT: ActiveMover, Bosch Rexroth AG

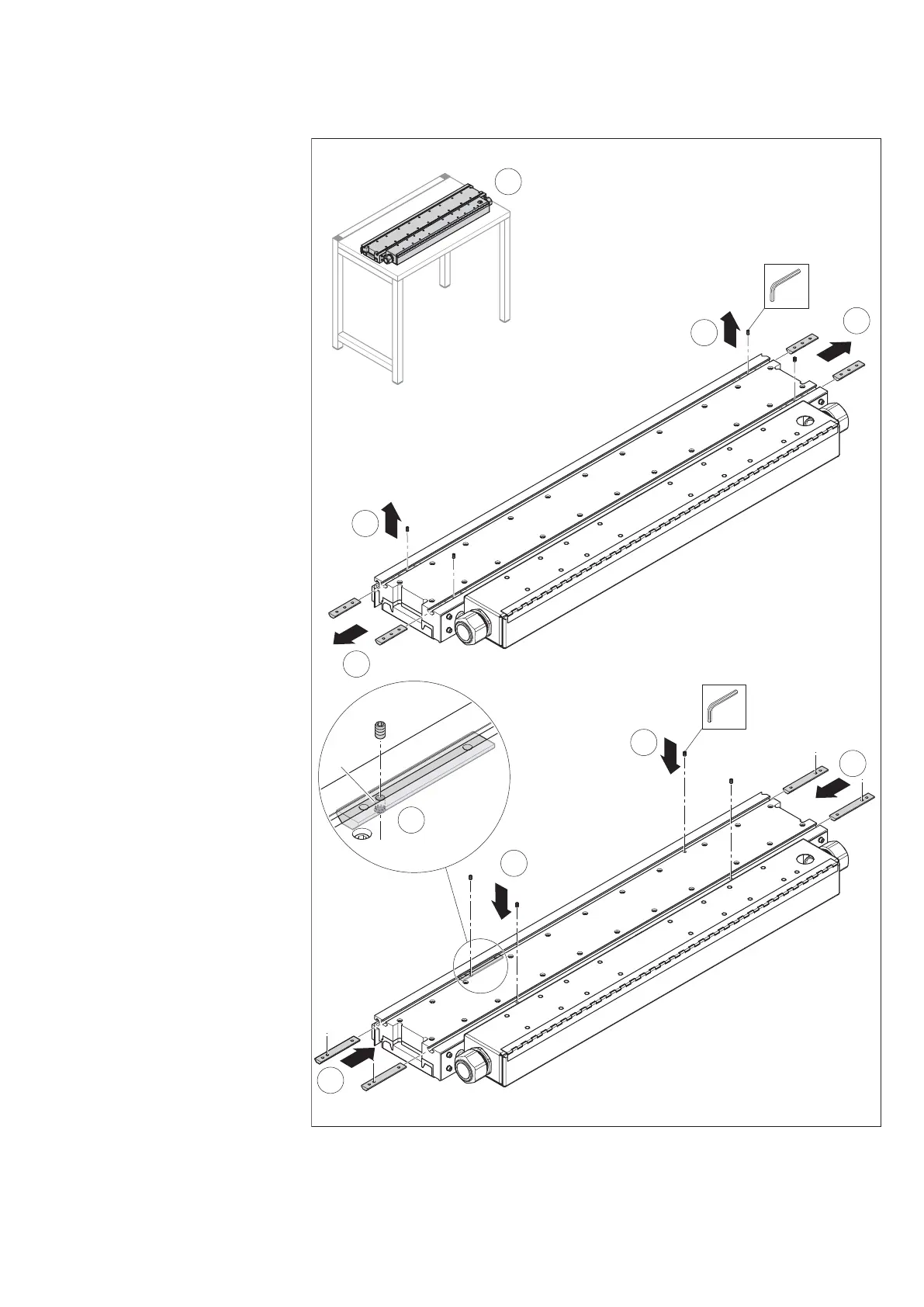

Fig. 35:
557 186-34
5
6
7
7
SW5
4x
6
6
6
8
8
SW5
4x
M
D
=7 Nm
7
!
Assembling the module holder on the section module (1)
5. Place the section module
on a fi xed surface.
6. Remove the sliding
blocks for fastening the
profi le connector.
7. Slide the sliding
blocks of the module
holder into the slots
of the section module.
The thread for the
headless setscrew must
be located above the
index bore of the section
module!
8. Screw the headless
setscrews through the
sliding blocks into the
section profi le.
