Installation 67/188
3 842 564 874/2021-04, MIT: ActiveMover, Bosch Rexroth AG

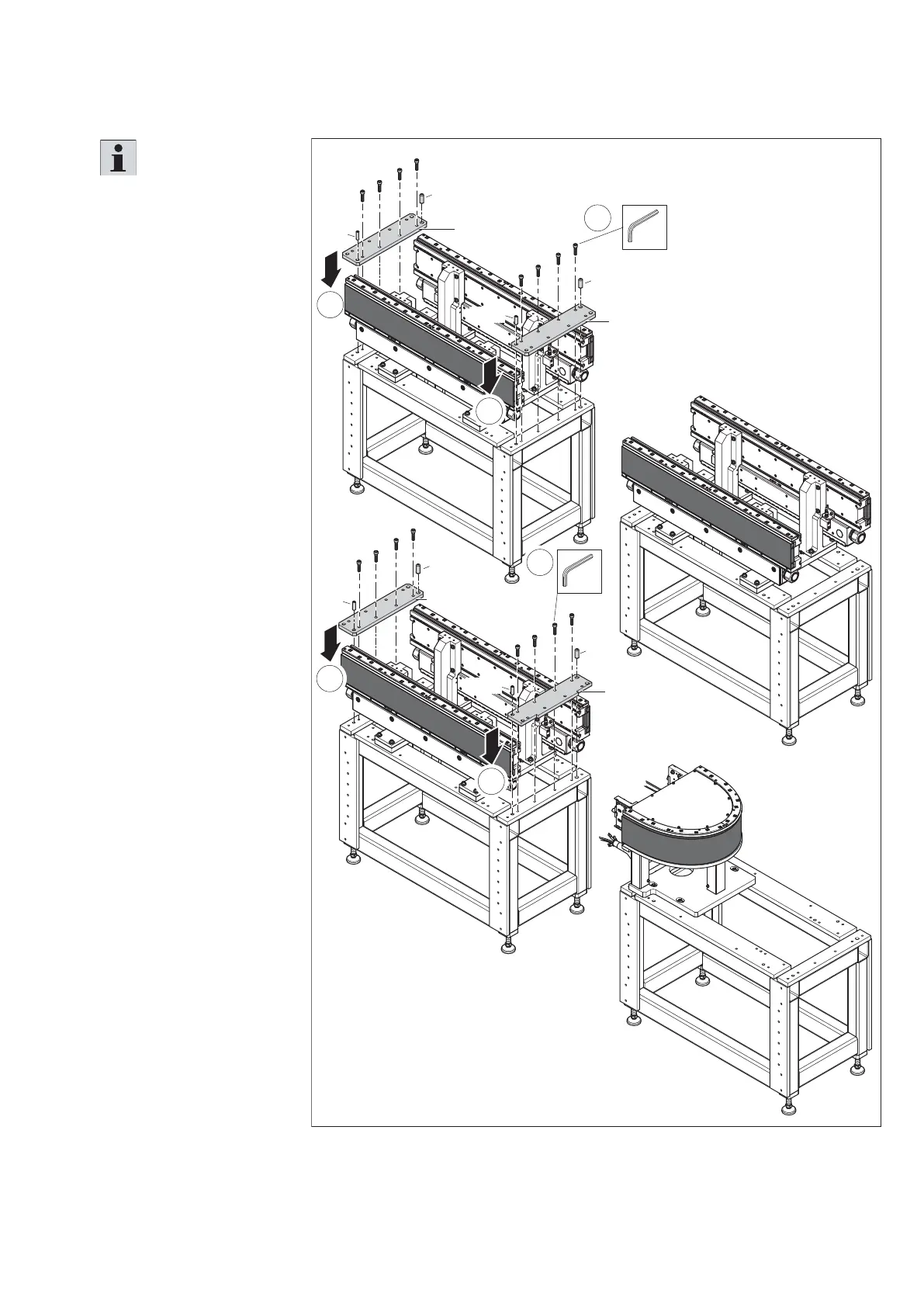

Fig. 43:
5
4
A
B
SW8
16x40
12x40
8x
M
D
=80 Nm
4
12x40
16x40
16x40
16x40
SW8
8x
M
D
=80 Nm
5
557 186-42
3 842 559 452
3 842 559 452
3 842 559 452
3 842 559 453
4
4
12x40
12x40
A
B
Mounting the upper connection plate
Please note:
• As opposed to the
connection plate for the
section module, the top
connection plate for the
curve module has been
recessed on the left and
right.
• For mounting a short base
frame 3 842 559 451 on a
base frame 3 842 559 450
see fi g. 32 on page 56
Depending on the system
section to be connected,
use the following
connection kits:
• Section module
connection kit
3 842 559 452
• Curve module connection
kit 3 842 559 453
A:
Reference system
section
B:
System section to be
connected
4. Place both upper
connection plates on
the base frame of the
reference system
section (A) and fi x them
with cylinder pins.
5. Tighten both upper
connection plates.
