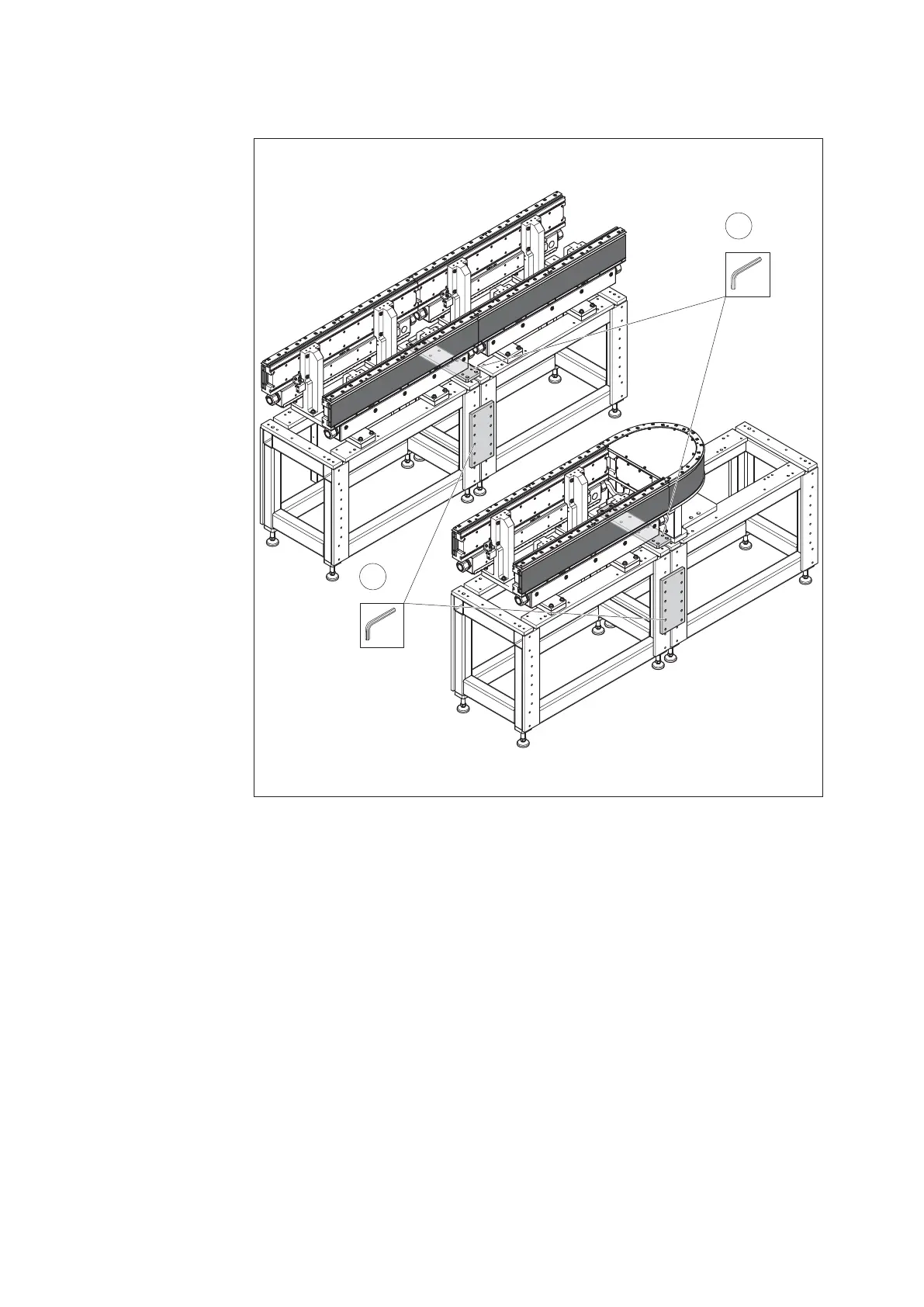

Fig. 46:
557 186-134
12
SW8
8x
13
SW8
12x
M
D
=80 Nm
Connecting system sections (3)
12. Tighten the upper
connection plate.
13. Screw down the side
connection plates
(on both sides).
 All other system sections
are mounted in the
same way.
