Installation 69/188
3 842 564 874/2021-04, MIT: ActiveMover, Bosch Rexroth AG
Fig. 45:
557 186-44
!
X = 0,5 mm
11
!
X = 0,5 mm
11
!
X = 0,5 mm
11

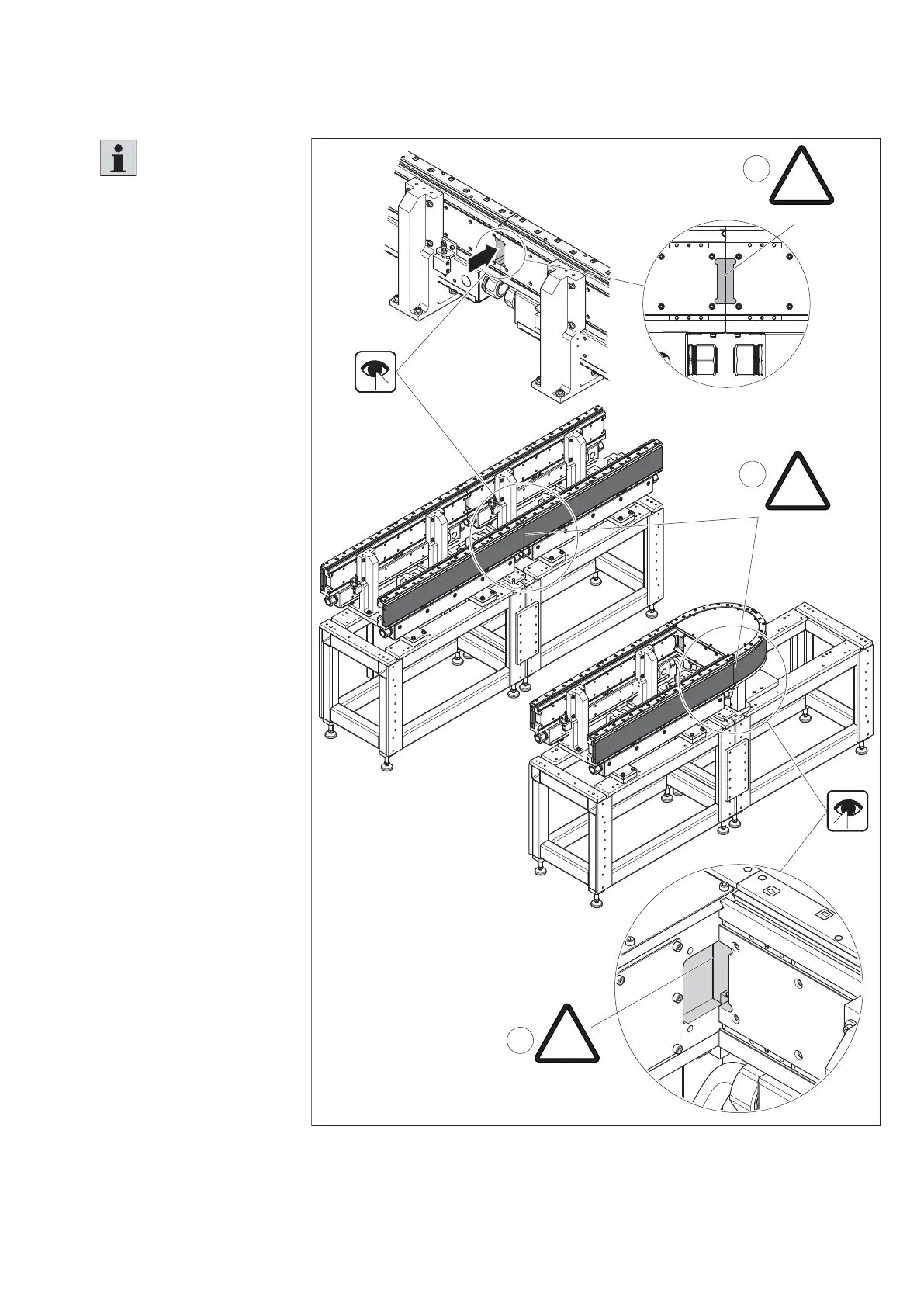

Connecting system sections (2)
Please note:
Due to thermal expansion
during operation, the
modules must always have
a distance of X = 0.5 mm.
Required tools
• Plastic feeler gage 0.5 mm
11. Make sure that all
modules have a distance
of X = 0.5 mm.
