Bosch Rexroth ActiveMover - Page 77

Installation 77/188
3 842 564 874/2021-04, MIT: ActiveMover, Bosch Rexroth AG

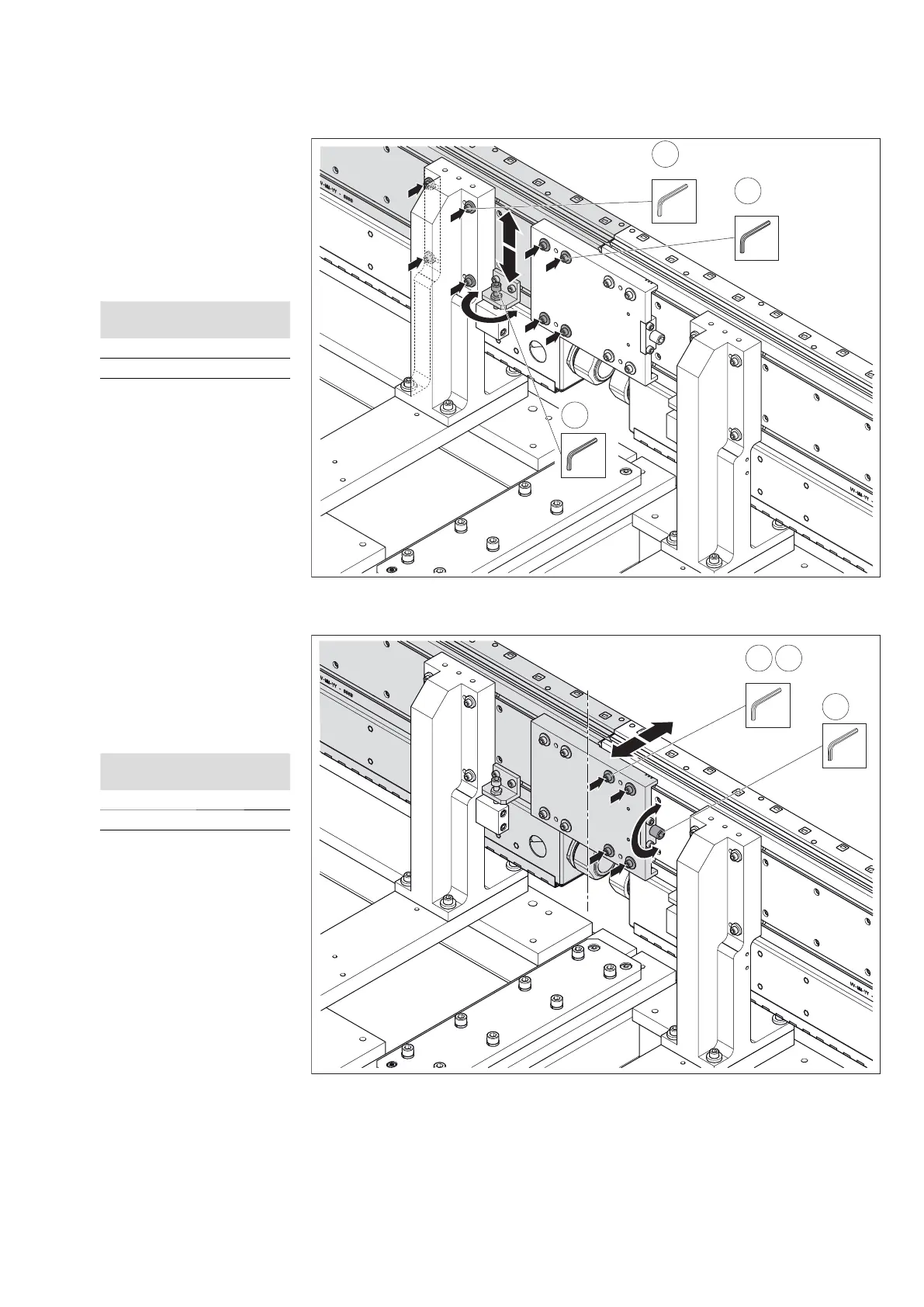

Fig. 53:
557 186-50
2
SW5
4x
M
D
=16 Nm
2
SW5
4x
1
SW5
4x
M
D
=16 Nm
SW6
3
Setting the height offset ≤ ±0.05 mm, section module to section module
Fig. 54:
557 186-51
1 3
SW5
4x
M
D
=16 Nm
2
SW6
Setting the lateral offset ≤ ±0.05 mm, section module to section module
1. Loosen the fi xing screws
of the module holder.
2. Loosen the fi xing screws
of the profi le connector.
3. Set the height offset on
the setting screw until
the guide rails are fl ush.
Rotational
direction
Adjustment
Right upward
Left downward
4. Tighten the fi xing screws
of the module holder
and profi le connectors
and tighten the setting
screw.
1. Loosen the fi xing screws
of the profi le connector.
2. Set the setting screw of
the adjustment unit until
the guide rails are fl ush.
Rotational
direction
Adjustment
Right inward
Left outward
3. Tighten the fi xing screws
of the profi le connector.
