78/188 Installation
Bosch Rexroth AG, MIT: ActiveMover, 3 842 564 874/2021-04

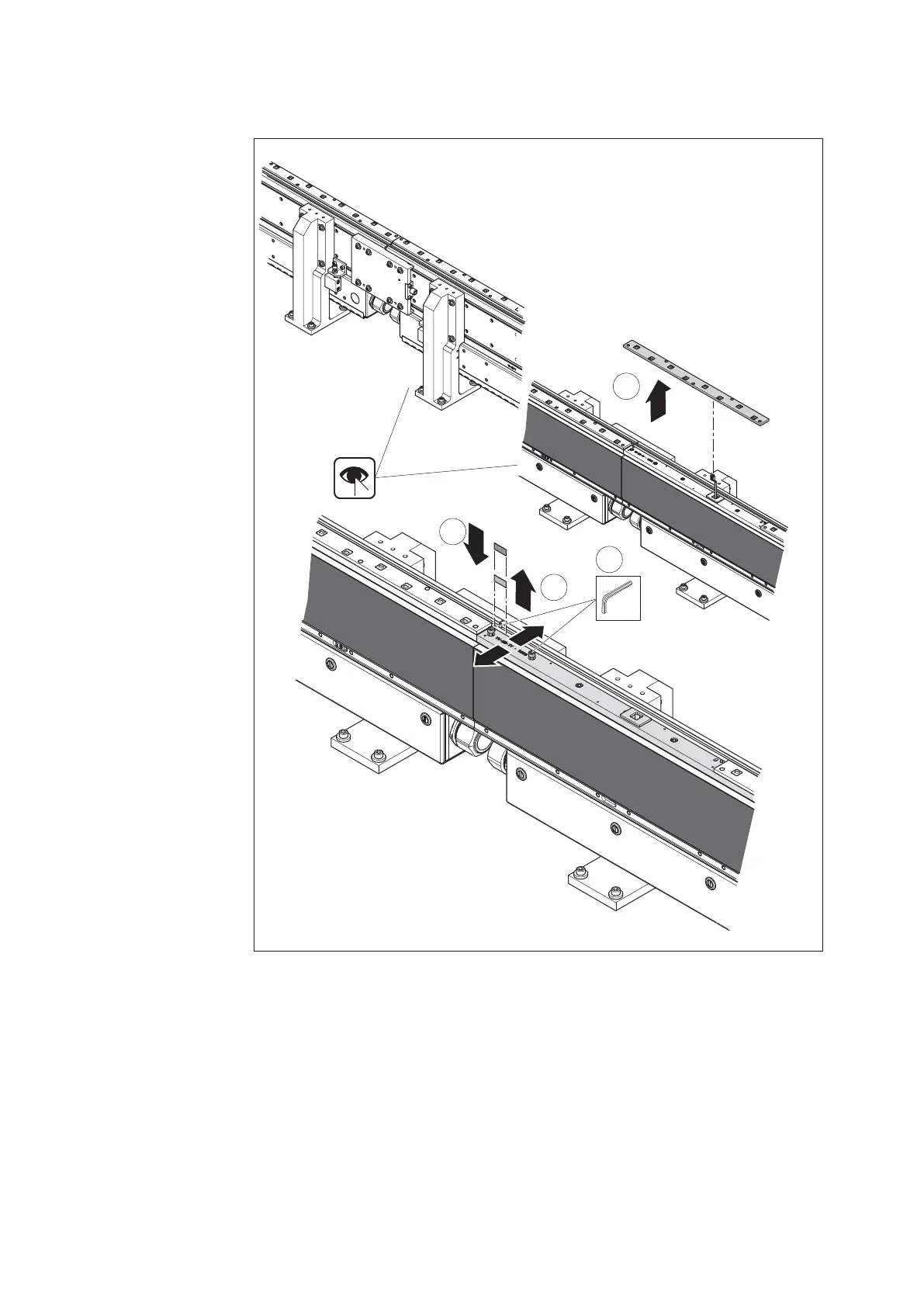

Fig. 55:
557 186-52
4
2
3
1
SW5
M
D
=16 Nm
Setting the lateral offset > ±0.05 mm, section module to section module
1. Remove the measuring
system (encoder)
(see chapter 10.4.23).
2. Loosen the screws of the
upper V-rail.
3. Remove the installed
intermediate layer
(0.25 mm) on the upper
V-rail to be adjusted.
4. Insert an intermediate
layer with the necessary
thickness at the same
position.
 Install upper V-rail
and measuring system
(encoder) in reverse
order.
