84/188 Installation
Bosch Rexroth AG, MIT: ActiveMover, 3 842 564 874/2021-04
NOTICE
Risk of damage due to improper assembly of the workpiece pallets!
If the workpiece pallet is put on the section module or curve module too hardly,
this may damage the WT and the cover of the section or curve module.
 Only use the supplied removal tool.
 Always hold the removal tool with both hands.
 Be prepared for high forces of attraction.
 Place the WT carefully and as gently as possible on the section or curve module.

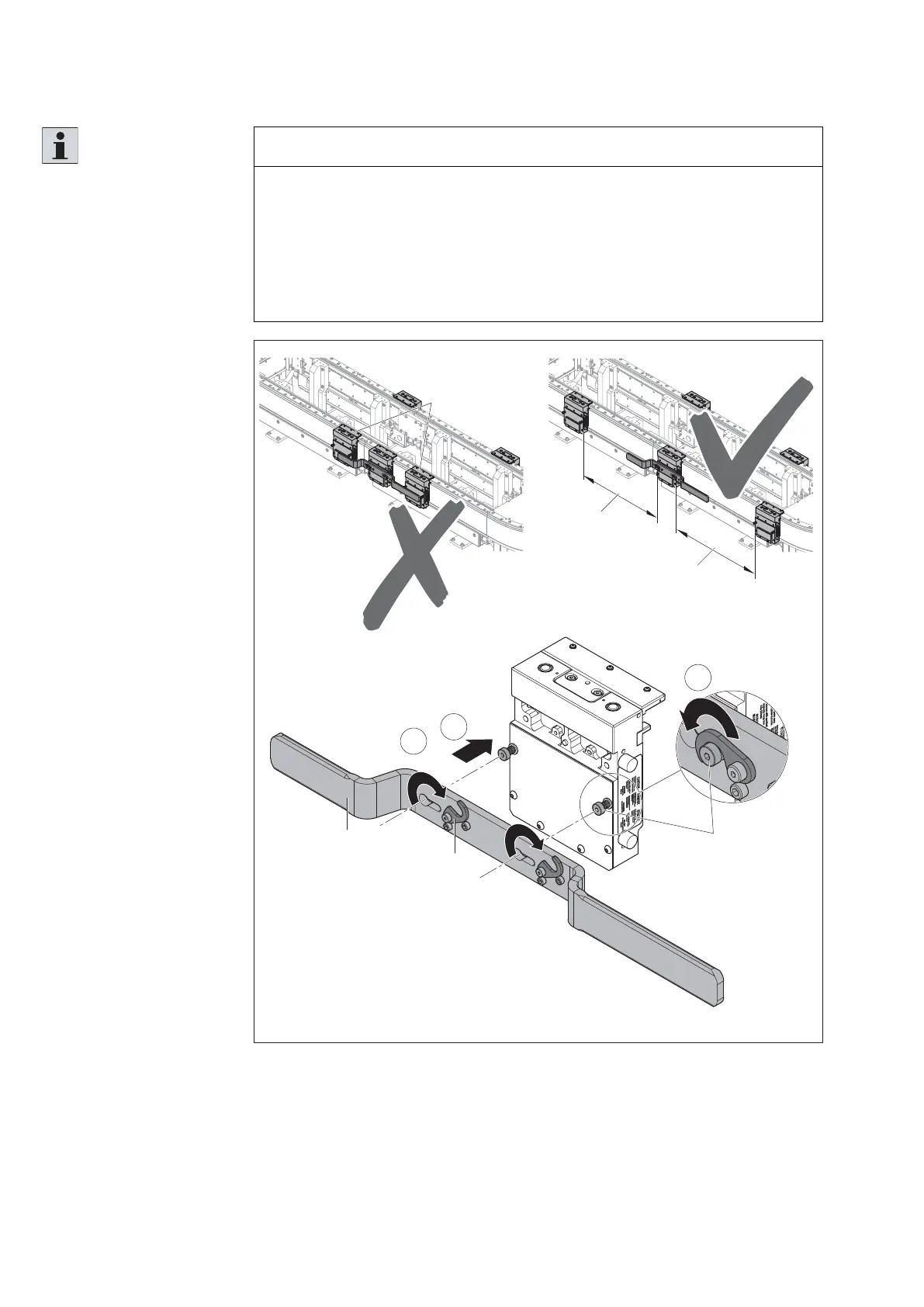

Fig. 60:
557 186-54
A
B
2
3
42x
C
!
min. 400 mm
min. 400 mm
!
!
Assembling the workpiece pallet (1)
Please note:
• Keep the protective plates
in a safe place. Protective
plates must be put back in
place during disassembly!
• Always place the
protective plates with
the plastic cover on the
magnetic kit!
• The protective equipment
for the discharge brushes
brush must be inserted
into the slot underneath
the upper V-rail.
1. Remove all workpiece
pallets in the area of the
removal tool
2. Open the locking
hooks (B) on the
removal tool (A).
3. Install the removal tool
(short arm left).
4. Secure the removal tool
with the locking
hook (B) and the locking
screws (C).
