Installation 85/188
3 842 564 874/2021-04, MIT: ActiveMover, Bosch Rexroth AG
Fig. 61:
5
9
7
8
6
557 186-55

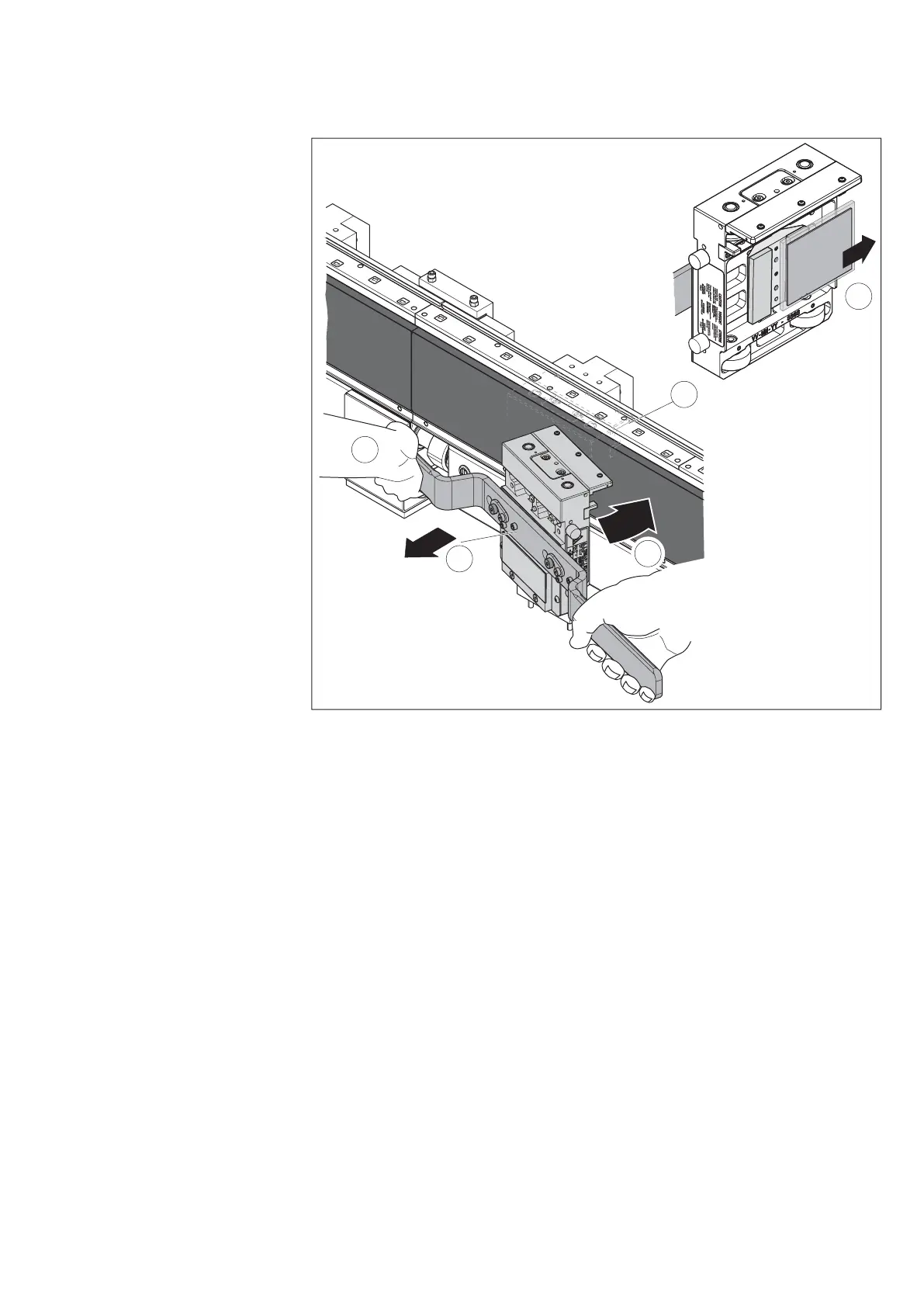

Assembling the workpiece pallet (2)
5. Pull off the protective
plate.
6. Hold the removal tool
well, with both hands
and place the workpiece
pallet on the left side of
the module.
7. Tilt the workpiece
pallet to the right of the
section or curve module.
8. Disassemble the removal
tool.
9. Check the distance
of the measuring
system (encoder and
magnetic strips),
see chapter 10.5.1.
Disassembly is done in
the reverse order.
