4-9
Confidential

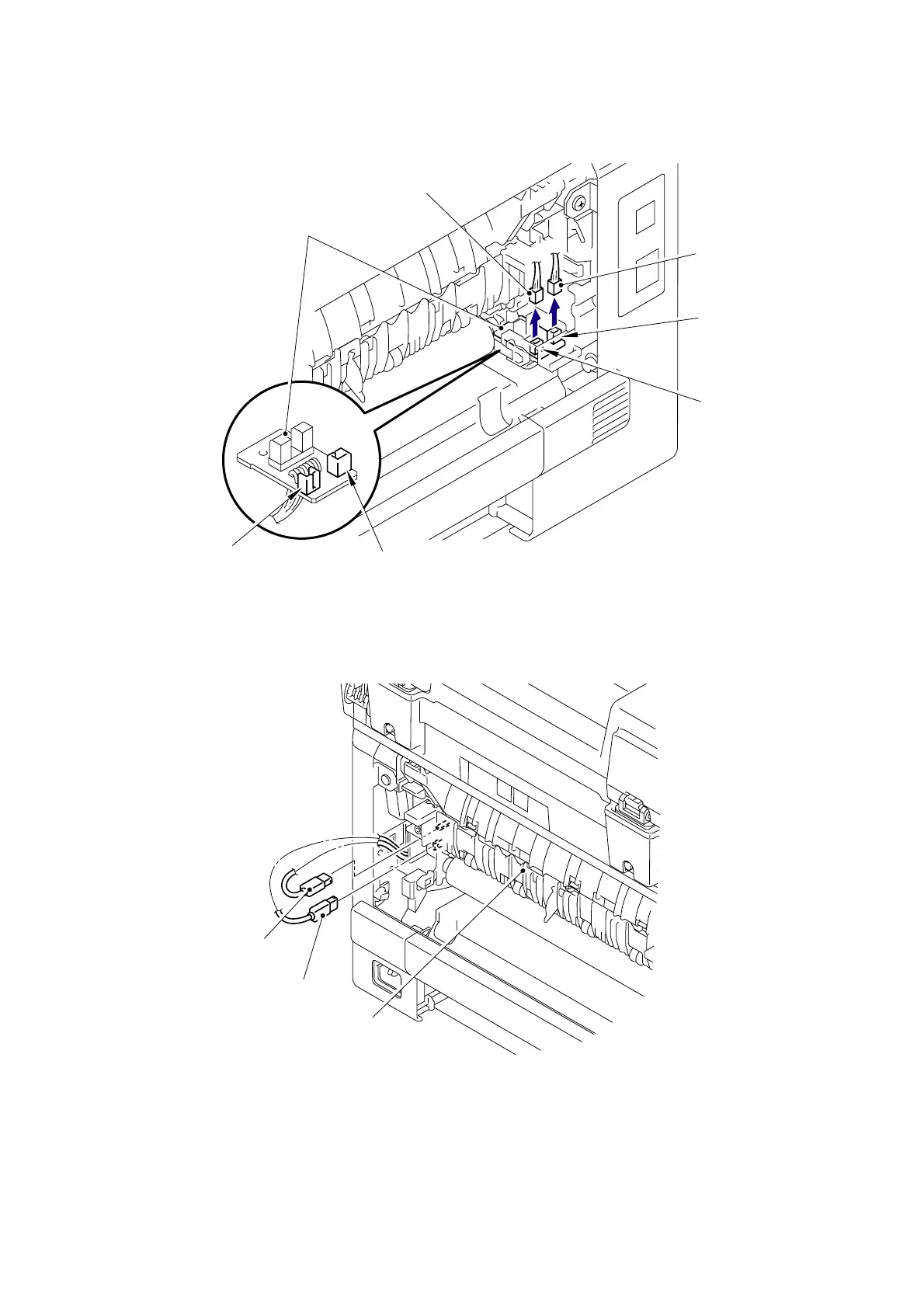

(10) Disconnect the two Connectors (CN1, CN3) from the Eject front sensor PCB ASSY.
Fig. 4-9
(11) Disconnect the two Electrode terminals from the Fuser unit.
Fig. 4-10
Connector
CN1
Eject front sensor PCB ASSY
CN1
CN3
Connector
CN3
<Back side>
Electrode terminal (small)
Electrode terminal (large)
Fuser unit
<Back side>
