Brother MFC-9010CN Service Manual

5-111
Confidential

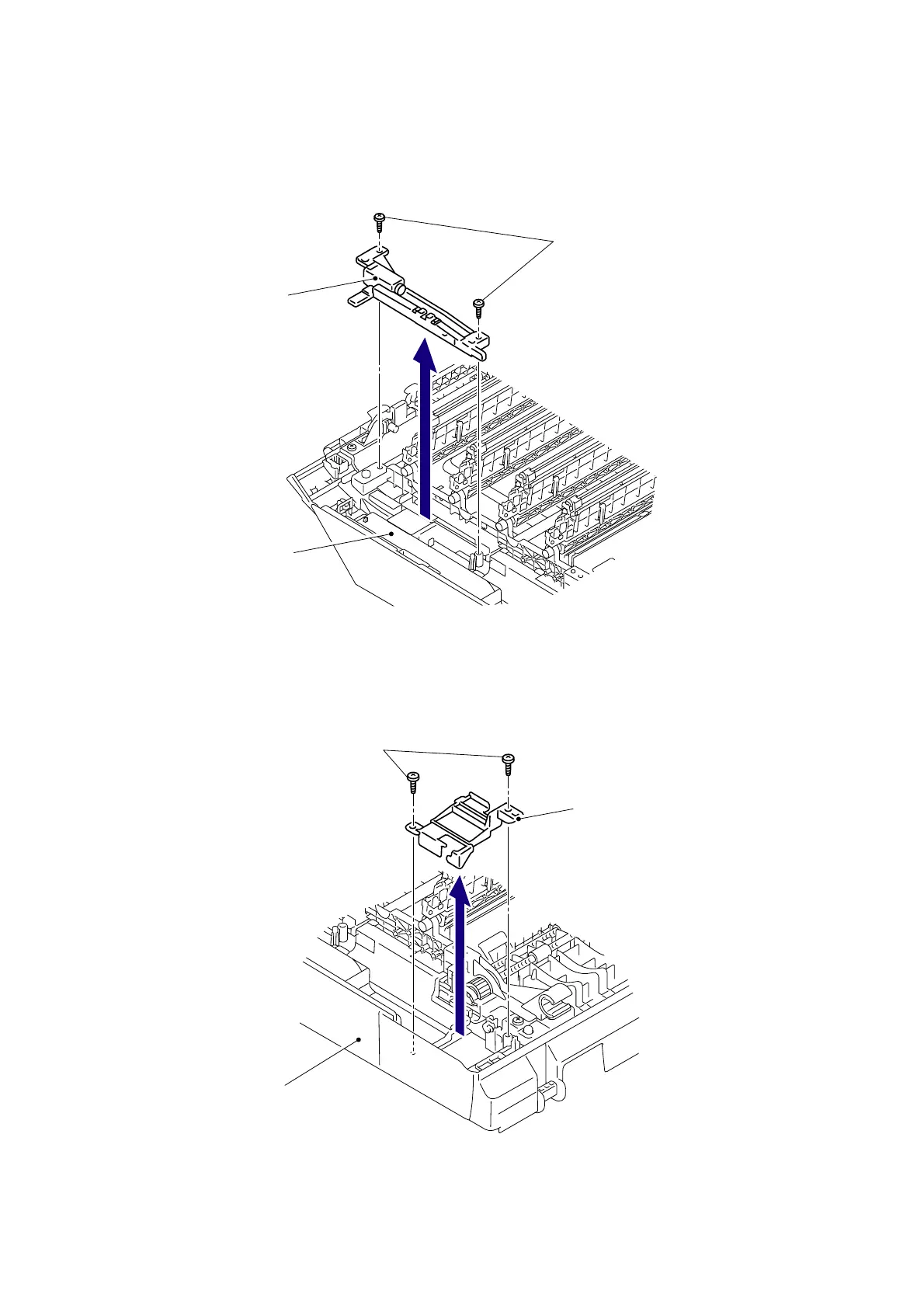

8.46 TC Release Lever
(1) Remove the two Taptite bind B M4x12 screws, and then remove the Arm guide L from the
Joint cover sub ASSY .
Fig. 5-123
(2) Remove the two Taptite bind B M4x12 screws, and then remove the TC harness cover 2
from the Joint cover sub ASSY.
Fig. 5-124
Taptite bind B M4x12
Joint cover sub ASSY
Arm guide L
Joint cover sub ASSY
Taptite bind B M4x12
TC harness cover 2
