1.4.3 Placement of scanner unit in position for transportation (Function code 06)
<Function>
This function is to move the scanner unit in position for transportation located at the left end.
When you fix the machine and check its operation, you need to perform this function last
before packing and shipping.
<Operating procedure>
(1) Press the 0 and 6 buttons in this order in the initial state of the maintenance mode.
The scanner unit moves to the designated position for transportation located at the left
end. The “MAINTENANCE 06” is displayed until the scanner unit is placed in position.
When the document scanner unit is placed in the position, the “SCAN LOCKED” appears
on the LCD.
(2) When the Stop/Exit button is pressed, the machine beeps for one second and returns to
the initial state of the maintenance mode.
1.4.4 ADF Performance Test (Function code 08)
<Function>
The machine counts the documents fed by the automatic document feeder (ADF) and displays
the count on the LCD for checking the ADF performance.
<Operating procedure>
(1) Set documents. (Allowable up to the ADF capacity.)
The “DOC. READY” will appear on the LCD.
(2) Press the 0 and 8 buttons in this order. While counting the documents, the machine feeds
them in and out, displaying the current count on the LCD as shown below.
(3) When the Stop/Exit button is pressed, the machine cancels this operation, beeps for one
second and returns to the initial state of the maintenance mode.
Note:
Please instruct end users to perform this function if possible before packing and shipping
their FAX machine to a sales agent or a service dealer for the purpose of repair.
(For information on the procedure to make the user operate the maintenance mode, refer to
“1.2 How to Enter the End User-accessible Maintenance Mode” in this chapter.)
Note:
- When the document scanner unit fails to move to the transport position or when the
maintenance mode: code 06 is executed while a reading error occurs, “SCAN LOCK
ERROR” appears.
- After the scanner unit has moved to the transport position, the reading operations such as
copy cannot be performed.

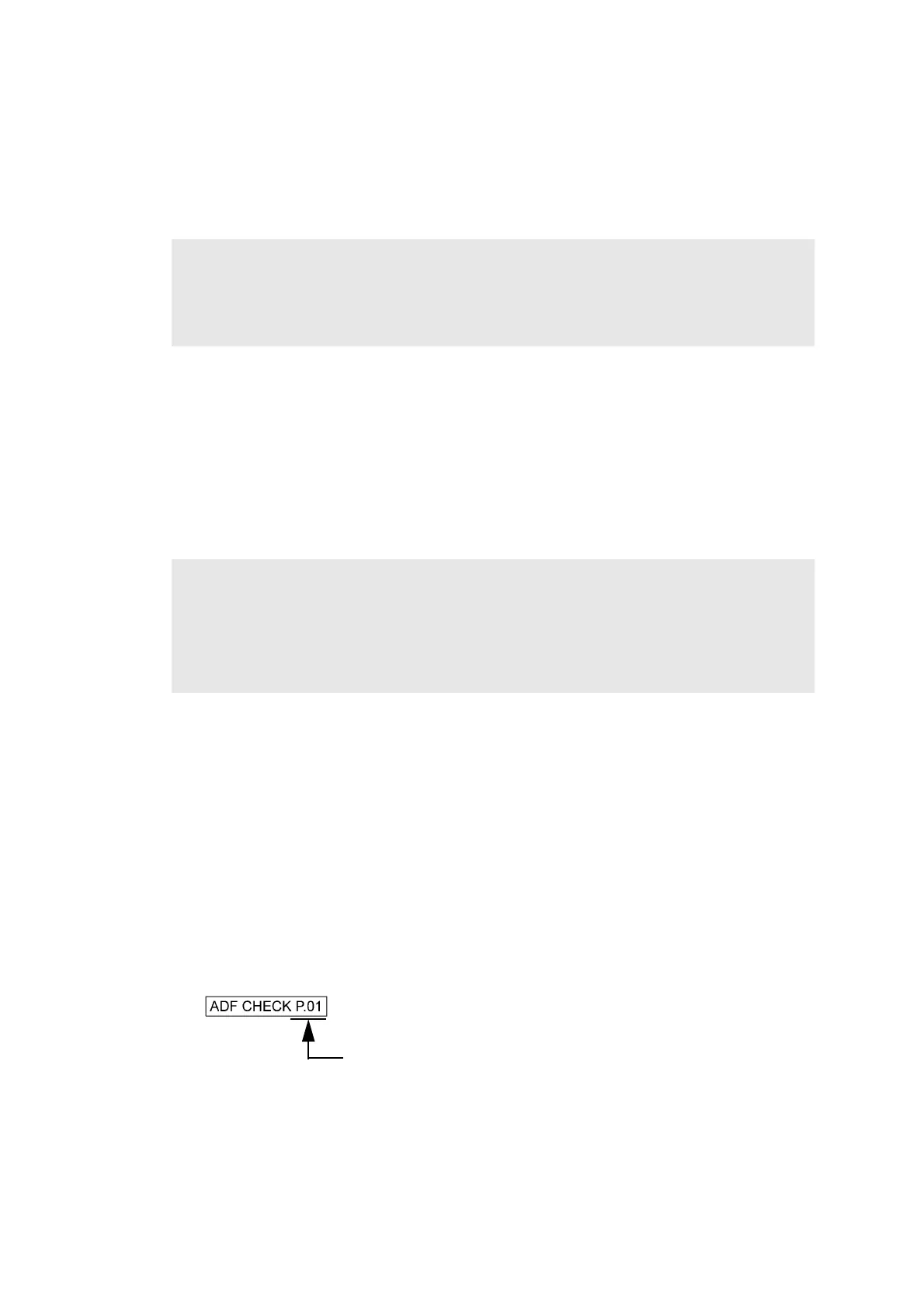

Current count (1st page in this example)
