Brother MFC-9010CN Service Manual

5-75
Confidential
8.23 Paper Stack Lever

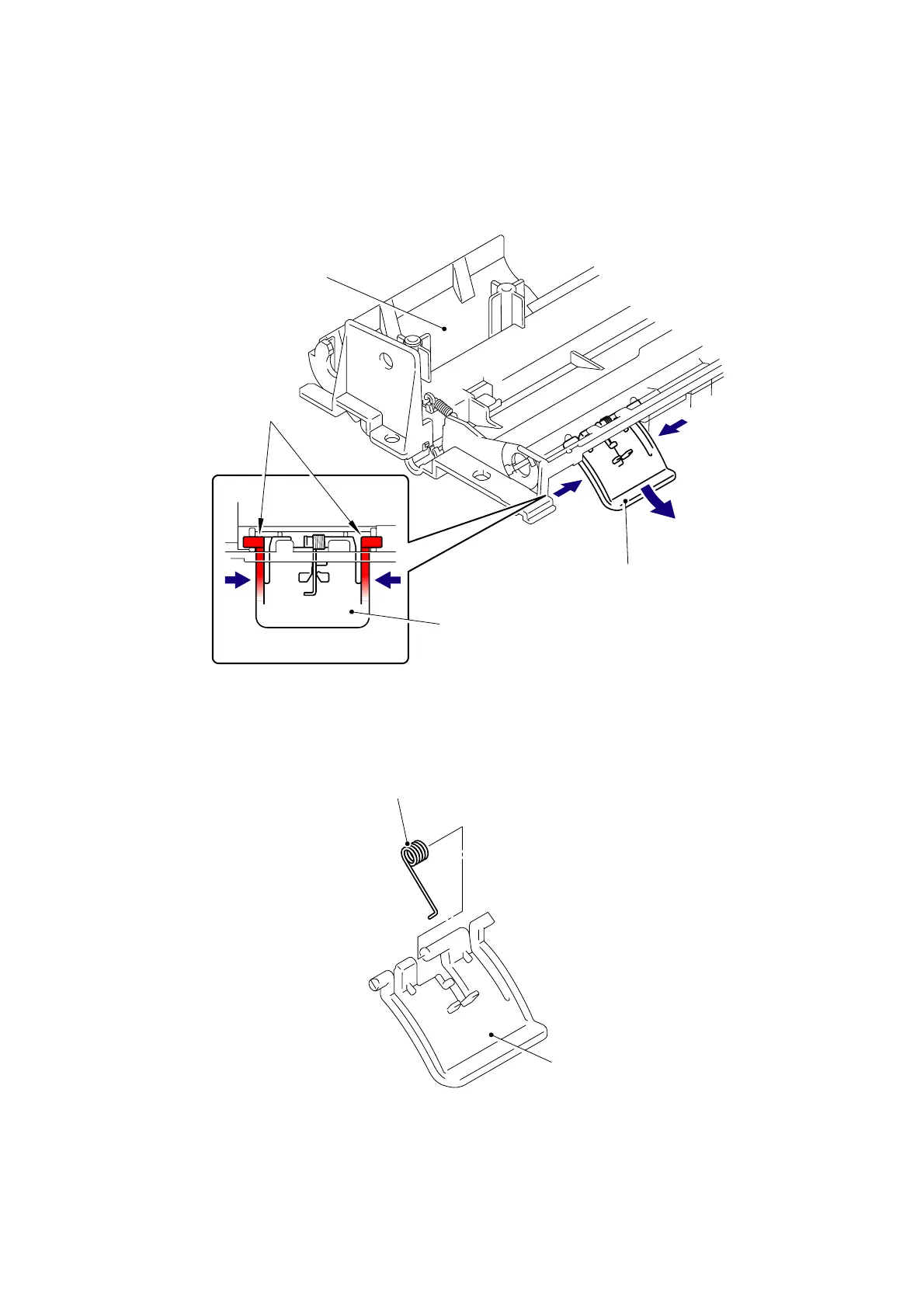

(1) Push the both ends of the Paper stack lever on the left side inward to remove the Pins,
and remove the Paper stack lever from the Lower document chute ASSY.
(2) Remove the Paper stack lever on the right side in the same way.
Fig. 5-64
(3) Remove the Paper stack lever spring from the Paper stack lever.
Fig. 5-65
Paper stack lever
Lower document chute ASSY
Lower document chute ASSY
Pin
1a
1a
1a1a
1b
Paper stack lever
Paper stack lever spring
