Brother MFC-9010CN Service Manual

5-124
Confidential
8.51 LED ASSY/Holder Hook

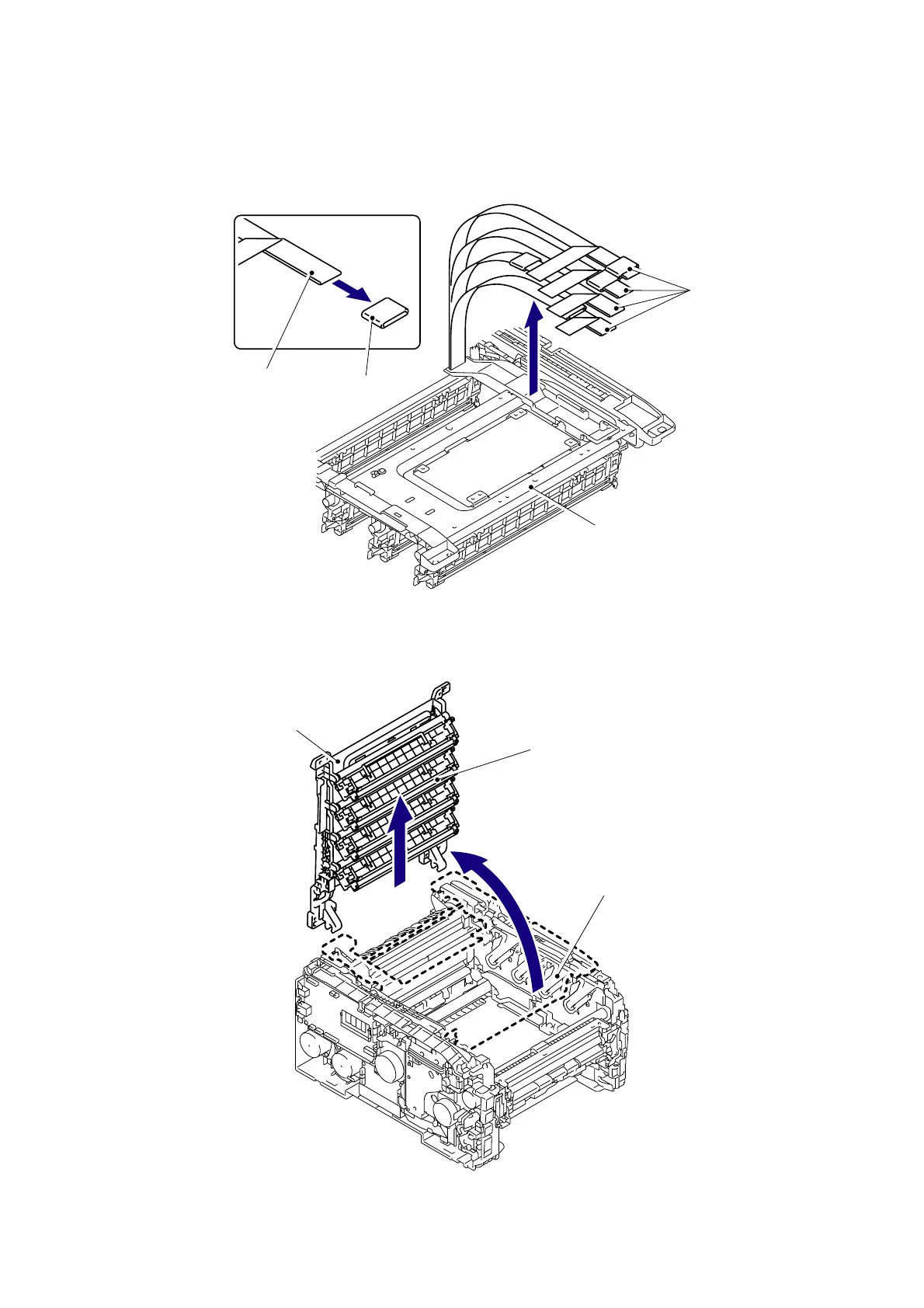

(1) Remove the four FFC sheet from the Sub frame ASSY, and remove the Cores from each
of the FFC sheet.
Fig. 5-142
(2) Remove the Sub frame ASSY from the Main body, and place it with the LED ASSY side up.
Fig. 5-143
Sub frame ASSY
FFC sheet
FFC sheet
Core
Main body
Sub frame ASSY
2a
2b
LED ASSY
