4-5
Confidential
3.2.1 Fuser unit
<Uninstalling procedure>

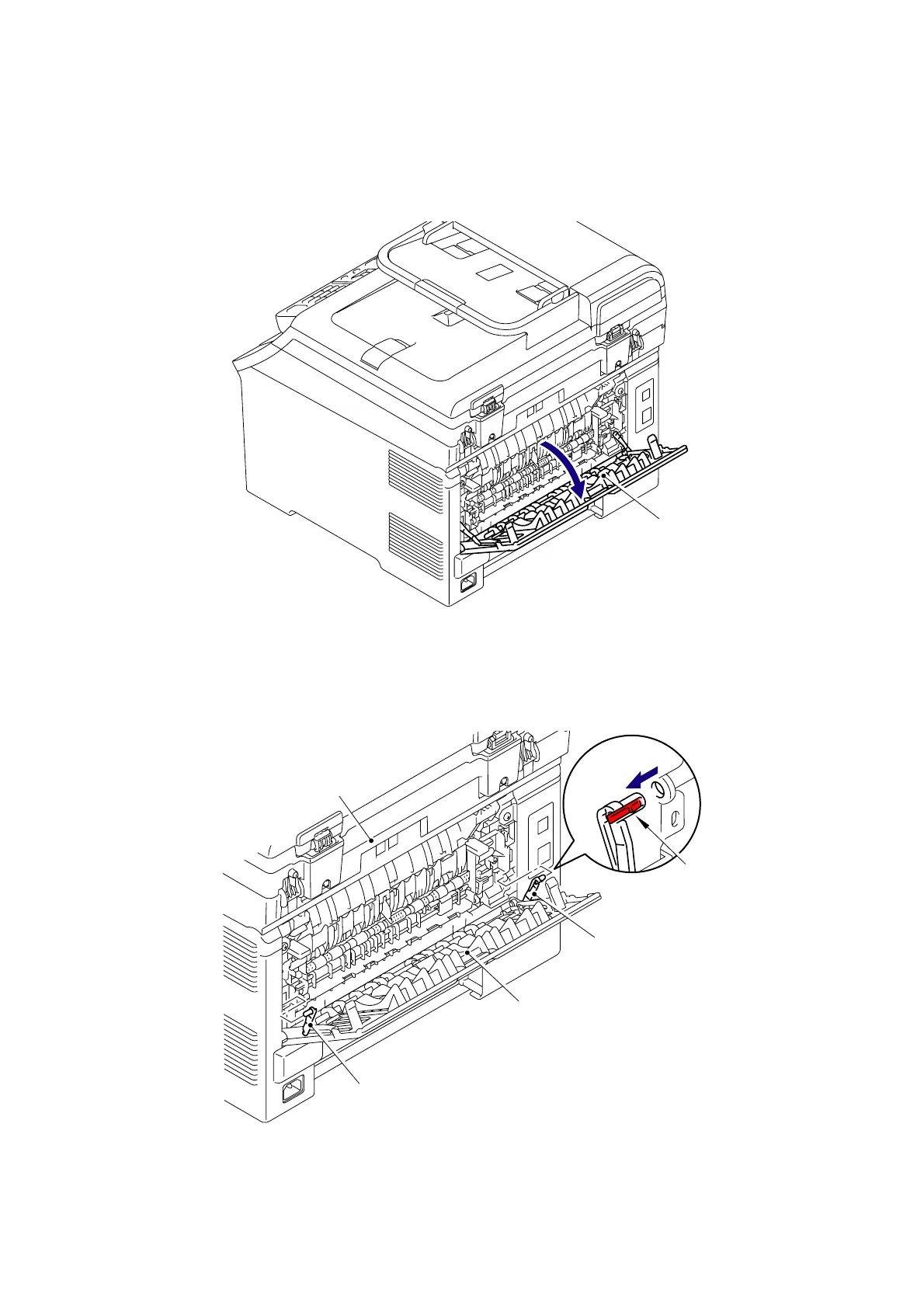

(1) Open the Back cover.
Fig. 4-1
(2) Release the Hook and remove the Back cover stopper L and R from the Main body.
Fig. 4-2
Back cover
<Back side>
Hook
Back cover stopper L
Back cover stopper R
Main body
<Back side>
Back cover
