5-206
Confidential

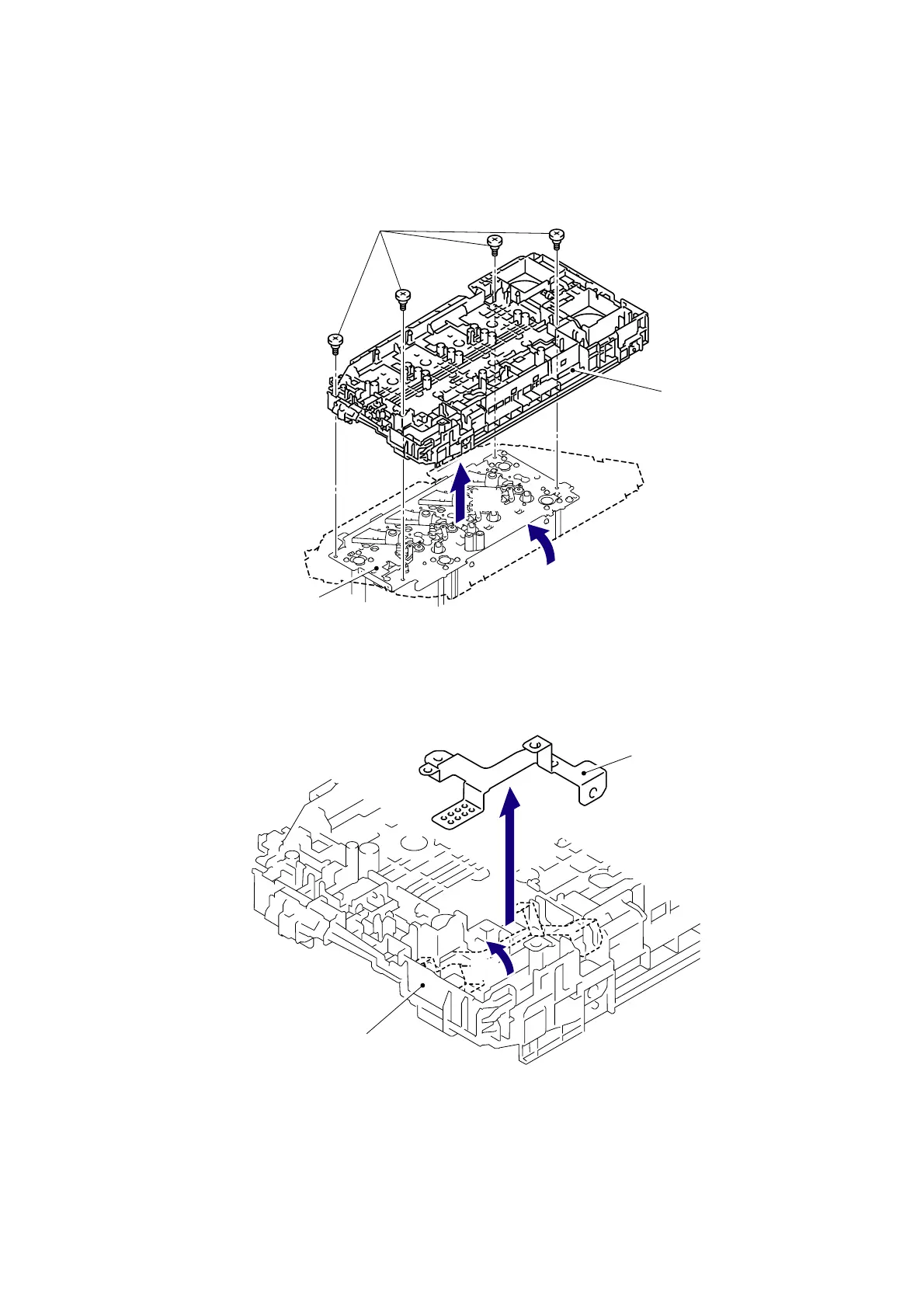

8.90 Side Frame R
(1) Remove the four Shoulder screws M3, and then remove the Side frame R from the Base
frame unit.
Fig. 5-276
(2) Remove the HVPS ground plate 1 from the Side frame R.
Fig. 5-277
Shoulder screw M3
Base frame unit
Side frame R
1a
1b
Side frame R
HVPS ground plate 1
2a
2b
