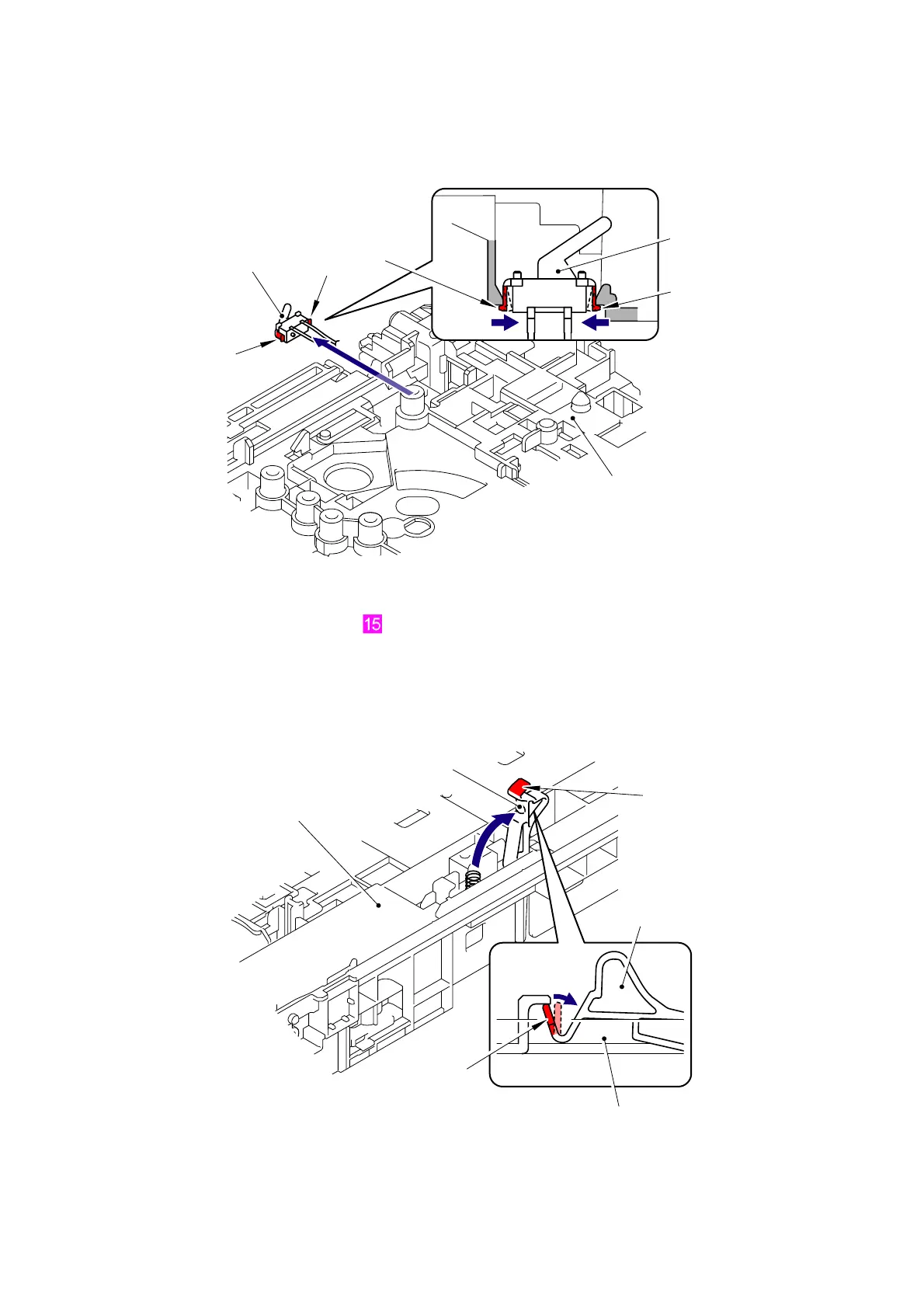

(3) Release the two Hooks of the Top cover open switch to remove the Top cover open switch
from the Side frame R.
Fig. 5-278
Harness routing: Refer to “ Develop Release Sensor PCB ASSY, Top Cover Open Switch,
Toner LED PCB ASSY.”
(4) Release the Hook of the Lock arm from the Side frame R.
Fig. 5-279
Hook
Side frame R
Top cover open switch
Hook
Hook
Hook
Top cover open switch
3a
3a
3b
Hook
Hook
Side frame R
Side frame R
Lock arm
4a
4b
Lock arm
