5-68
Confidential
8.21 ADF Sensor PCB ASSY

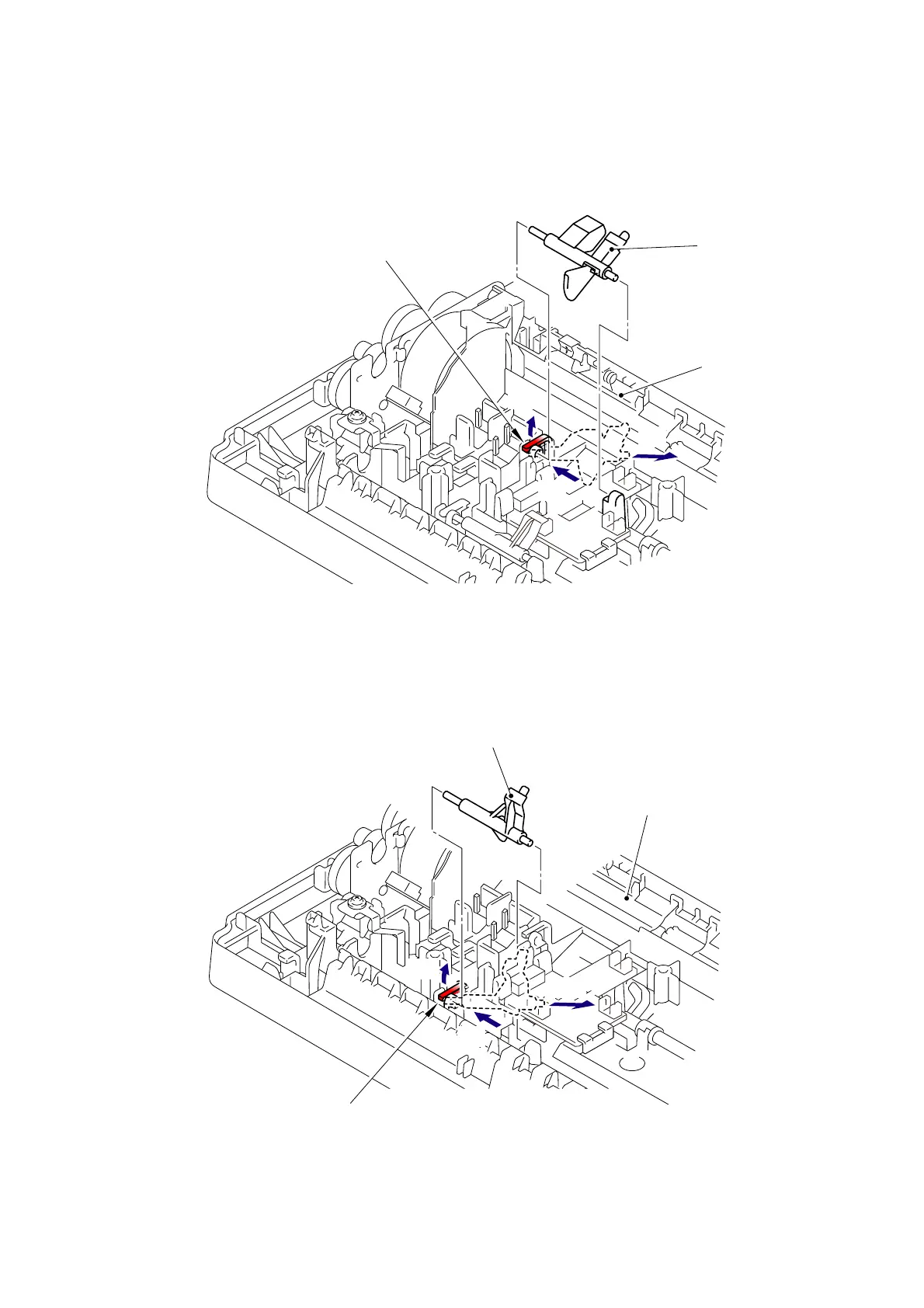

(1) Release the Hook to remove the Actuator F from the Lower document chute ASSY.
Fig. 5-52
(2) Release the Hook to remove the Actuator R from the Lower document chute ASSY.
Fig. 5-53
Hook
Lower document chute ASSY
Actuator F
1a
1b
1c
Hook
Lower document chute ASSY
Actuator R
2a
2b
2c
