Brother MFC-9010CN Service Manual

5-156
Confidential
8.65 Manual Sensor PCB ASSY

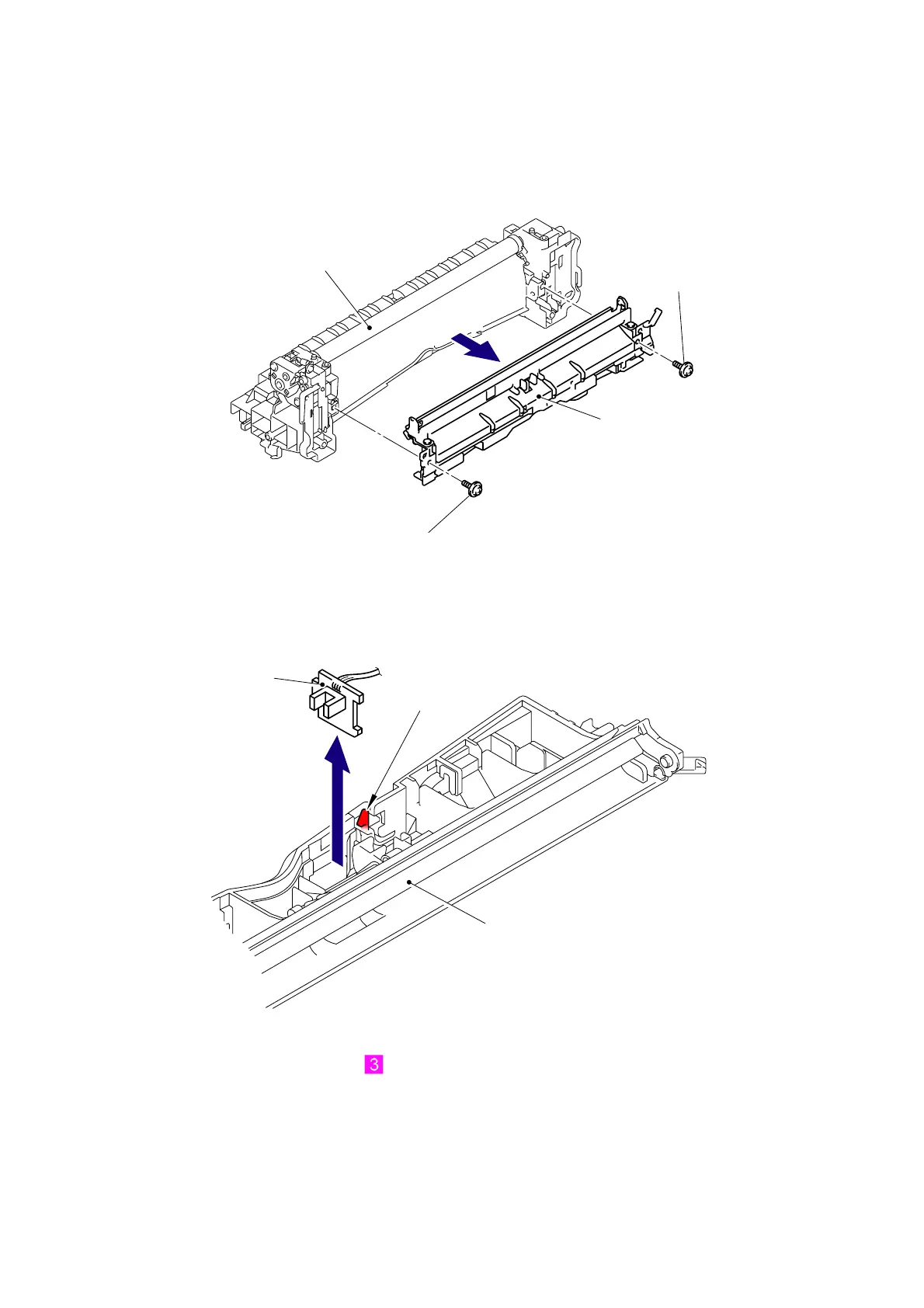

(1) Remove the two Taptite cup B M3x10 screws, and then remove the Front chute ASSY
from the Paper feed unit.
Fig. 5-189
(2) Release the Hook to remove the Manual sensor PCB ASSY from the Front chute ASSY.
Fig. 5-190
Harness routing: Refer to “ Manual Sensor PCB ASSY.”
Paper feed unit
Front chute ASSY
Taptite cup B M3x10
Taptite cup B M3x10
Hook
Front chute ASSY
Manual sensor PCB ASSY
