Brother MFC-9010CN Service Manual

5-155
Confidential
(5) Remove the Taptite cup B M3x8 screw from the Registration front/rear sensor PCB ASSY.
(6) Keep the shutter part of the Registration front actuator at the position shown in the figure below.
(7) Remove the Registration front/rear sensor PCB ASSY from the Paper feed frame.

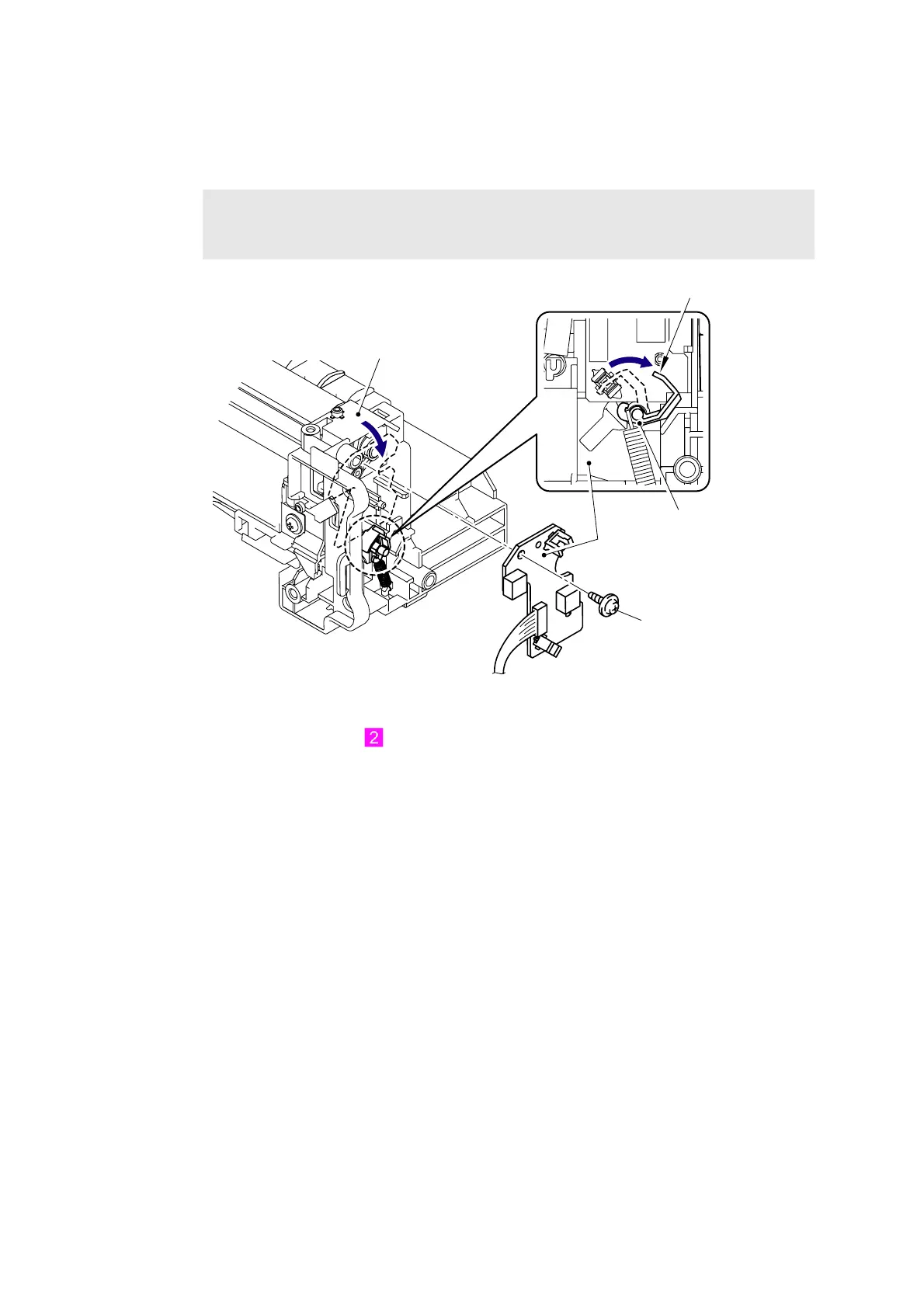

Fig. 5-188
Harness routing: Refer to “ Registration Front/Rear Sensor PCB ASSY.”
Note:
When removing the Registration front/rear sensor PCB ASSY, be careful not to
damage the Registration front actuator.
Registration front/rear sensor
Taptite cup B M3x8
PCB ASSY
Paper feed frame
Registration front actuator
Shutter part
