Brother MFC-9010CN Service Manual

5-45
Confidential
8.8 Fuser Unit

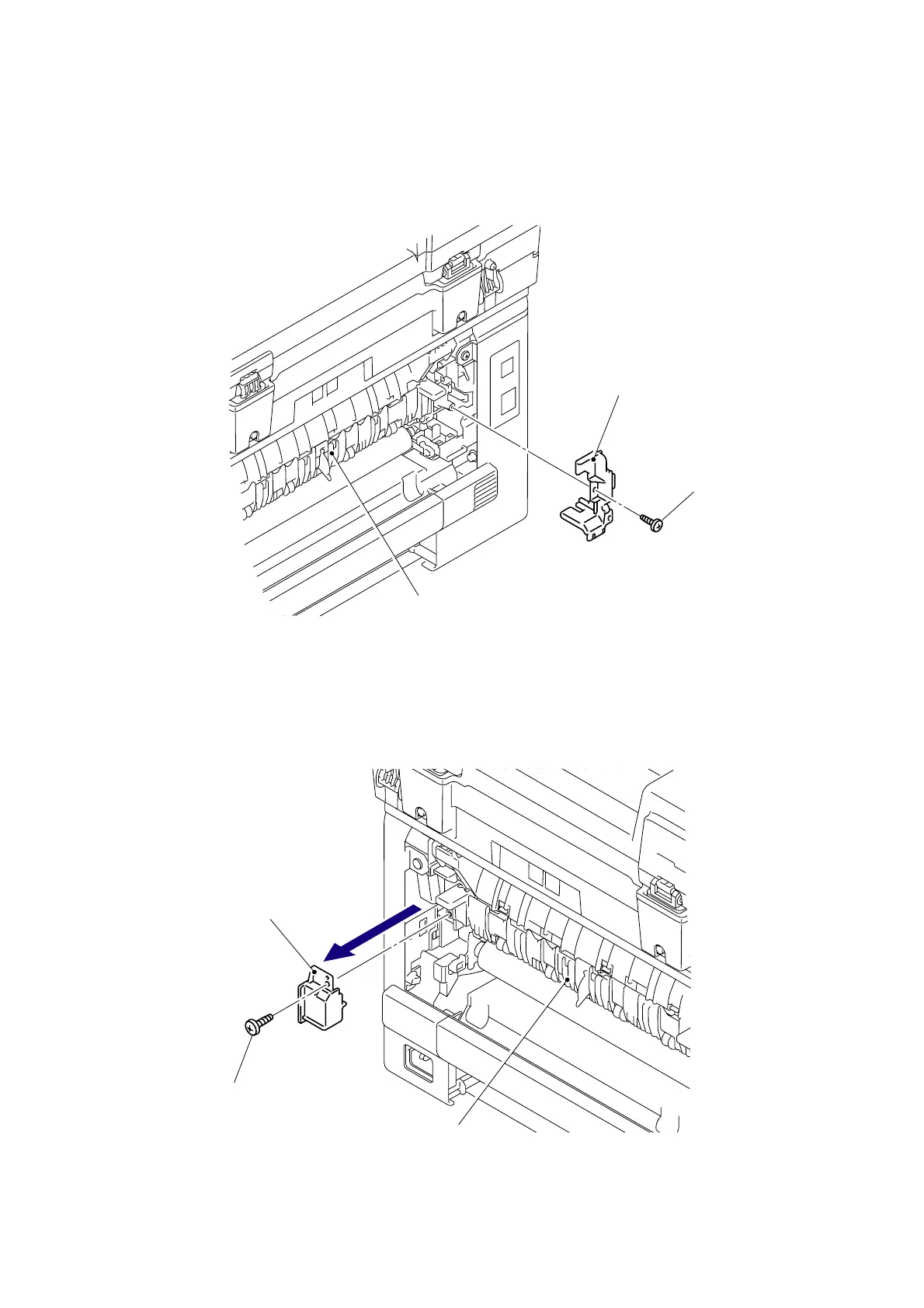

(1) Remove the Taptite bind B M3x12 screw, and then remove the Fuser cover L from the
Fuser unit.
Fig. 5-20
(2) Remove the Taptite bind B M3x12 screw, and then remove the Fuser cover R from the
Fuser unit.
Fig. 5-21
Fuser unit
Fuser cover L
Taptite bind B M3x12
<Back side>
Taptite bind B M3x12
Fuser unit
Fuser cover R
<Back side>
